What does the Size on <Figure> do?

[sturlath]

Am I misunderstanding how Size on <Figure> works? It provides a frame but images bigger than it expand beyond it.

If I have a bigger image than this 256x256 it goes beyond that range.

the code

<Row>
    <Column>
        <Fields>
            <Field ColumnSize="ColumnSize.Is12.OnDesktop">
                <Figure Size="FigureSize.Is256x256">
                    <FigureImage Source="@Image" />
                </Figure>
            </Field>
            <Field ColumnSize="ColumnSize.Is12.OnDesktop">
                <FileEdit Filter="image/*" Changed="@OnChanged" />
            </Field>
        </Fields>
    </Column>
</Row>

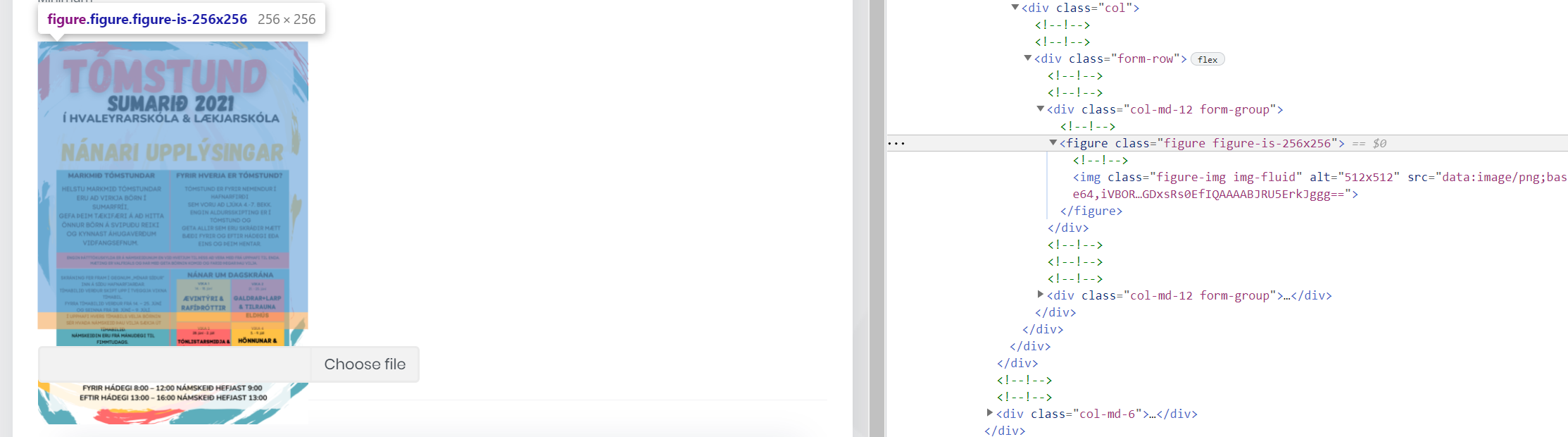

like this, where the figure is 256x256 but the image goes below

BUT
It works if I add Style=height:256px;width:256px to <FigureImage>

like this

<Figure Size="FigureSize.Is256x256">
    <FigureImage Source="@Image"  Style="height:256px;width:256px;object-fit:contain;" />
</Figure>

Sorry for these questions of mine but my CSS foo is not strong at all, but I try.. :-)

[stsrki]

It works by setting the Figure container to a set size, in pixels. I believe you still need to adjust the actual image size. Like you already did.

[sturlath]

I had tried earlier to set the size on Figure like this

<Figure Size="FigureSize.Is256x256" Style="width: 256px; height: 256px">

but that didn´t do anything.. I still had to add Style="width: 256px; height: 256px" to <FigureImage> also.

I still don't understand what FigureSize is supposed to be doing but that´s OK! I got this to work so just ploughing ahead :-)
