Feature implementation: show/hide map parts #1959

@dl3sdo

Description

@dl3sdo

As discussed in #1121 it would be beneficial to show and hide individual layers.
I implemented that feature, but used a simple GUI approach by just adding a map part dependent 'Hide current part' or 'Show current part' to the Map parts toolbar (as mentioned by @Symbian9 in #1121).

The visibility is stored in a new attribute:
<part name="Part1" visibility="100"><objects count="393">
<part name="Part2" visibility="0"><objects count="146">
Current versions of Mapper and Purple Pen do open these kind of files properly.
I used the values 0 and 100 in order to provide a migration path if somewhen later this becomes an true opacity value.

Example by using my favourite sample map and after having moved some objects to another map part:
ShowBothParts
The Map parts toolbar offers the 'Hide current part' as the current part is visible and thus can be hidden.

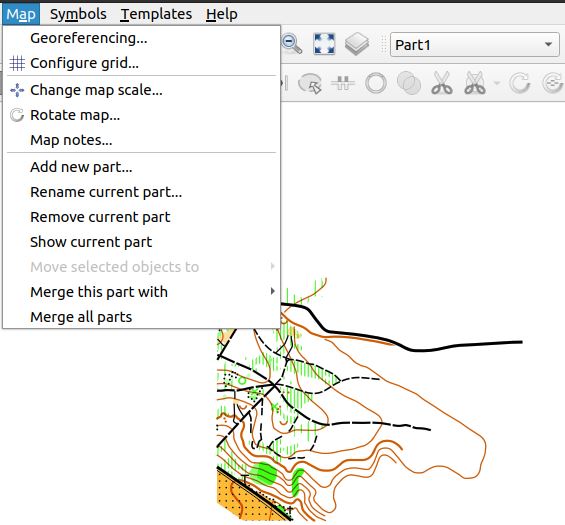

Map parts toolbar after part was hidden:
Part1Hidden

The change considers opening previous maps as well as considering the undo feature on map parts.
