ParseTree

[welford]

Hello,

I'm very much struggling to navigate the parsetree and would like some help with the following problem i have run into.

I have widget for rendering ruby elements it looks like this in a tiddler

<$r u="above">below</$r>

which is generally all well and good for normal use (see: example), but i am hitting problems with my implementation of this with lists:

for all tiddlers tagged fruit, make a ruby elements with tiddler name:

<$list filter="[tag[fruit]]">
<$r u=<<currentTiddler>>><<currentTiddler>></$r>
</$list>

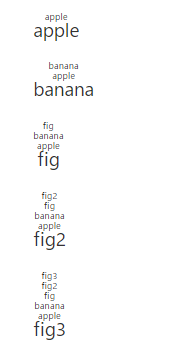

This however renders as:

Each subsequent item picks up previous elements rubys. I have uploaded an example here: http://welford.github.io/ruby.html

The code to render this is:

//Render this widget into the DOM
TWSRRuby.prototype.render = function(parent,nextSibling) {
	if(!("twsrruby" in this)){
		this.parentDomNode = parent;
		this.computeAttributes();
		var upper = this.getAttribute("u");
		var useAnswer = !this.hasAttribute("na");

		var ct = this.getVariable("currentTiddler");
		var tid = $tw.wiki.getTiddler(ct);
		var tags = tid ? tid.getFieldList("tags") : [];
		if(tags.indexOf("$:/tags/twsr/noRubyAnswer") > 0){
				useAnswer = false;
		}

		//var container = this.document.createElement("div");
		//Widget.prototype.render.call(this, container, null);
		//var wikiParser = $tw.wiki.parseText("text/vnd.tiddlywiki", "<ruby>"+container.innerHTML+"<rt>"+(useAnswer?"<$a s>":"")+upper+(useAnswer?"</$a>":"")+"</rt></ruby>", {parseAsInline: true});
		var wikiParser = $tw.wiki.parseText("text/vnd.tiddlywiki", "<ruby>twsr_replace_me<rt>"+(useAnswer?"<$a s>":"")+upper+(useAnswer?"</$a>":"")+"</rt></ruby>", {parseAsInline: true});
		var newTree = wikiParser.tree;
		var temp = newTree[0].children[1];  //copy rt element out
		newTree[0].children = this.parseTreeNode.children; //replace "twsr_replace_me" with original children in <$ruby>...<\$ruby>
		newTree[0].children.push(temp); // re append rt to
		this.parseTreeNode.children = newTree; //update children

		this.twsrruby = true;
	}
	Widget.prototype.render.call(this, parent, nextSibling);
};

I'm sure this is something to do with my misuse of the parseTreeNode of the containing tiddler - does anyone have pointers on how to achieve the correct behaviour here.

Thanks,
James

[welford]

In case it makes things clearer, i am trying to take this:

<$r u="above">below</$r>

then create the wiki parser object

var wikiParser = $tw.wiki.parseText("text/vnd.tiddlywiki", "<ruby>twsr_replace_me<rt>"+(useAnswer?"<$a s>":"")+upper+(useAnswer?"</$a>":"")+"</rt></ruby>", {parseAsInline: true});

which should look like this:

"<ruby>twsr_replace_me<rt>above</rt></ruby>"

then replace the twsr_replace_me section with whatever was between <$r> and </$r> e.g.

"<ruby>below<rt>above</rt></ruby>"

James

[saqimtiaz]

"belowabove"

I would set this up as a template that uses variables and the <$list/> widget for conditional behaviour. Then in the widget you posted above, don't bother with the parseTree and just set up the variables and transclude your template with $tw.makeTranscludeWidget()

[welford]

I don't follow what you mean Saq (sorry i am not very knowlegable on the insides of TW )

If i can keep the format: <$r u="above">below</$r> and change how it works in the widget to something simpler i am very willing :)

One requirement is that the sub text is able to have widgets applied to it. e.g. in this case the above section has the <$answer> widget set on it. but it could just as well be the below one.

http://welford.github.io/twsr.html#Answers%20without%20Scheduling

[welford]

I also feel like i am quite close to the correct answer here:

commenting out these lines:

// var temp = newTree[0].children[1];
// newTree[0].children = this.parseTreeNode.children;
// newTree[0].children.push(temp);

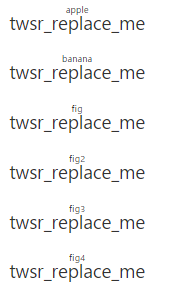

and the output is:

so it seems like parse tree stuff is just wrong.

[welford]

Went with this:

TWSRRuby.prototype.render = function(parent,nextSibling) {
	var oc = this.parseTreeNode.children;
	//if(!("twsrruby" in this)){
	if(true){
		this.parentDomNode = parent;
		this.computeAttributes();
		var upper = this.getAttribute("u");
		var useAnswer = !this.hasAttribute("na");

		var ct = this.getVariable("currentTiddler");
		var tid = $tw.wiki.getTiddler(ct);
		var tags = tid ? tid.getFieldList("tags") : [];
		if(tags.indexOf("$:/tags/twsr/noRubyAnswer") > 0){
				useAnswer = false;
		}

		var container = this.document.createElement("span");
		Widget.prototype.render.call(this, container, nextSibling);
		var wikiParser = $tw.wiki.parseText("text/vnd.tiddlywiki", "<ruby>"+container.innerHTML+"<rt>"+(useAnswer?"<$a s>":"")+upper+(useAnswer?"</$a>":"")+"</rt></ruby>", {parseAsInline: true});
		this.parseTreeNode.children = wikiParser.tree;
	}
	Widget.prototype.render.call(this, parent, nextSibling);
	this.parseTreeNode.children = oc;
};

1. store orginal children and revert
2. render widget into temp container, and insert that as a string into the wiki parser text string.
