Energy Added in HA Energy Dashboard

[siempie76]

Hi is there a way to get the energy added sensor in the Energy dashboard so I can get the associated cost when I charged the car at home?

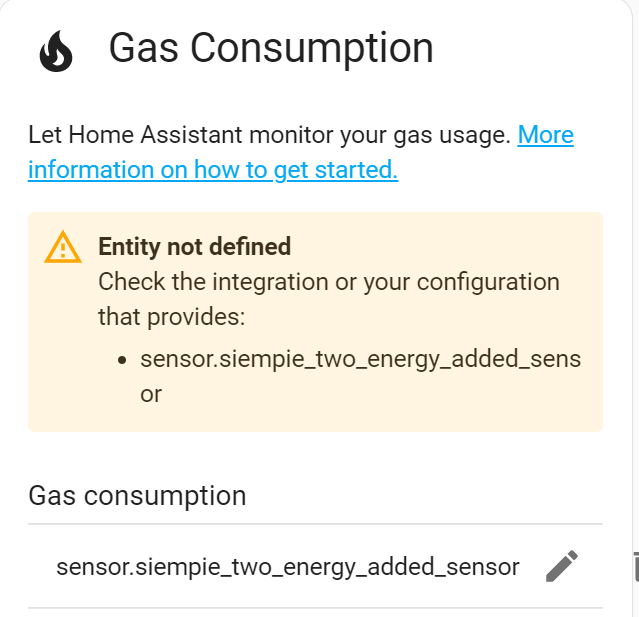

It gives me fault

[carleeno]

Gas consumption will not show electricity devices, if you try using "Individual devices" you'll see the right sensor. You're looking for sensor.<car>_energy_added (without the _sensor at the end).

I'm not sure why the old v2 sensor is still in the list, but you can ignore it. It seems to be a HA bug where the energy config shows deleted entities.

[siempie76]

it works in the "individual devices", but then I can't track the costs. A workaround is to put it in the gas consumption list so you can put a price entity with and don't mess up your true energy consumption & production. But somehow it doesn't show up there.

[carleeno]

Interesting, I noticed this link when trying to add a gas sensor: https://www.home-assistant.io/more-info/statistics/ which links further to long term statistics and the different configurations to use for energy sensors.

Looking at my logs, I see a warning for my car's energy sensor:

Entity sensor.mystique_energy_added from integration tesla_custom has state class total_increasing, but its state is not strictly increasing. Triggered by state 39.81 (39.83) with last_updated set to 2022-11-28T21:19:31.541802+00:00. Please report it to the custom integration author.

I suspect this is causing it to not be valid for long-term statistics. Can you see if you have same warning, or any other warnings regarding your energy_added sensor?

[siempie76]

yes I have the same. Statistics are not enabled or something.

I found this:
Hi! You can add any energy sensor there. If your energy sensor in available there to add, probably there is state_class: total_increasing missing on the entity.
Add this to customize.yaml:

sensor.your_entity_here:
state_class: total_increasing
friendly_name: FRIENDLY NAME
device_class: energy

here: https://community.home-assistant.io/t/energy-cost-for-the-individual-devices/334932/59

[carleeno]

Sorry for the late reply.
Looking at the integration code, we already set the state_class to total_increasing and device_class to energy.

I played around with the attributes and discovered that in order to get the entity to be available for gas consumption, I had to change device_class to gas, however that prevents it from being added elsewhere. Additionally removing the device_class attribute causes an "Unexpected device class" error for the entity as well, so unfortunately we have to leave it set to energy.

I think for your workaround to add it as gas, you will need to create a template sensor which reads from the energy added sensor, then you can set your own device_class to gas for the template sensor

[siempie76]

I updated to HA 12.0 and now it is working!! I can add the Energy Added to the gas consumption. Thanks for your reply's
