sankey network with too many nodes to display horizontally makes layout go crazy

[wlandau]

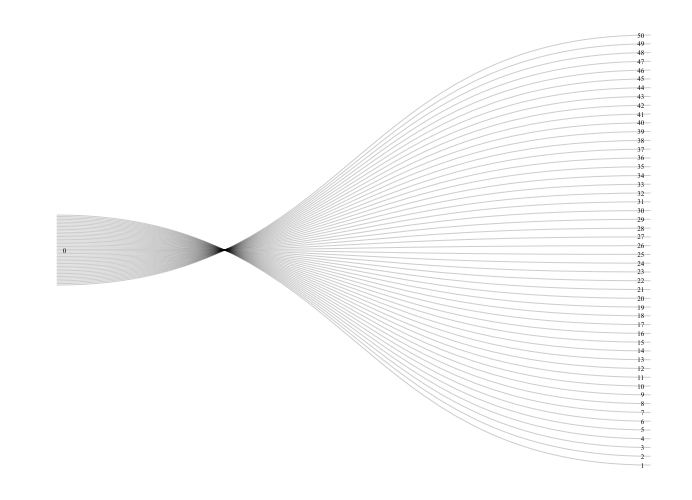

Sankey networks have been super useful in drake. However, I am noticing rendering problems when the network is super large: ropensci/drake#836.

library(networkD3)
library(tidyverse)
n <- 50
nodes <- data.frame(
  id = seq(0L, n)
)
edges <- data.frame(
  from = rep(0L, n),
  to = seq_len(n),
  value = 1L
)
sankeyNetwork(
  Links = edges,
  Nodes = nodes,
  Source = "from",
  Target = "to",
  Value = "value"
)

^{Created on 2019-04-16 by the reprex package (v0.2.1)}

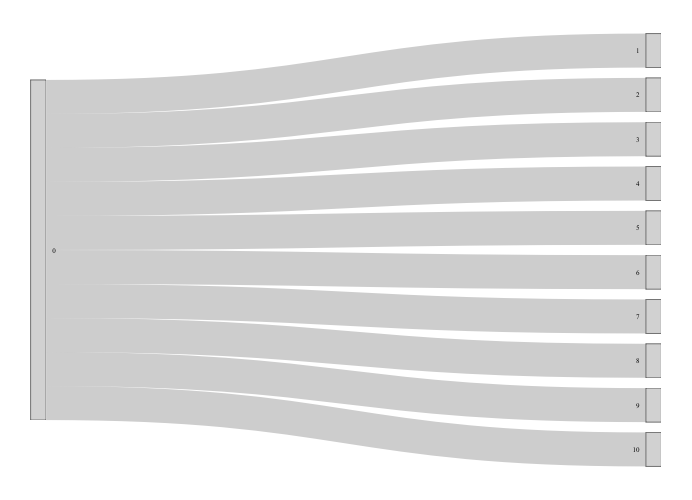

Is there a way to improve how the edges render on the left? The desired result is similar to the graph below.

library(networkD3)
library(tidyverse)
n <- 10
nodes <- data.frame(
  id = seq(0L, n)
)
edges <- data.frame(
  from = rep(0L, n),
  to = seq_len(n),
  value = 1L
)
sankeyNetwork(
  Links = edges,
  Nodes = nodes,
  Source = "from",
  Target = "to",
  Value = "value"
)

^{Created on 2019-04-16 by the reprex package (v0.2.1)}

[cjyetman]

Sort the data in the order you want it to display and set iterations = 0

[wlandau]

@cjyetman, would you elaborate on how to sort the data the above reprex? I was under the impression that the row order of Nodes and Links did not matter, and iterations = 0 by itself does not remove the rendering issue.

[cjyetman]

Iterations =0 effectively disables the algorithm which automatically determines the node placement, and the nodes will be placed in the order that they appear in the Nodes dataframe.

[wlandau]

How would you recommend I determine node order? How do different node orders affect the positions of the edges?

I am developing a reusable tool on top of networkD3, and I cannot predict in advance the graphs it will need to render. So in my case, finding an optimal node order would need to be fully automated.

[cjyetman]

The desired order of nodes is entirely up to you, and likely application dependent, so I can’t make a recommendation there. I understood from your original message that you don’t want the edges to cross over each other as they do in the first image and do not in the second. The underlying JavaScript runs an iterative algorithm to achieve an “optimal” layout, starting with the node positions in the order they appear in the data, then iteratively adjusting their positions to approach an “optimal” layout. That is actually the primary purpose of the function. If you don’t want that algorithm to adjust the positions, then set iterations to 0 and what you see in your first image will not occur.

[cjyetman]

Sorry, now that I've had a chance to look at your images on a larger screen, I can see that the problem is not exactly what I thought it was. I will get back to you with a solution shortly.

[cjyetman]

Essentially what seems to be happening is that when there is not enough horizontal space to plot the nodes in a given x-position/column (in this case, the right column of nodes), then the layout goes bonkers. The easy fix is to increase the horizontal size of your viewer and refresh it, but that's obviously not the most ideal solution. My guess is that a better solution will take a good bit of work, so I wouldn't expect a quick resolution unless someone jumps in with significant time and experience.
