Shield:
This work is licensed under a Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International License.
If somebody wants to support me for upcoming projects :)
- PayPal:
- Amazon Giftcard: https://www.amazon.de/Amazon-Gutschein-per-E-Mail-Amazon/dp/B0054PDOV8 - [email protected]

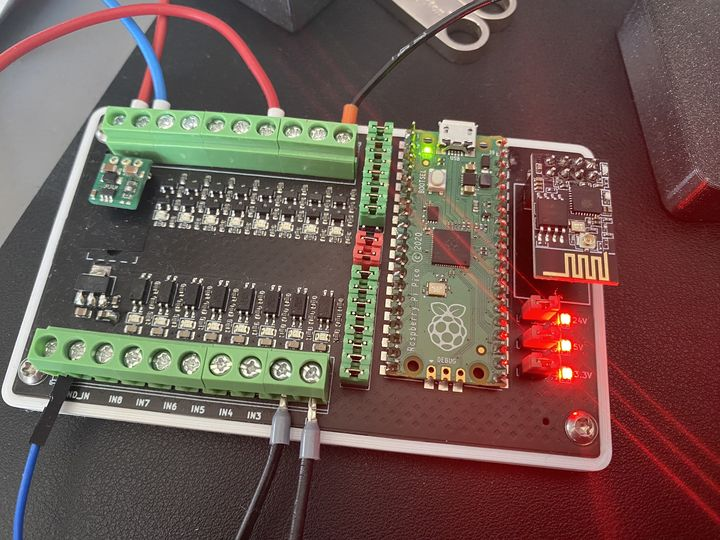

It's a trigger device for multiple devices and input counter.
- Raspberry Pi Pico
- 24V power input
- 8 x optocoupler input
- 8 x high side switch 24V 500mA output
- optional Wifi interface instead of USB connection (ESP32C3)
