ForgeCAD

Code-first parametric CAD for the browser and CLI.

ForgeCAD combines a JavaScript/TypeScript modeling API, live parameters, constraints, and assembly tooling on top of the Manifold WASM geometry kernel.

TypeScript is the file format. The browser is the CAD system.

API Reference • CLI Docs • Vision • Examples

Start Here

npm install
npm run dev

Then open http://localhost:5173.

npm run dev opens the ./examples project by default, so you can edit and save files immediately.

Why ForgeCAD

Most geometry kernels are powerful but low-level. ForgeCAD adds the missing CAD layer:

Constraint-driven sketch workflows
Named entities and topology-aware operations
Parametric design via param(...) sliders
Multi-file composition with importPart(...) and importSketch(...)
Assembly + mechanism modeling with joints, sweeps, and collision checks
Script-authored BOM + dimension annotations for report export

The result is a CAD workflow that is version-control friendly, AI-editable, and still practical for real mechanical modeling.

Seamless AI integration

ForgeCAD is built to work cleanly with coding agents. Your CAD models are plain code, and the repository already includes the context agents need to be useful immediately:

docs/permanent/ explains the modeling API and workflows
examples/api/ provides concrete model patterns to copy and adapt
browser + CLI run the same engine, so AI-generated scripts behave consistently

Instructions for AI model generation

When an AI model is asked to generate ForgeCAD models, require this workflow:

Read all files in docs/permanent/API/ first.
Read all files in examples/api/ next.
Only then generate or modify .forge.js / .sketch.js models.

Use this instruction in prompts to avoid missing API capabilities or producing invalid model code:

Before generating any ForgeCAD model code, read every file in docs/permanent/API/ and examples/api/ for full context. Then generate a runnable model using only documented ForgeCAD APIs and patterns from those files.

Example AI workflows:

aider --read docs/permanent/ --read examples/api/ --model openrouter/google/gemini-3-flash-preview --reasoning-effort xhigh
kiro-cli chat
codex

This lets you iterate with AI on real .forge.js model files without custom glue code or one-off prompt scaffolding.

LLM Benchmarks

Latest benchmark iterations from ForgeCADBenchmark/results/* (version_{n}.forge.js with highest n per run folder).

model name	prompt	GIF

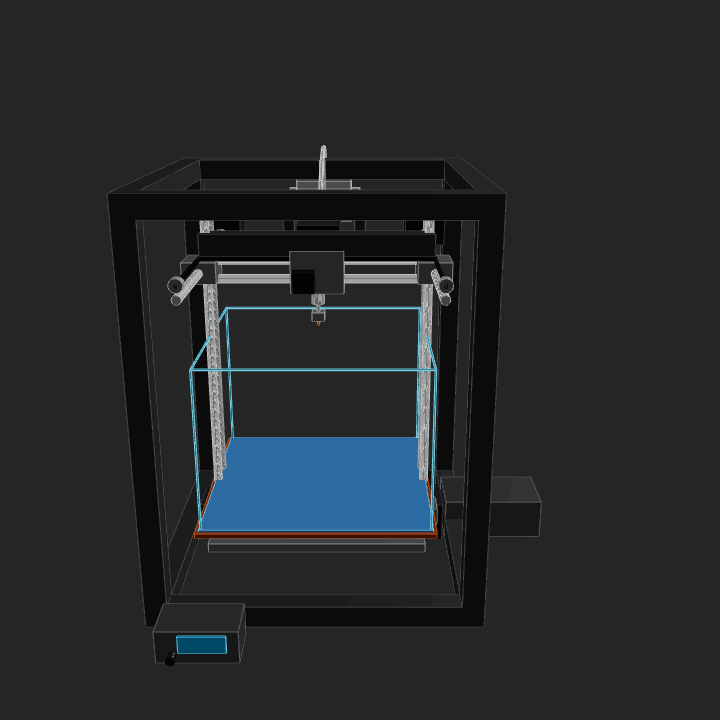

`3dprinter-gpt52codex` _{2026-02-13 14-36-06 • v2}	Make a detailed home 3D printer, showing the internal details of how it should work. Add some params for controlling positions, etc.

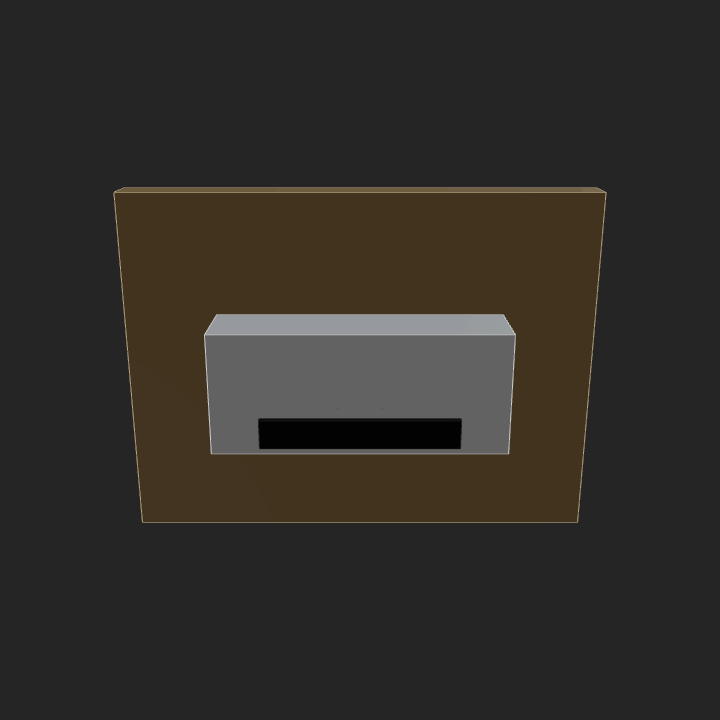

`amazon-nova-2-lite-v1` _{2026-02-13 00-15-44 • v1}	Make a home AC unit, showing both pieces on different sides of the wall (inside and outside). The external piece should have a fan positioned on its external face vertically. Implement whatever features/methods you are missing in the script itself for your convenience. Use the simpler primitives when unsure.
`amazon-nova-premier-v1` _{2026-02-13 00-36-50 • v1}	Make a home AC unit, showing both pieces on different sides of the wall (inside and outside). The external piece should have a fan positioned on its external face vertically. Implement whatever features/methods you are missing in the script itself for your convenience. Use the simpler primitives when unsure.	GIF generation failed (script runtime error).
`aurora_alpha` _{2026-02-12 15-19-30 • v2}	Make a home AC unit, showing both pieces on different sides of the wall (inside and outside). Implement whatever features/methods you are missing in the script itself for your convenience. Use the simpler primitives when unsure.	GIF generation failed (script runtime error).

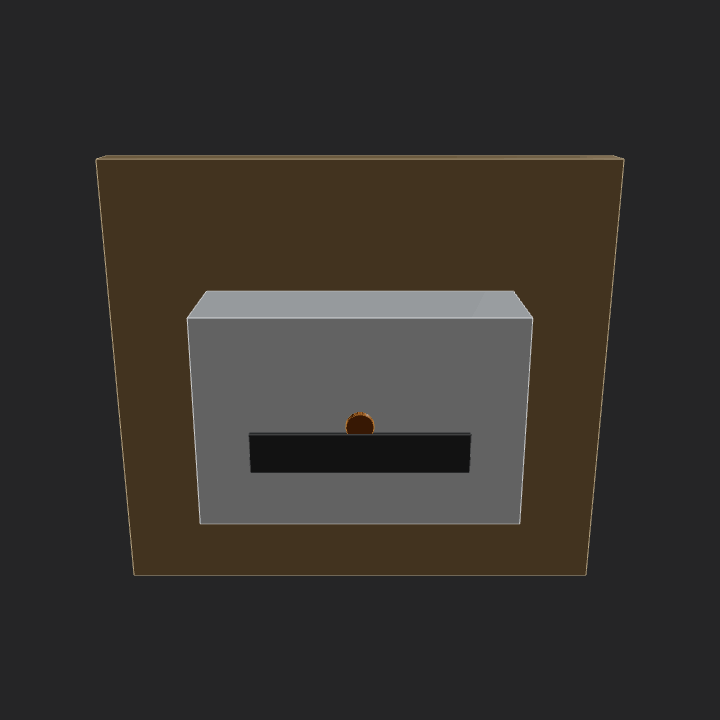

`bytedance-seed-seed-1.6` _{2026-02-13 00-14-02 • v3}	Make a home AC unit, showing both pieces on different sides of the wall (inside and outside). The external piece should have a fan positioned on its external face vertically. Implement whatever features/methods you are missing in the script itself for your convenience. Use the simpler primitives when unsure.

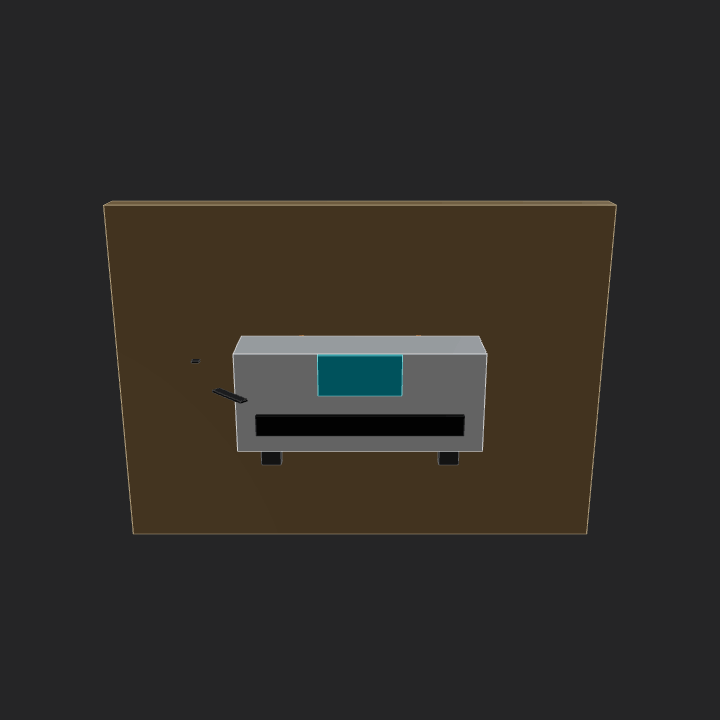

`deepseek-deepseek-v3.2` _{2026-02-13 00-30-04 • v3}	Make a home AC unit, showing both pieces on different sides of the wall (inside and outside). The external piece should have a fan positioned on its external face vertically. Implement whatever features/methods you are missing in the script itself for your convenience. Use the simpler primitives when unsure.

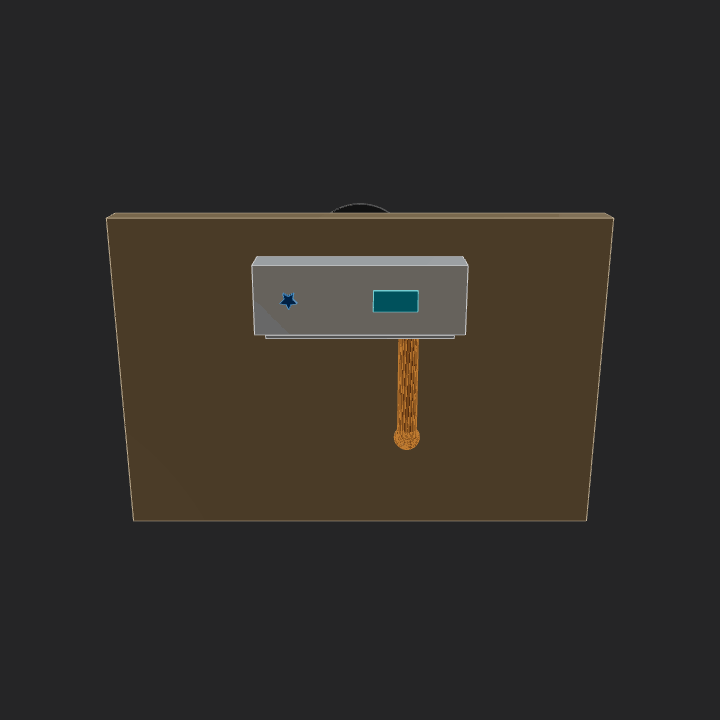

`gemini3flash` _{2026-02-12 23-53-27 • v5}	Make a home AC unit, showing both pieces on different sides of the wall (inside and outside). The external piece should have a fan positioned on its external face vertically. Implement whatever features/methods you are missing in the script itself for your convenience. Use the simpler primitives when unsure.

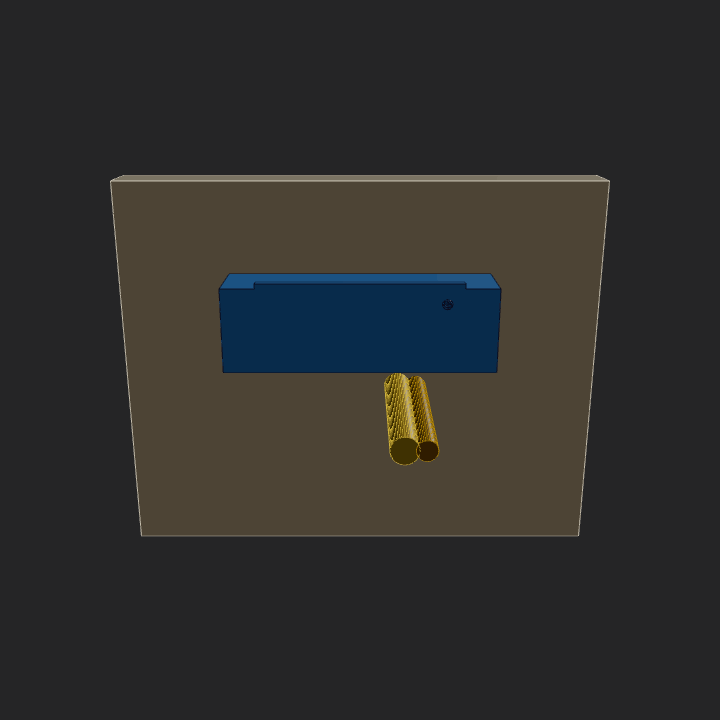

`glm5` _{2026-02-12 14-58-52 • v3}	Make a home AC unit, showing both pieces on different sides of the wall (inside and outside). Implement whatever features/methods you are missing in the script itself for your convenience. Use the simpler primitives when unsure.

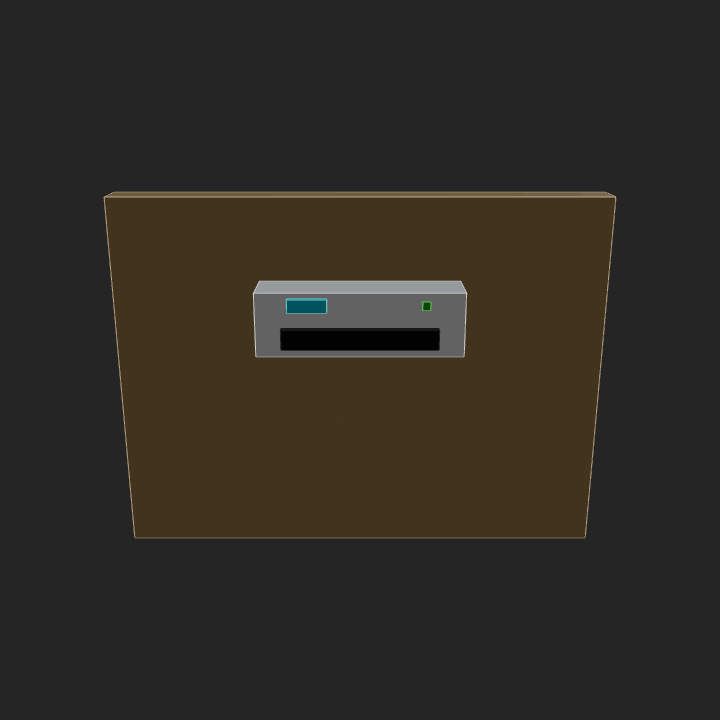

`glm5` _{2026-02-12 23-04-12 • v4}	Make a home AC unit, showing both pieces on different sides of the wall (inside and outside). The external piece should have a fan positioned on its external face vertically. Implement whatever features/methods you are missing in the script itself for your convenience. Use the simpler primitives when unsure.
`google-gemini-3-pro-preview` _{2026-02-13 00-36-12 • v2}	Make a home AC unit, showing both pieces on different sides of the wall (inside and outside). The external piece should have a fan positioned on its external face vertically. Implement whatever features/methods you are missing in the script itself for your convenience. Use the simpler primitives when unsure.

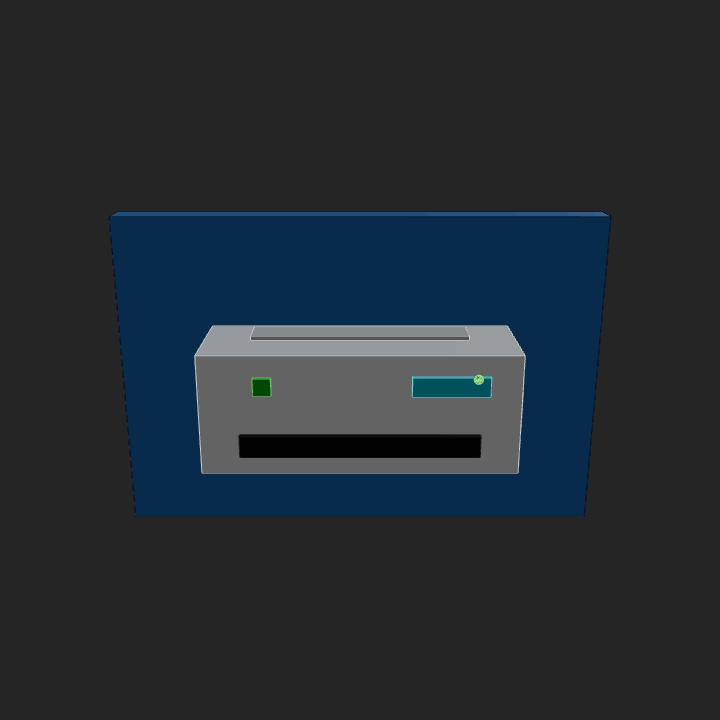

`gpt52codex` _{2026-02-13 00-04-30 • v2}	Make a home AC unit, showing both pieces on different sides of the wall (inside and outside). The external piece should have a fan positioned on its external face vertically. Implement whatever features/methods you are missing in the script itself for your convenience. Use the simpler primitives when unsure.

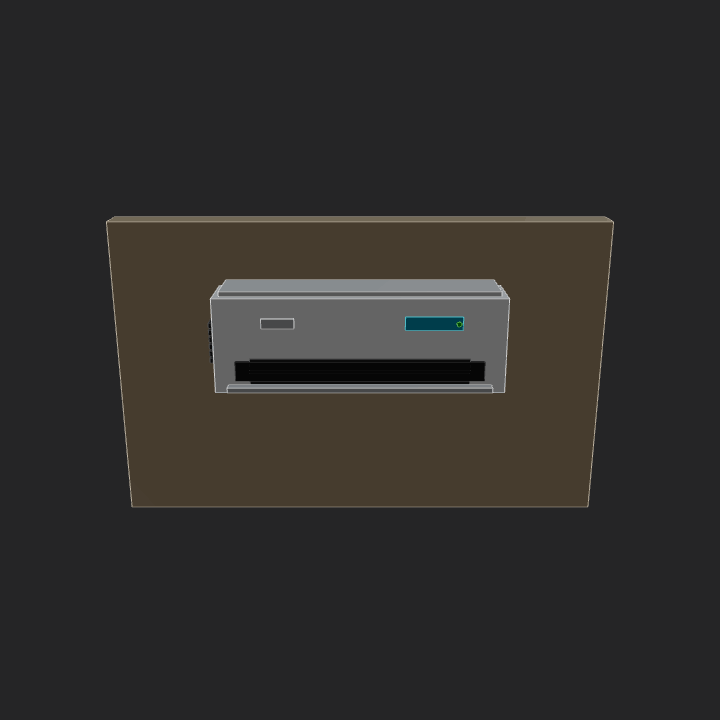

`gpt52codex` _{2026-02-13 12-40-31 • v2}	Make a home AC unit, showing both pieces on different sides of the wall (inside and outside). The external piece should have a fan positioned on its external face vertically. Include as many details as you safely can. Implement whatever features/methods you are missing in the script itself for your convenience. Use the simpler primitives when unsure.
`haiku_4_5` _{2026-02-12 21-49-51 • v1}	Make a home AC unit, showing both pieces on different sides of the wall (inside and outside). Implement whatever features/methods you are missing in the script itself for your convenience. Use the simpler primitives when unsure.

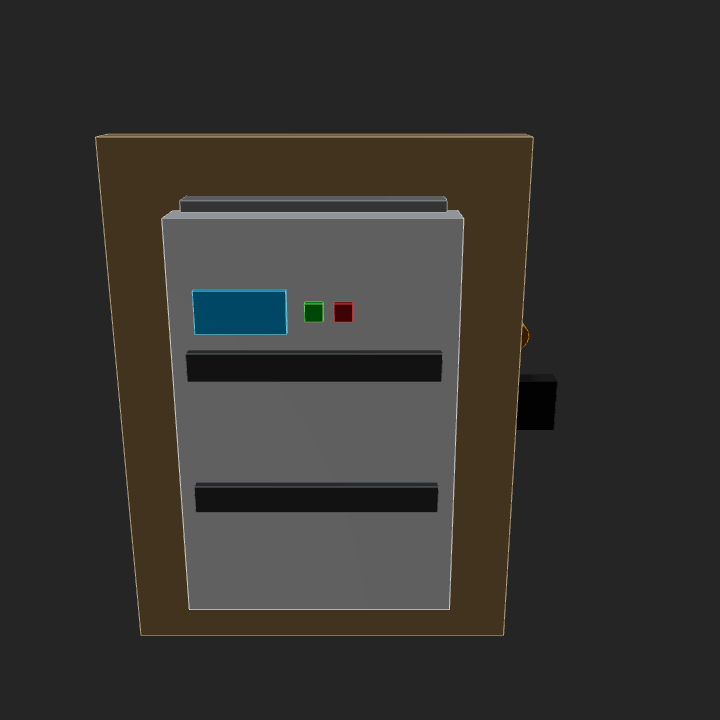

`haiku_4_5` _{2026-02-12 21-54-22 • v3}	Make a home AC unit, showing both pieces on different sides of the wall (inside and outside). Implement whatever features/methods you are missing in the script itself for your convenience. Use the simpler primitives when unsure.

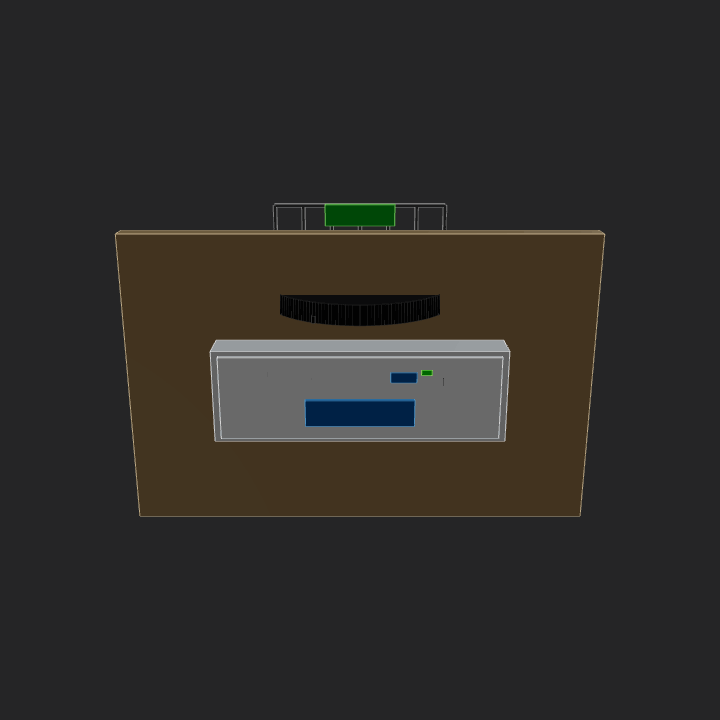

`kimi25` _{2026-02-12 13-50-22 • v4}	Make a home AC unit, showing both pieces on different sides of the wall (inside and outside). Implement whatever features/methods you are missing in the script itself for your convenience. Use the simpler primitives when unsure.

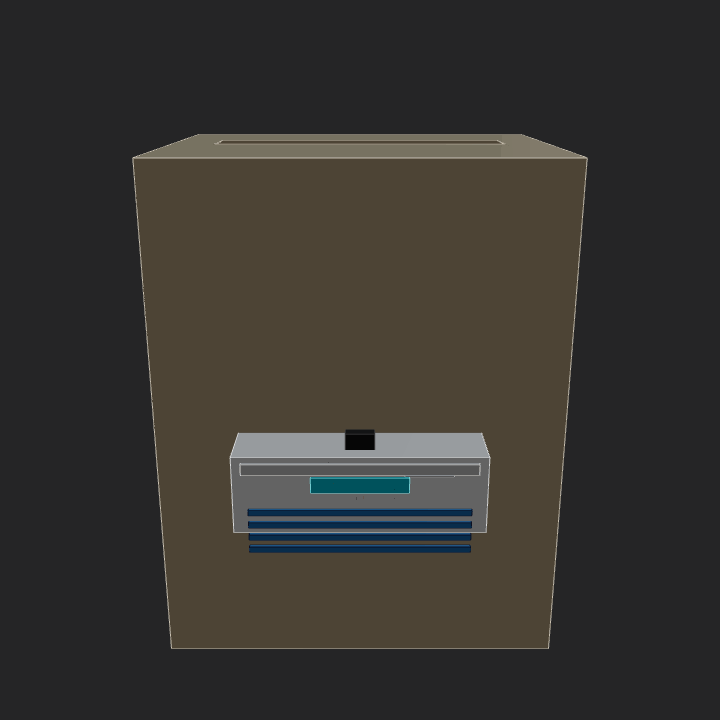

`kimi25` _{2026-02-12 14-58-53 • v3}	Make a home AC unit, showing both pieces on different sides of the wall (inside and outside). Implement whatever features/methods you are missing in the script itself for your convenience. Use the simpler primitives when unsure.

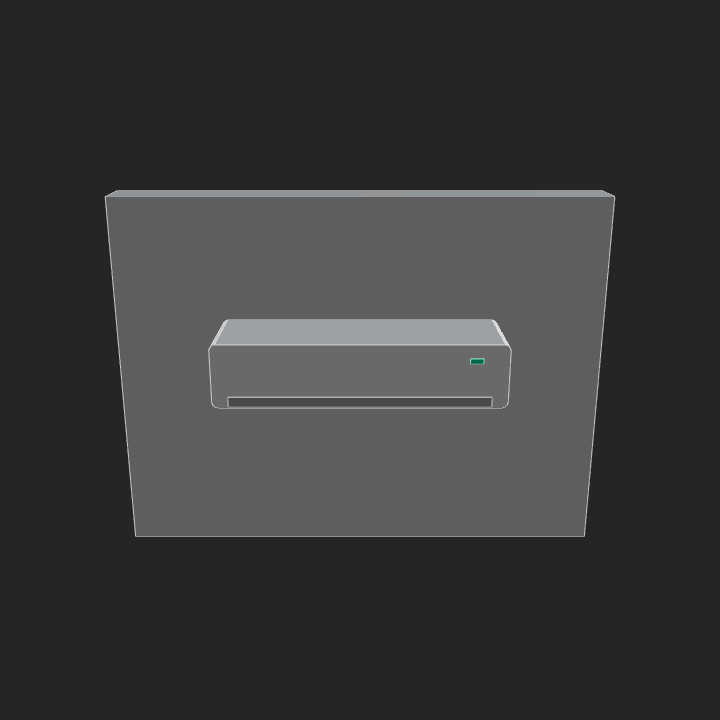

`manual-gemini-flash` _{2026-02-12 23-44-23 • v3}	Make a home AC unit, showing both pieces on different sides of the wall (inside and outside). The external piece should have a fan positioned on its external face vertically. Implement whatever features/methods you are missing in the script itself for your convenience. Use the simpler primitives when unsure.

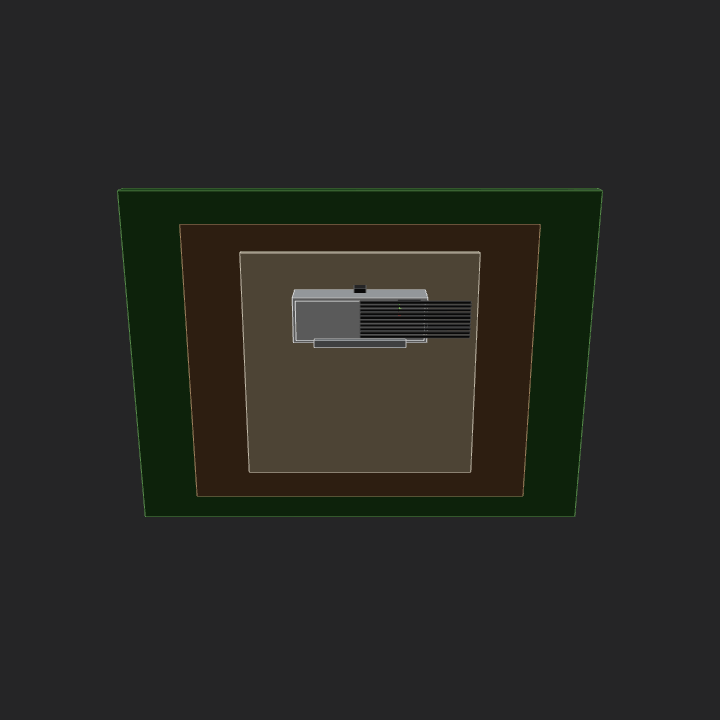

`minimax25` _{2026-02-12 14-32-24 • v5}	Make a home AC unit, showing both pieces on different sides of the wall (inside and outside). Implement whatever features/methods you are missing in the script itself for your convenience. Use the simpler primitives when unsure.
`minimax25` _{2026-02-12 23-05-17 • v3}	Make a home AC unit, showing both pieces on different sides of the wall (inside and outside). The external piece should have a fan positioned on its external face vertically. Implement whatever features/methods you are missing in the script itself for your convenience. Use the simpler primitives when unsure.

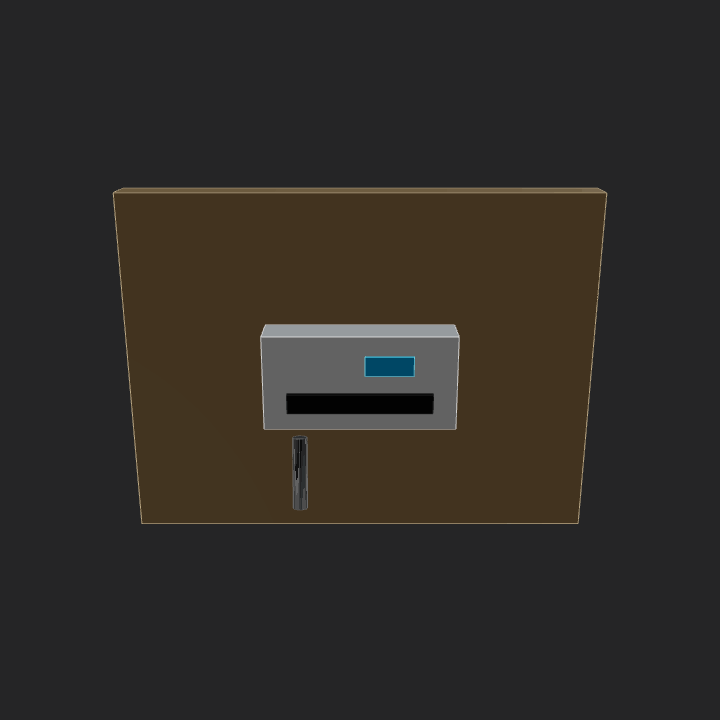

`minimax25` _{2026-02-13 12-37-52 • v4}	Make a home AC unit, showing both pieces on different sides of the wall (inside and outside). The external piece should have a fan positioned on its external face vertically. Implement whatever features/methods you are missing in the script itself for your convenience. Use the simpler primitives when unsure.

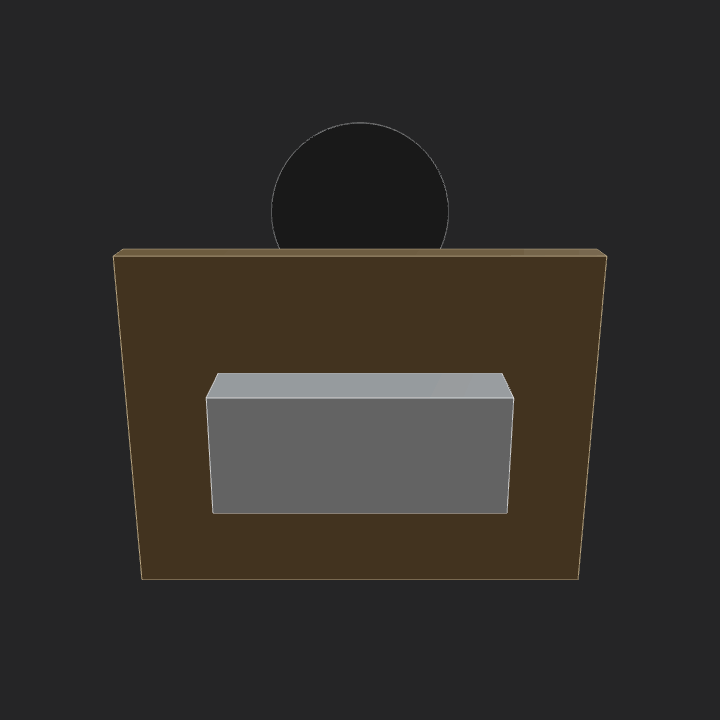

`openai-gpt-oss-120b` _{2026-02-13 00-38-15 • v1}	Make a home AC unit, showing both pieces on different sides of the wall (inside and outside). The external piece should have a fan positioned on its external face vertically. Implement whatever features/methods you are missing in the script itself for your convenience. Use the simpler primitives when unsure.

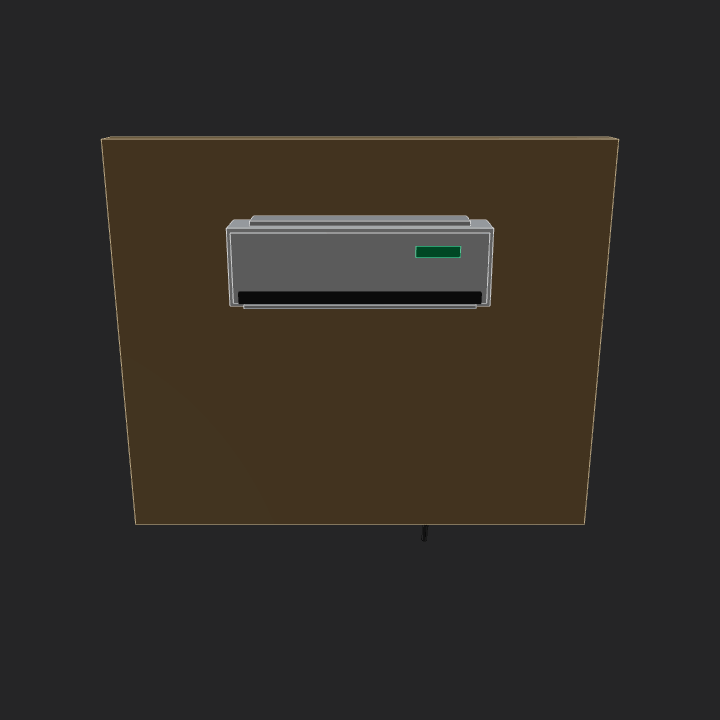

`opus_4_6` _{2026-02-13 11-47-54 • v5}	Make a home AC unit, showing both pieces on different sides of the wall (inside and outside). The external piece should have a fan positioned on its external face vertically. Implement whatever features/methods you are missing in the script itself for your convenience. Use the simpler primitives when unsure.

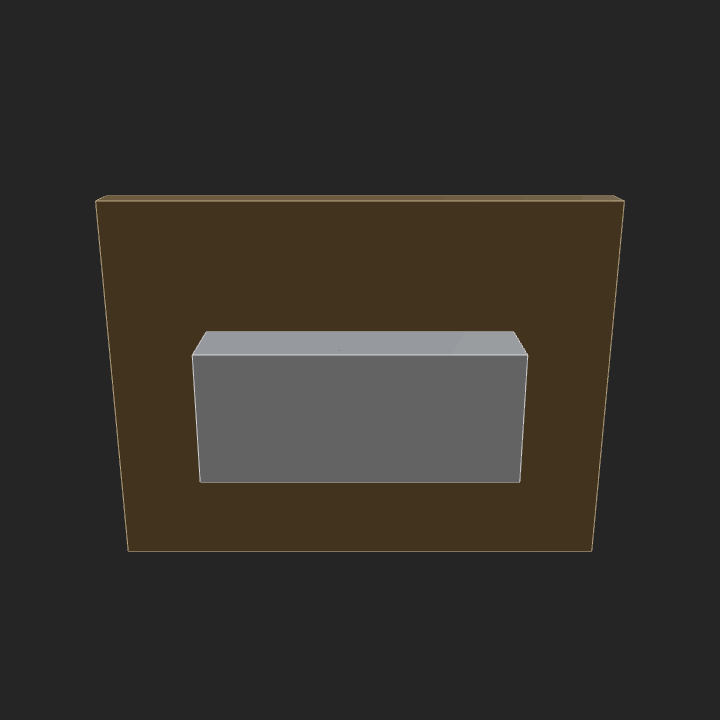

`prime-intellect-intellect-3` _{2026-02-13 00-31-28 • v1}	Make a home AC unit, showing both pieces on different sides of the wall (inside and outside). The external piece should have a fan positioned on its external face vertically. Implement whatever features/methods you are missing in the script itself for your convenience. Use the simpler primitives when unsure.

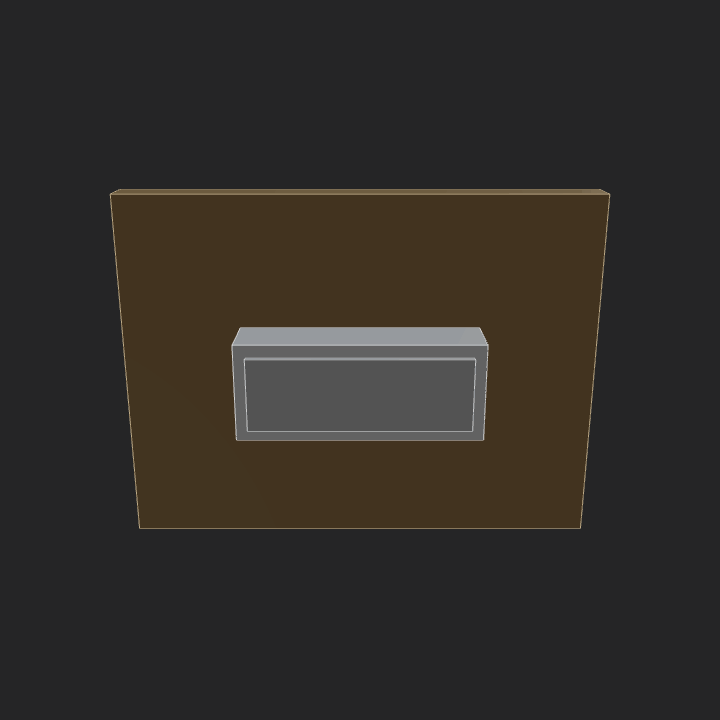

`qwen3.5-397b-a17b` _{2026-02-16 14-29-22 • v3}	Make a home AC unit, showing both pieces on different sides of the wall (inside and outside). The external piece should have a fan positioned on its external face vertically. Implement whatever features/methods you are missing in the script itself for your convenience. Use the simpler primitives when unsure.

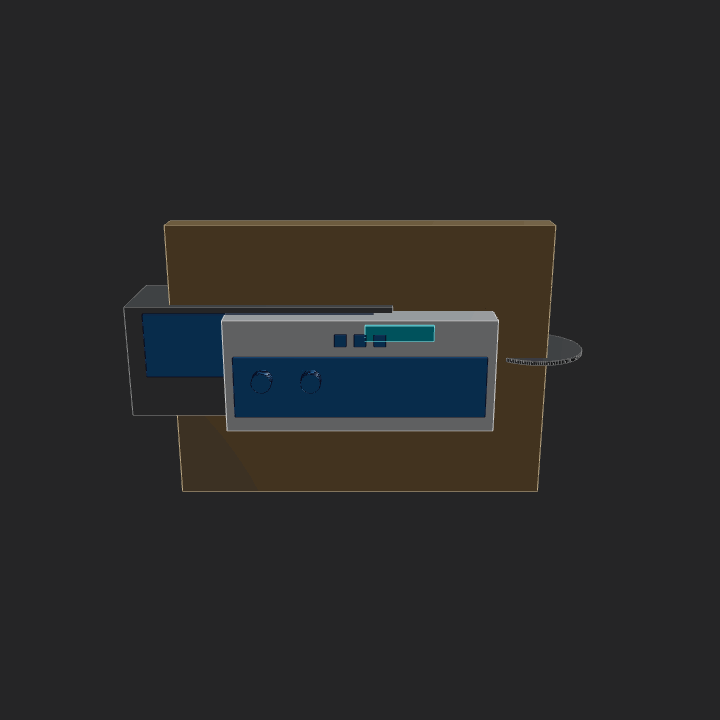

`qwen3maxthinking` _{2026-02-12 23-16-41 • v2}	Make a home AC unit, showing both pieces on different sides of the wall (inside and outside). The external piece should have a fan positioned on its external face vertically. Implement whatever features/methods you are missing in the script itself for your convenience. Use the simpler primitives when unsure.

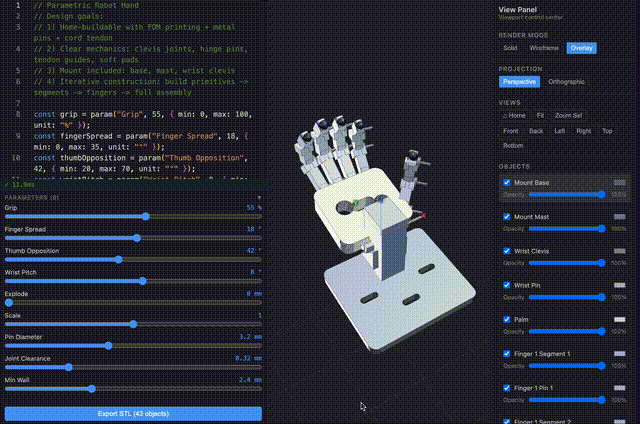

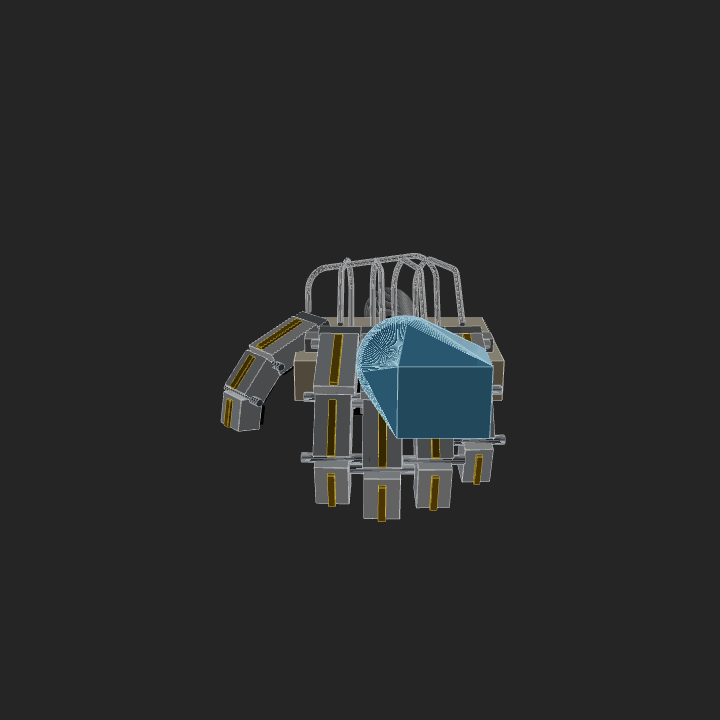

`robot-hand-gpt52codex` _{2026-02-14 00-51-41 • v1}	Make a fully functional robot hand. Should be easy to build, maybe even at home with some good tools. Show all the mechanics. Should be able to hold arbitrary shape objects. Don't be a perfectionist, but be an artist and an engineer. As this is a complex task, break it down to simpler ones, solve them, combine, iterate.
`sonnet_4_5` _{2026-02-12 21-58-26 • v3}	Make a home AC unit, showing both pieces on different sides of the wall (inside and outside). Implement whatever features/methods you are missing in the script itself for your convenience. Use the simpler primitives when unsure.

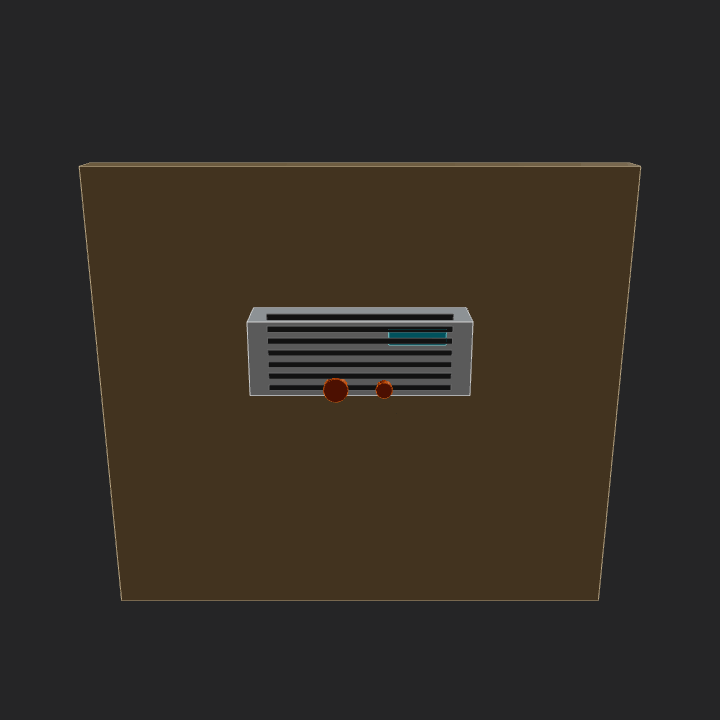

`x-ai-grok-4.1-fast` _{2026-02-13 00-26-36 • v2}	Make a home AC unit, showing both pieces on different sides of the wall (inside and outside). The external piece should have a fan positioned on its external face vertically. Implement whatever features/methods you are missing in the script itself for your convenience. Use the simpler primitives when unsure.

Highlights

Browser CAD IDE with Monaco editor + real-time 3D viewport
2D sketch API: primitives, path builder, booleans, transforms, offsets, constraints
3D API: booleans, transforms, hull, level set/SDF workflows, cut planes
Named shapes, face/edge references, fillet/chamfer helpers
Reusable part library (lib) with fasteners, tubes, brackets, threads, patterns, exploded-view helpers
Assembly graph API with revolute/prismatic/fixed joints
Drawing/report pipeline: dimensions, BOM, multi-view PDF generation
CLI tools that run the same engine as the browser runtime

Quick Start

Prerequisites

Node.js 20+ (recommended)
npm
Chrome/Chromium installed (only required for PNG rendering CLI)

Install and run

npm install
npm run dev

Open http://localhost:5173.

This starts ForgeCAD with the ./examples folder loaded.

Open your own project folder

npm run open -- /path/to/your/project

Use -- before the path. ForgeCAD loads .forge.js and .sketch.js files from that folder, with disk-backed save.

Blank scratch mode (optional)

npm run dev:blank

Starts ForgeCAD without a project folder (single in-memory scratch file).

Your first script

Drop this into a .forge.js file:

const width = param("Width", 120, { min: 60, max: 220, unit: "mm" });
const depth = param("Depth", 80, { min: 40, max: 160, unit: "mm" });
const height = param("Height", 12, { min: 6, max: 40, unit: "mm" });

const base = roundedRect(width, depth, 10).extrude(height).color("#5f87c6");
const pocket = roundedRect(width - 24, depth - 24, 8)
  .extrude(height - 3)
  .translate(12, 12, 3);

const part = base.subtract(pocket);

dim([0, 0, 0], [width, 0, 0], { label: "Width" });
dim([0, 0, 0], [0, depth, 0], { label: "Depth", offset: 14 });
cutPlane("Center Section", [1, 0, 0], width / 2);

return part;

Notes:

The Forge API is globally available inside scripts (no imports required).
param(...) values become live sliders in the UI.
Return a Shape, Sketch, ShapeGroup, array of objects, or assembly scene.

CLI Workflows

All CLI tools use the same runtime as the browser (src/forge/headless.ts), so behavior is consistent across environments.

Task	Command
Validate a script	`npm run test-run -- examples/cup.forge.js`
Render PNG views	`npm run render -- examples/cup.forge.js`
Render orbit GIF (solid + wireframe)	`npm run gif -- examples/cup.forge.js`
Export sketch SVG	`npm run svg -- examples/frame.sketch.js`
Generate report PDF	`npm run report -- examples/cup.forge.js`
Parameter robustness scan	`npm run param-check -- examples/shoe-rack-doors.forge.js --samples 10`
Transform invariants	`npm run check:transforms`
Dimension propagation invariants	`npm run check:dimensions`

CLI details

render outputs multi-angle PNGs (front, side, top, iso) by default.
gif outputs a single orbit animation with a full solid pass, then full wireframe pass.
svg runs fully in Node (no browser/Puppeteer).
report generates searchable-text PDF pages (overview, components, BOM, dimensions).
param-check samples parameter ranges and reports runtime errors, degenerates, and new collisions.

Start with these examples

examples/api/sketch-basics.forge.js: sketch primitives, offset, path, extrude
examples/api/boolean-operations.forge.js: union/difference/intersection behavior
examples/api/assembly-mechanism.forge.js: joints, sweeps, collisions, BOM
examples/api/dimensioned-bracket.forge.js: dimension annotations
examples/api/bill-of-materials.forge.js: script-authored BOM aggregation
examples/api/exploded-view.forge.js: exploded layouts + cut-plane visualization

Core architecture

User script (.forge.js / .sketch.js)
        |
        v
ForgeCAD modeling layer
  - params, constraints, sketch entities
  - topology-aware operations
  - assembly + reporting helpers
        |
        v
Manifold WASM geometry kernel
  - booleans, extrusion, mesh operations
        |
        +--> Browser app (Monaco + Three.js)
        +--> CLI tools (headless runtime)

Project status

ForgeCAD is under active development. The API is usable today, but some advanced CAD features are still being built for deeper parity with mature desktop CAD tooling.

Planned/ongoing areas include:

richer sketch editing primitives (fillets, arc-first workflows, trim/extend)
shell and advanced feature operations
sketch-on-face and higher-level surfacing/transition tools
broader mechanical modeling ergonomics

See Vision for the longer-term direction.

Contributing

Contributions are welcome. Good first contributions:

API docs improvements in docs/permanent/API/
focused examples in examples/api/
runtime and CLI correctness checks

Suggested local validation before opening a PR:

npm run test-run -- examples/cup.forge.js
npm run check:transforms
npm run check:dimensions

If your change is parametric-heavy, also run:

npm run param-check -- path/to/your-example.forge.js --samples 10

Additional docs

API: docs/permanent/API/API.md
CLI: docs/permanent/CLI.md
Vision: docs/permanent/VISION.md
Coding notes: docs/permanent/CODING.md
Benchmark maintenance SOP: docs/processes/README_BENCHMARK_SOP.md

License

Business Source License 1.1 — free for non-production use. Converts to MIT on 2030-02-18.
