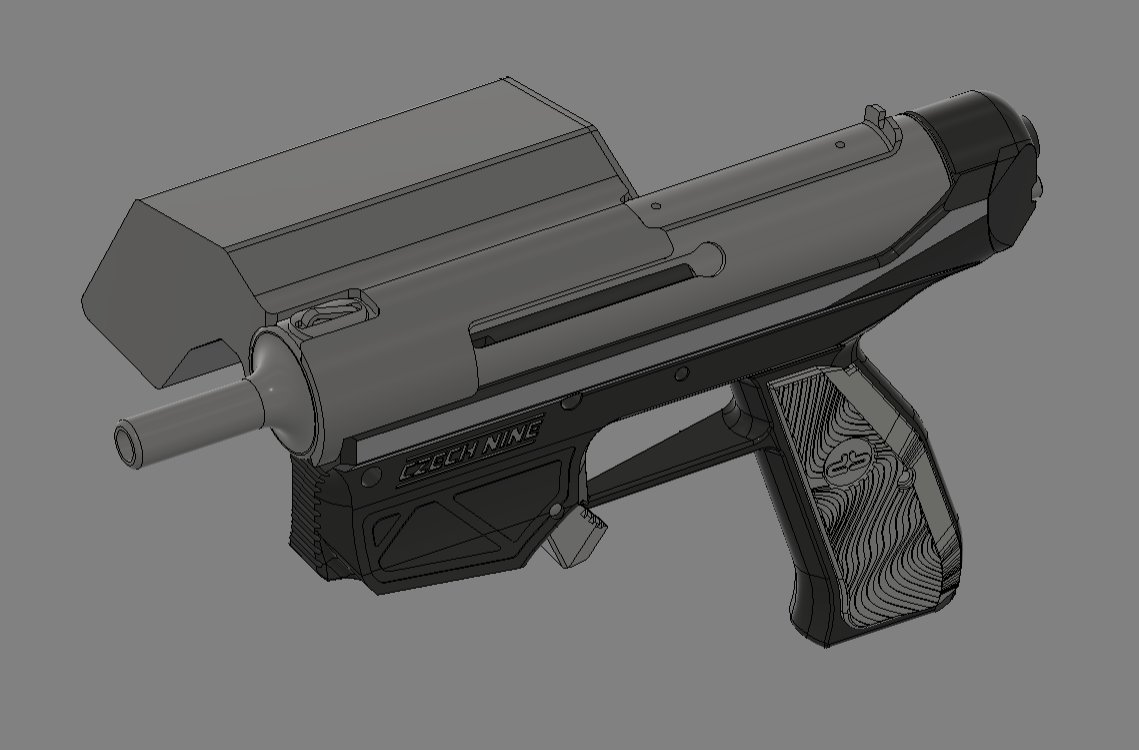

Brass catcher for Intradynamic, Intratec TEC9, including "mini" variants.
The large version will hold approximately 150 casings. It is not recommended to have any more than 100 total however. Likewise the small version will hold approximately 100 casings, but it is not recommended to have any more than 75 rounds total.
Ignoring the max round counts can induce jamming by causing the casings to reflect back into the ejection port. Please report jamming problems via the issues page, note the extractor type (OEM, or aftermarket replacement), and the round count at which point the jam occured. Standard Tec9 jamming need not apply, only stove pipe style issues that are caused by improper deflection into the catcher are applicable.

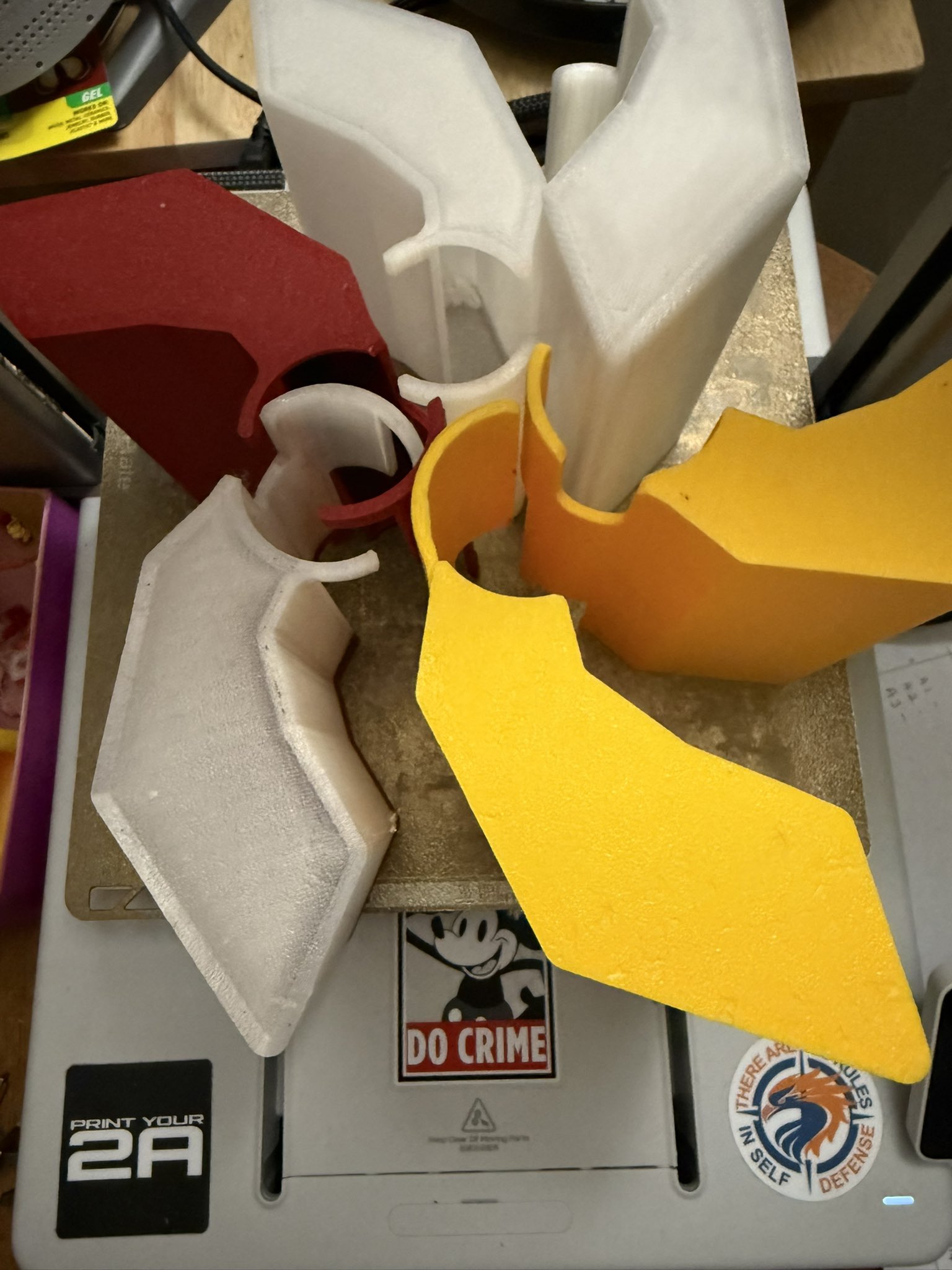

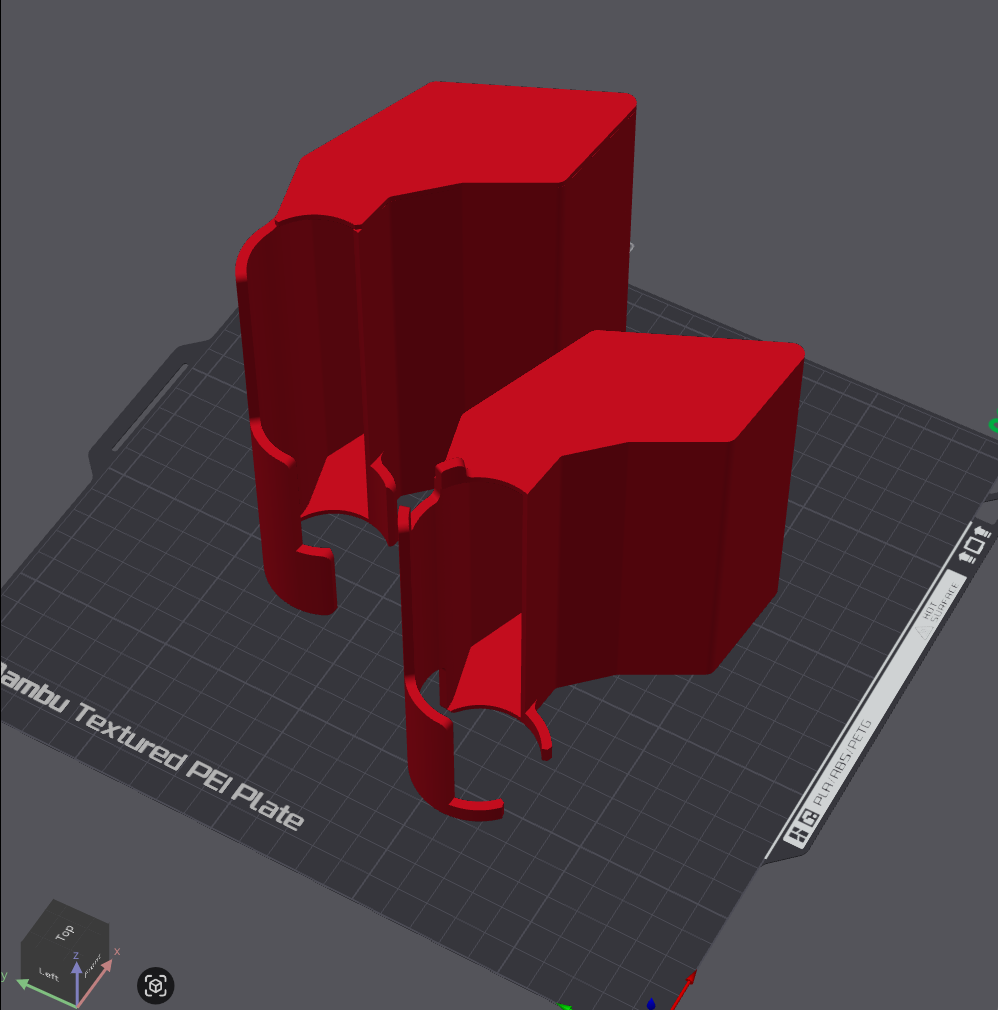

I'd print this like anything else... word on the street is "if your printer bridges well enough you dont even need supports". If you are printing this I'm going to assume this isn't your first rodeo.

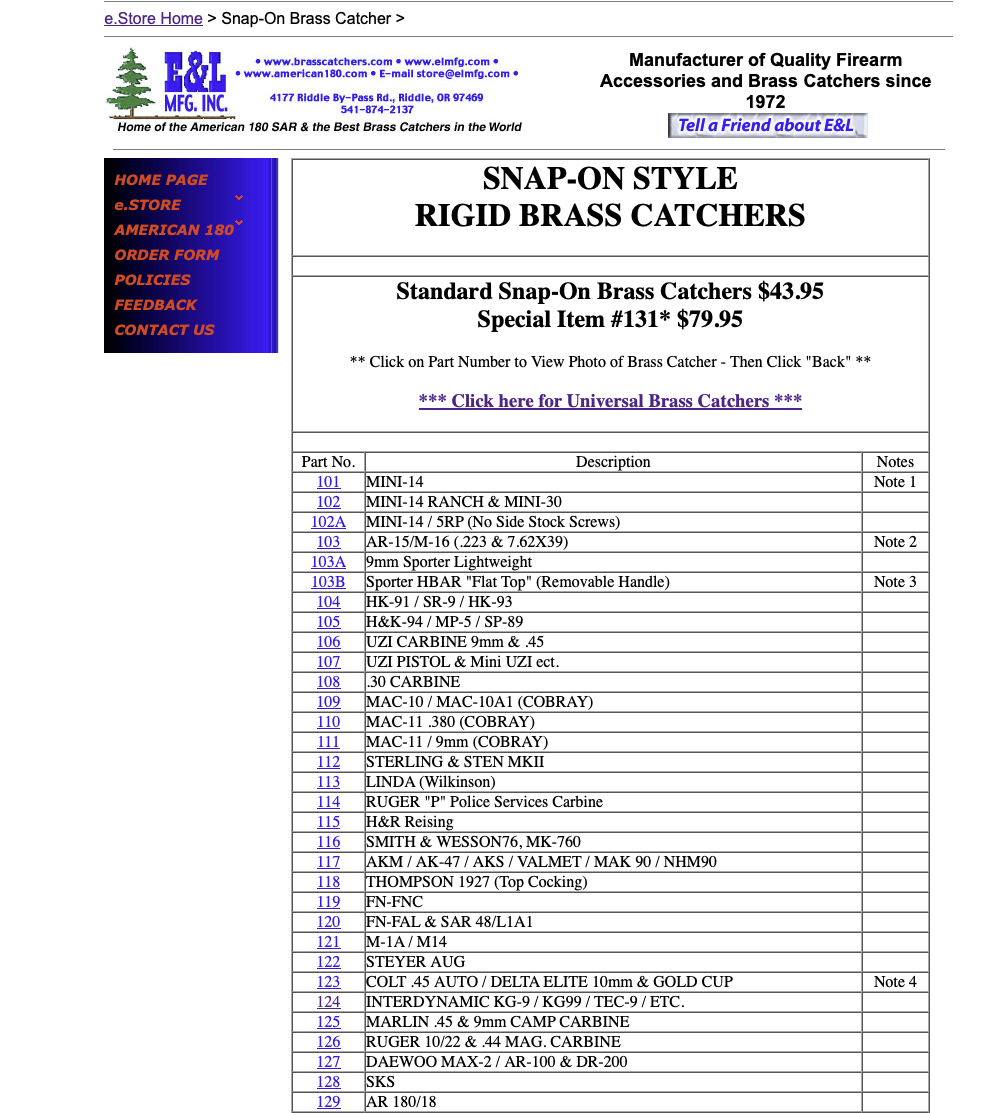

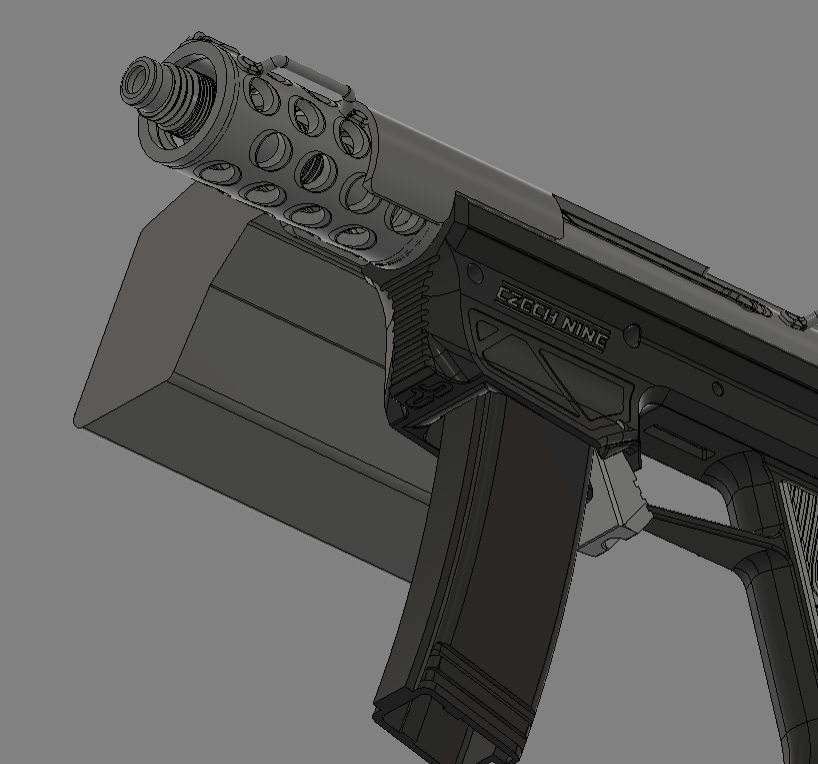

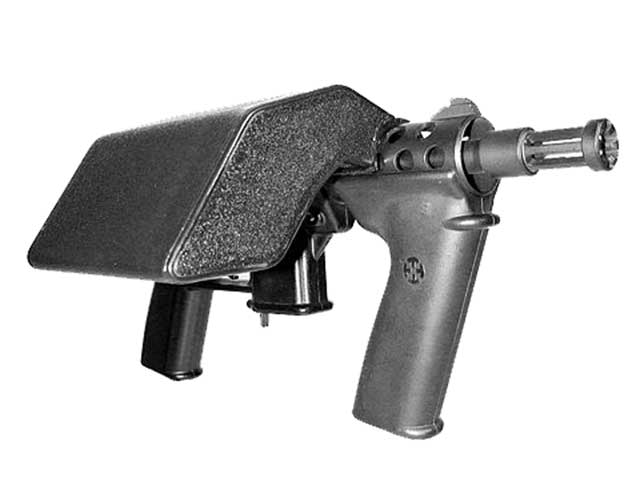

This was modeled after EL MFG Part No 124, and slightly modified for use with Czech Nine, as well as the "mini" models that EL MFG did not support.
Snap it right on... or in the case of the mini variants, first ensure that you've seated the catcher under the rear rail gap in order to hold it snugly in place.
These STEP files are released with Creative Commons CC BY-NC-SA 4.0 licensing.
This license grants you specifc, but limited rights to use these files.
Attribution NonCommercial ShareAlike 4.0 International license
You are free to:
Share — copy and redistribute the material in any medium or format
Adapt — remix, transform, and build upon the material
The licensor cannot revoke these freedoms as long as you follow the license terms.
Under the following terms:
Attribution — You must give appropriate credit , provide a link to the license, and indicate if changes were made . You may do so in any reasonable manner, but not in any way that suggests the licensor endorses you or your use.
NonCommercial — You may not use the material for commercial purposes.
ShareAlike — If you remix, transform, or build upon the material, you must distribute your contributions under the same license as the original.
No additional restrictions — You may not apply legal terms or technological measures that legally restrict others from doing anything the license permits.
Notices: Please read Creative Commons NonCommercial interpretation for more information on licensing.
This direclty means that you can NOT charge for access to these files, and you can not add them to DefCAD, or paywall them via Legio platform, because you explicity do not have permission to do so, you are in fact specifically prohibited from doing so without potential legal ramifications.
Most importantly Friends don't let friends use FedCad
You should probably be using the free GunCAD Index anyway.
