Engineering Thesis: "Designing and building a mobile robot with a control system based on the Arduino development board"

Notifications You must be signed in to change notification settings

RomulusMirauta/EngineeringThesis

Folders and files

NameName
Last commit message
Last commit date

Latest commit



History

24 Commits









Repository files navigation

My Engineering Thesis' Title:

"Designing and building a mobile robot with a control system based on the Arduino development board"


• Educational institution: "Vasile Alecsandri" University of Bacău, Romania (Faculty of Engineering)

• Academic degree obtained: Bachelor’s Degree in Computer Engineering and Information Technology (2019)

• Goal/Practicality: To create a miniature autonomous firefighting robot from scratch, modeled as a firetruck

• The thesis involved working with Arduino IDE (code written in C programming language), IR (infrared) sensors and servo motors

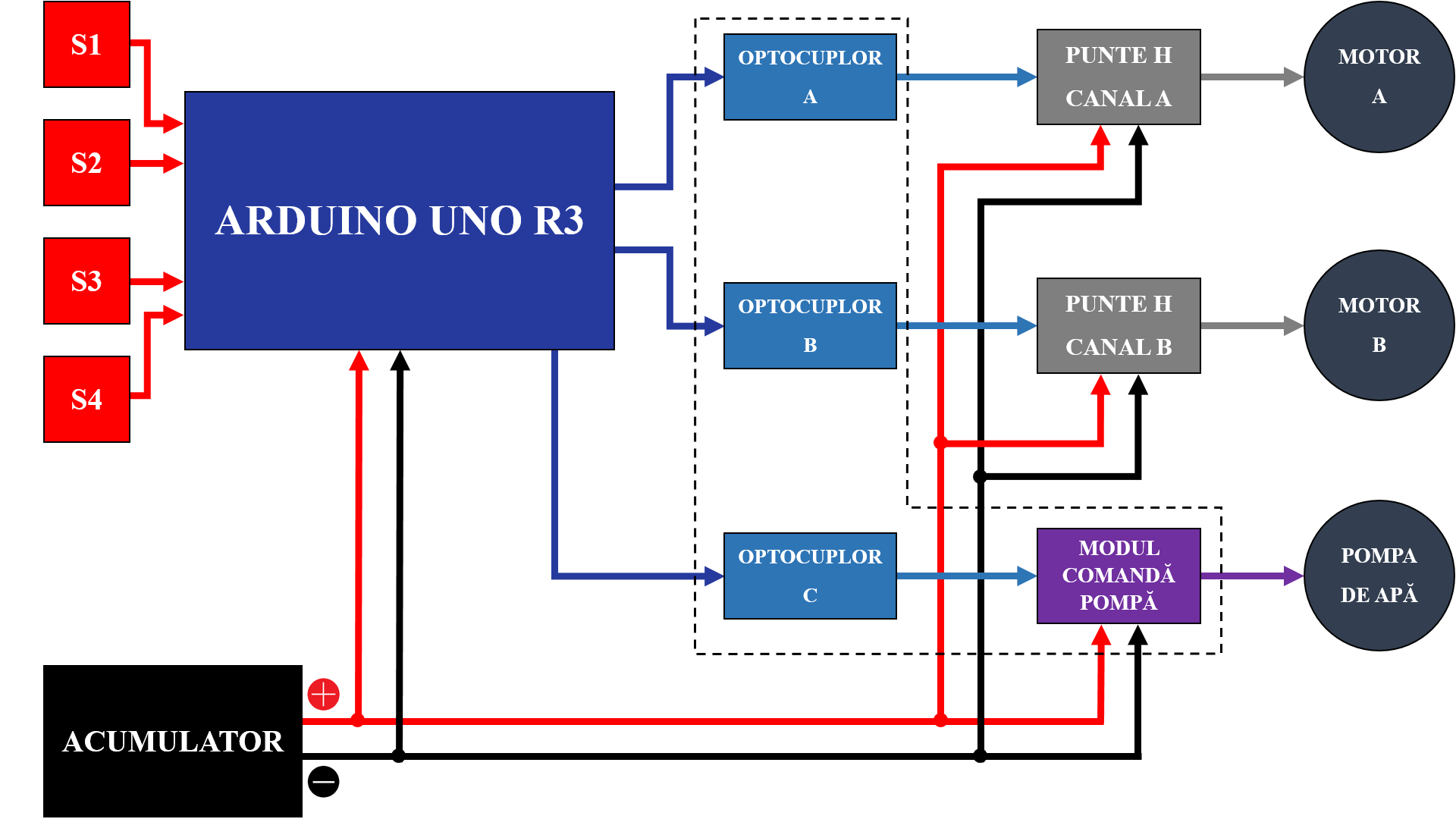

• Here is the General Block Scheme:

Block_Scheme_Final



• List of components:

  1. Arduino Uno R3 development board (with ATmega328-PU microcontroller)
  2. Power cables
  3. 12V battery
  4. Infrared flame sensor modules x4
  5. Water pump 3-12V
  6. 12V DC servo motors x2
  7. Jumper wires
    • Female-to-female jumper wires 10cm
    • Male-to-female jumper wires 10cm
    • Male-to-male jumper wires 10cm
  8. Automotive terminals x2
  9. Water reservoir
  10. Water hoses x2
  11. Nozzle
  12. Pump control module:
    • Bipolar transistor C8050
    • Optocoupler
    • Potentiometer
    • 180 Ω resistor
    • Zener diode DZ10
  13. H-bridges x2
    • Transistors x8
    • Heat sinks x2
    • Resistors
  14. Optocouplers x2
  15. Main fuse
  16. On/off switch
  17. Drive belts x2
  18. Metal chassis
  19. Office chair wheels x2

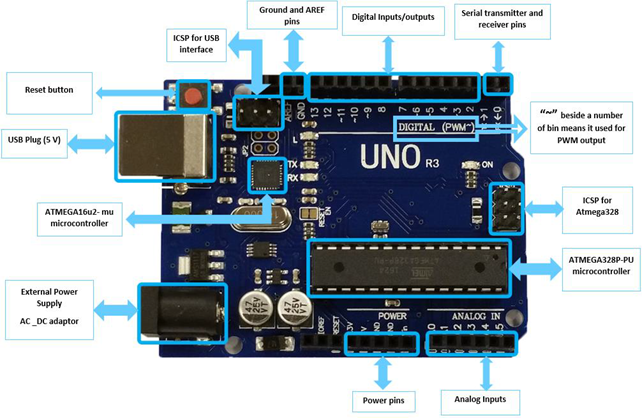

• The Development Board - Arduino UNO R3 - Main Overview



• The Development Board - Arduino UNO R3 - Pin In/Out Scheme

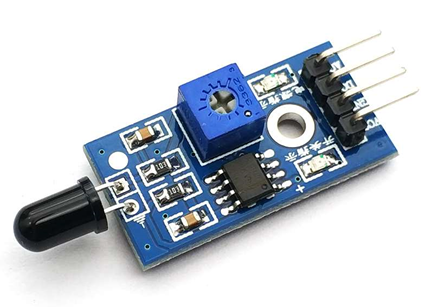

• IR Flame Sensor Module

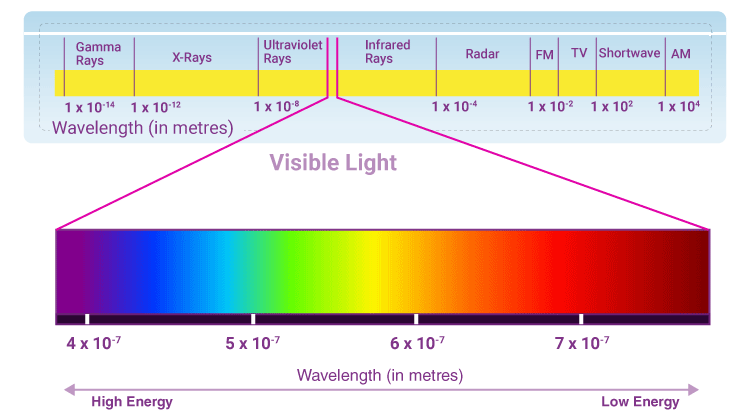

• Electromagnetic Spectrum

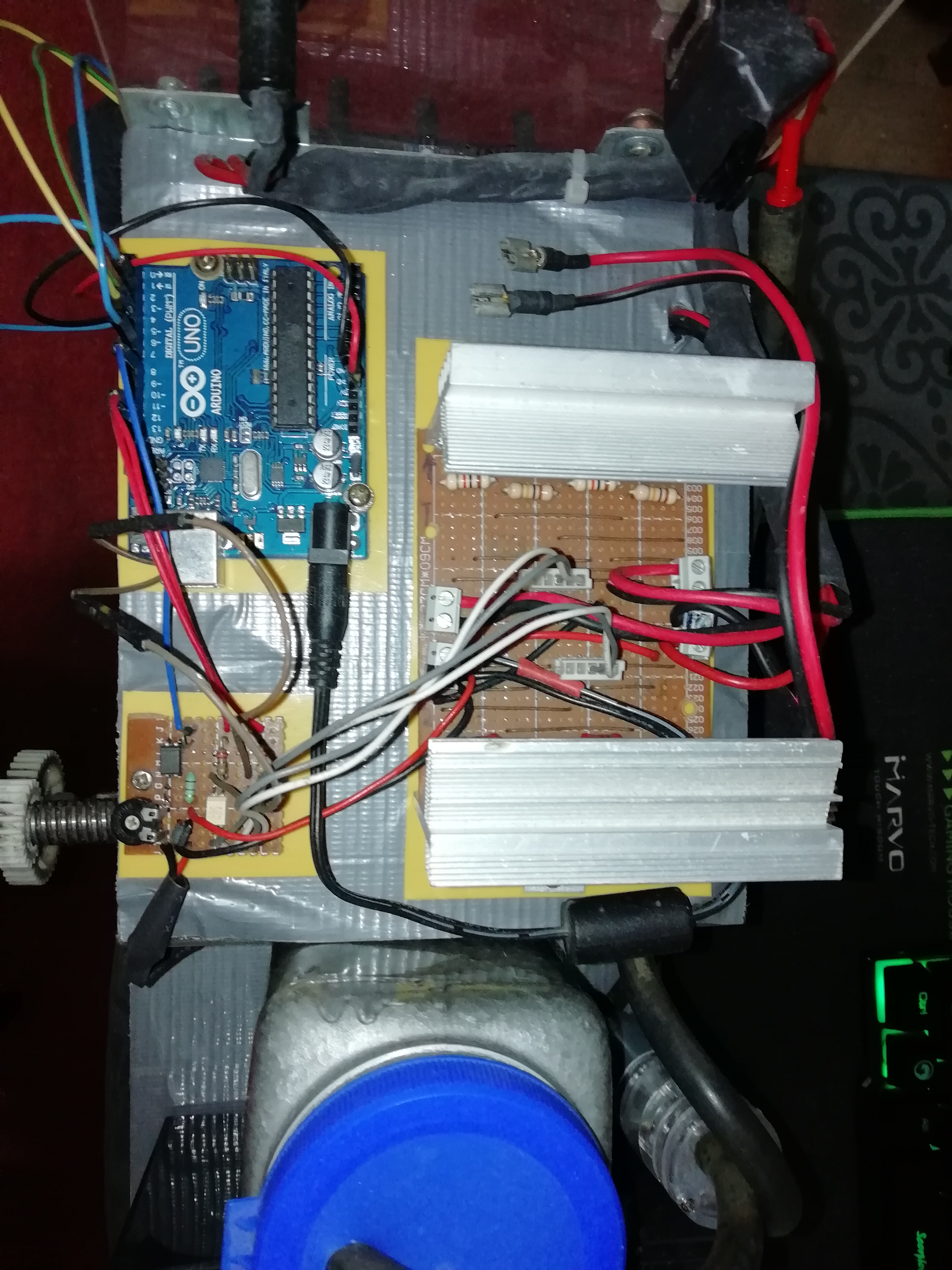

• Photos showcasing the physical aspect of the project:

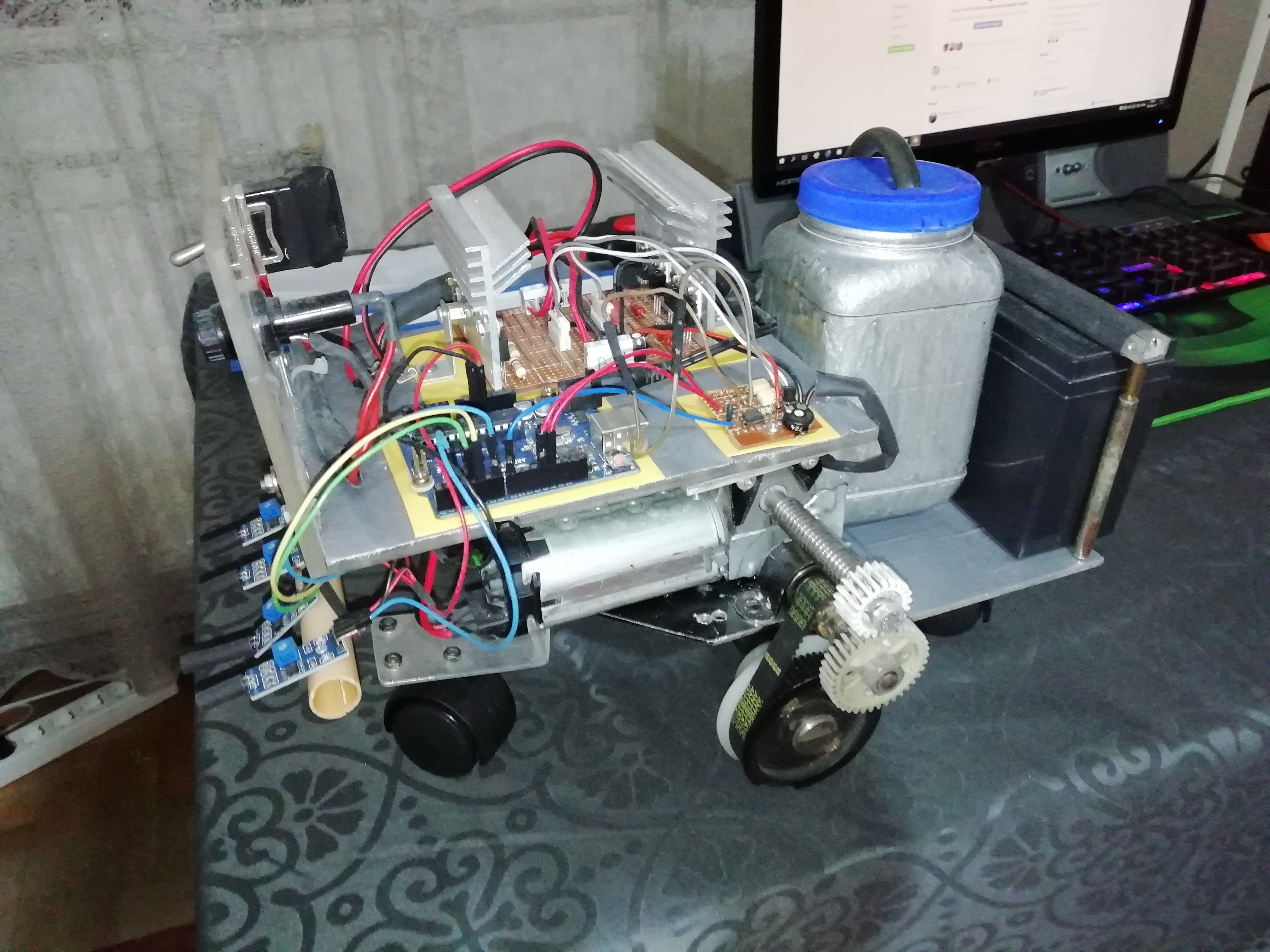

Firetruck1

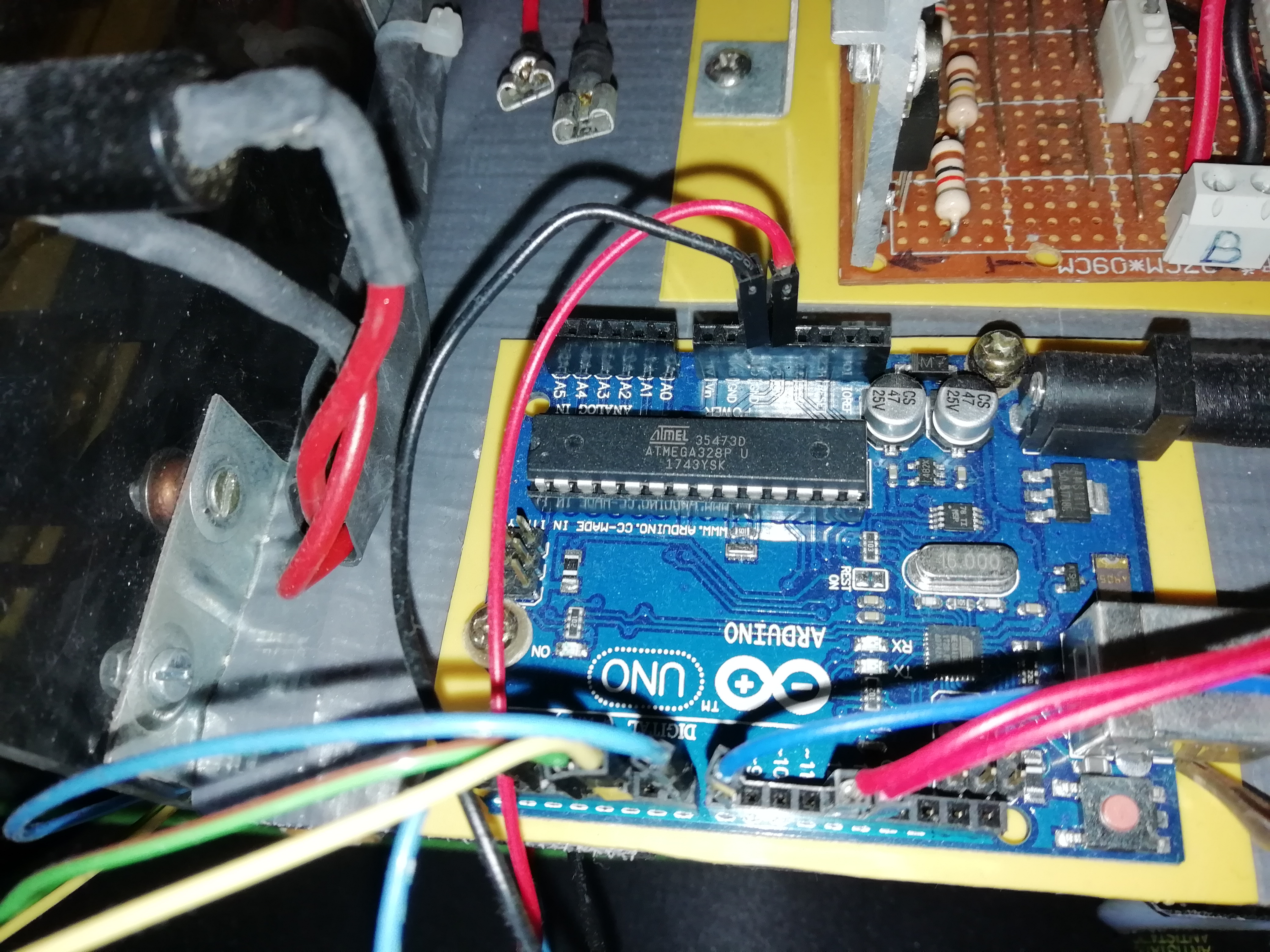

Firetruck2

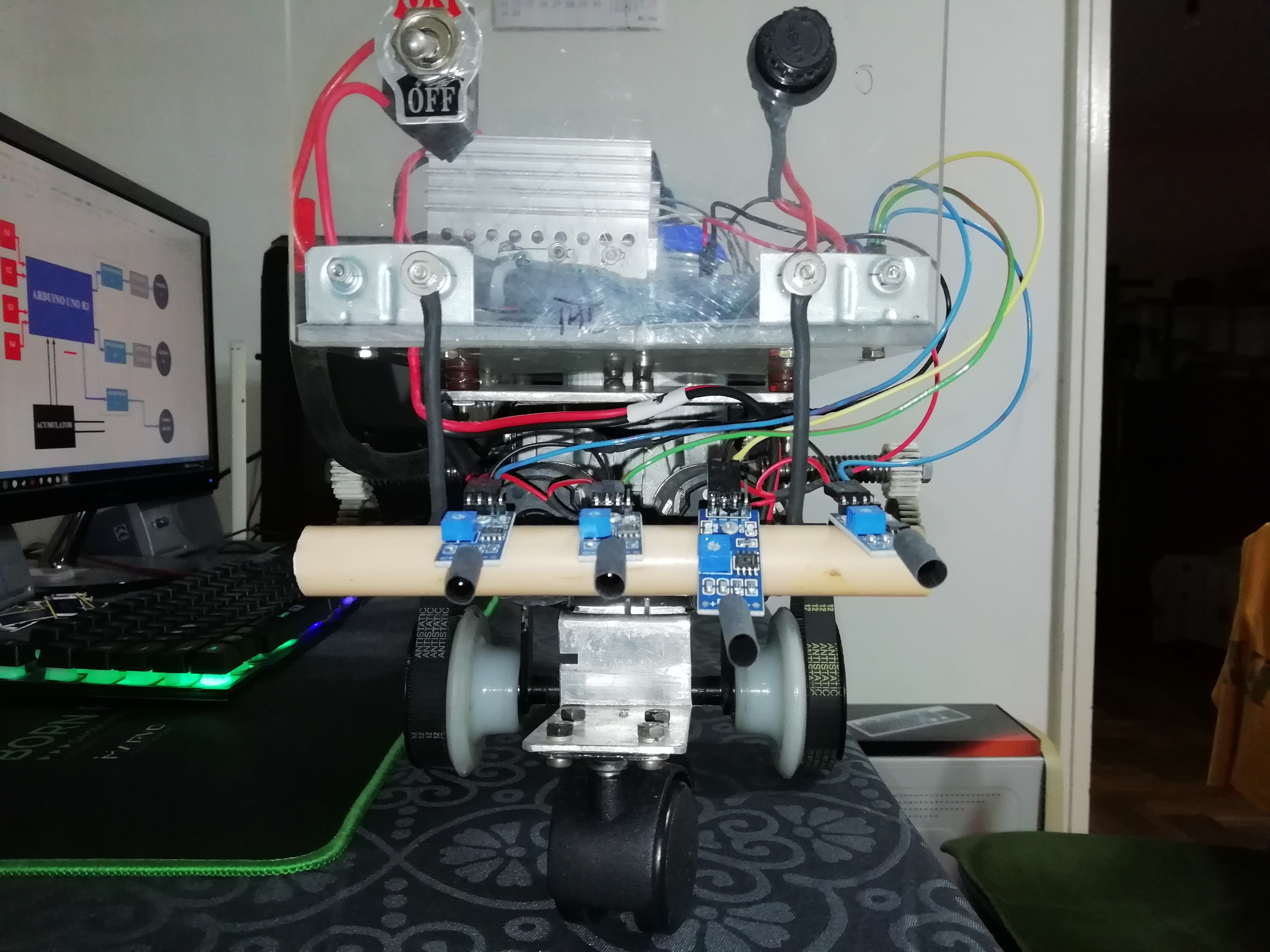

Firetruck3

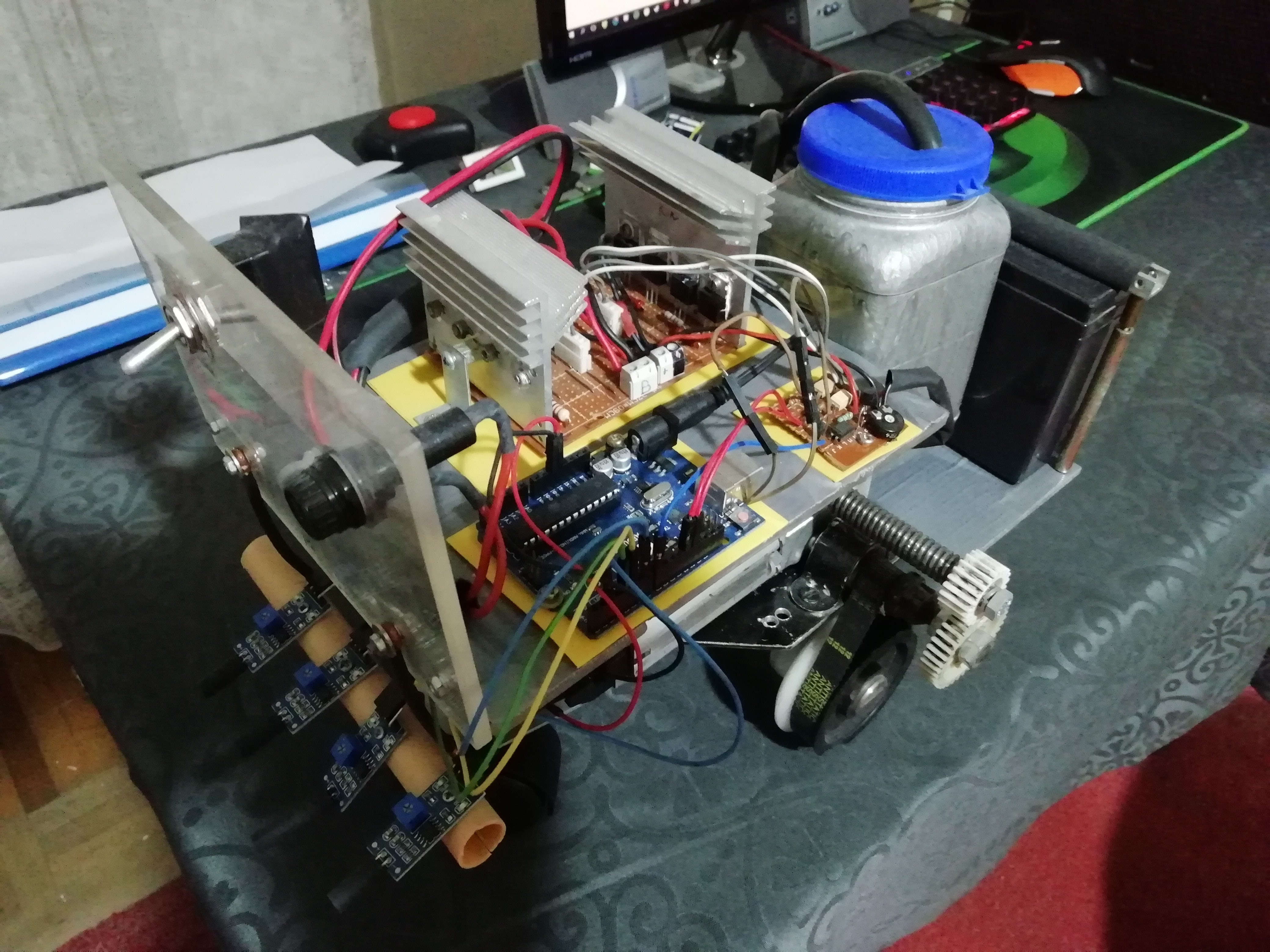

Firetruck4



Firetruck5
