Description

• trying to create a bezier curve that dosent need a globally defined upvector
• The bigger part of the repo is to implement second order dynamics to move objects on a procedual way
• Custom property Drawer to help display the behaviour
• Graph drawer class (ImporvedEditorGraph.cs)

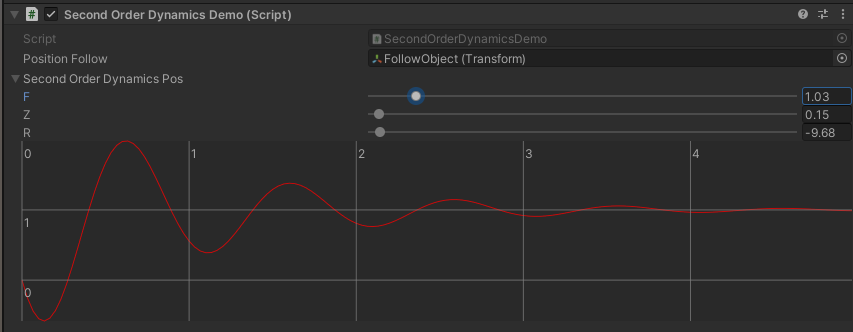

SecondOrderDynamics and GraphDrawer example

How to install / See example scene

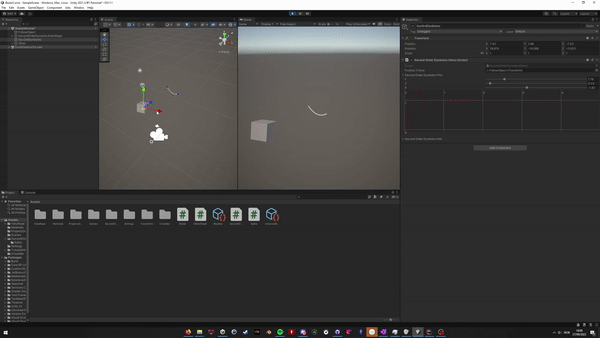

• download the ziped code and open it as a Unity project. Open scene Assets/Scenes/SampleScene.unity to see examples

To use SecondOrderDynamics in other projects

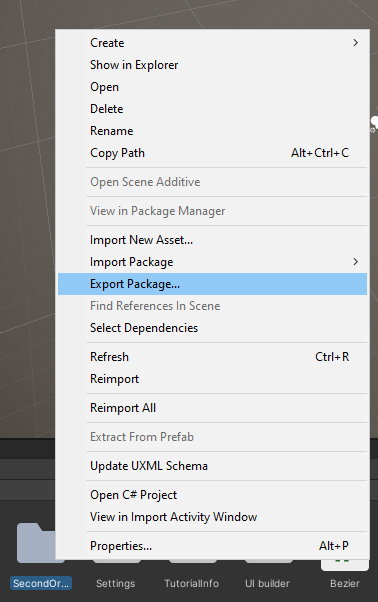

• Package the Assets/SecondOrderDynamics folder and import it to another project to use :)
• (MIT licence) reference to the project
• Then just add a SecondOrderDynamics to Monobehaviour and it will show you the graph functionality automatically

References / Sources

• maths of secondOrderDynamics is heavaly based on the wonderful procedual animations youtube video by T3ssel8r https://www.youtube.com/watch?v=KPoeNZZ6H4s
• SpecialAbility related script examples are taken from https://nosuchstudio.medium.com/learn-unity-editor-scripting-property-drawers-part-2-6fe6097f1586
• ImprovedEditorGraph is based on https://gist.github.com/thelastpointer/c52c4b1f147dc47961798e39e3a7ea10#comments

Future improvements

• Make a Generic version if possible
• Support Quaternions
• Give ImprovedEditorGraph a better name and support mulitple graphs in same view
• Easier Color variation to graph
