Inverted Pendulum LQR control

Launch gazebo model using

roslaunch invpend_control load_invpend.launch

PID

PID controller parameter tuning

Operate rqt_reconfigure to modify PID values launch rqt_reconfigure with the following command

rosrun rqt_reconfigure rqt_reconfigure

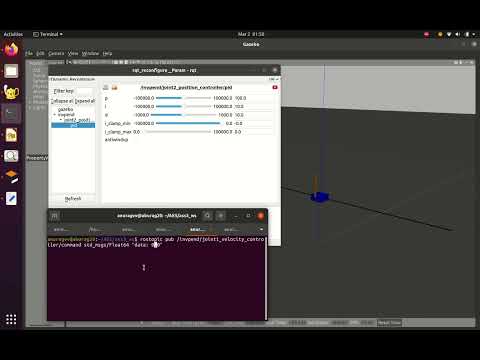

Demo: Inbuilt PID controller

Demo includes setting pole to horizontal and publishing velocity commands.

LQR control

controllqr.py in /invpend_control/scripts/ is to be run to execute LQR control. Check /inverted_pendulum_EOM_Lagrangian.pdf for derivation of Equations of motion using Lagrangian method and derivation of A, B, in the equation: Xd = Ax + Bu

Goal is set to

[[1],[0],[0],[0]]

Demo of LQR control on inverted pendulum. Goal : [[1],[0],[0],[0]]

Plot of cart position, velocity and Pole angular position and angular velocity

LQR controller converges on the set goal quite well.

Cost matrix choosen is Q = np.diag([1, 1, 10, 100]); These values are chosen by analizing the sensitivity of each state variable towards keeping the system in the linearized window. Angular position of pole needs to be maintained within a narrow bound and angular velocity of pole needs to be maintained low to achieve the first. Hence the choice of state cost matrix.

The R matrix has the same number of rows as are control inputs and the same number of columns as are control inputs. The input cost matrix R often has positive values along the diagonal. We can use this matrix to target actuator states where we want low actuator effort by making the corresponding value of R large.

Since controllability of inverted pendulum is of higher priority than conserving actuator effort, a value lower than 1 is chosen. R = np.diag([0.1])
