A Complete SAT Solver on a U55C FPGA (Team AOHW25-894)

This project demonstrates accelerating a complete SAT solver on a U55C FPGA. SAT solving is an important workload due to its wide use in different domains such as artificial intelligence, circuit verification, FPGA routing, etc.

Prerequisites

• XRT 2.14.384
• Vitis 2022.2 (HLS toolchain available)
• Platform: xilinx_u55c_gen3x16_xdma_3_202210_1
• gcc/g++ 11.4.0
• cmake 3.26.3
• ubuntu 22.04.2

Ensure XRT and Vitis HLS are on PATH (source env.sh). Or manually:

source /opt/xilinx/xrt/setup.sh
source /opt/xilinx/tools/Vitis_HLS/2022.2/settings64.sh

Repository layout

• host/ – host sources
• hls/ – HLS kernel sources
• include/ – shared headers
• config/ – HLS kernel configuration and connectivity files
• SAT_test_cases/ – example SAT instances (DIMACS format)

Quick start (Makefile shortcuts)

Choose an emulation type: sw_emu | hw_emu | hw. Use EMU_TYPE to select the mode. The following commands runs the tests found in SAT_test_cases for each emulation type.

Software emulation end-to-end (if run terminates, try ulimit -s 131072):

make EMU_TYPE=sw_emu run -j

Hardware emulation end-to-end:

make EMU_TYPE=hw_emu run -j

Hardware bitstream end-to-end:

-Enable host memory first. PATH_TO_XBUTIL is the install path for xbutil and DEVICE_ID is the device id of the U55C FPGA. The device id command can be found with xbutil examine -d.

-Change the DEVICE_ID in testcases.sh. Replace 0000:81:00.1 with your FPGA device id.

sudo PATH_TO_XBUTIL/xbutil configure --host-mem -d DEVICE_ID -s 1G ENABLE  (only need to do once)
make EMU_TYPE=hw run -j

Makefile targets

• configure – configure CMake in build/<EMU_TYPE>
• compilecl – build the host binary for <EMU_TYPE>
• compilekernel – compile all kernels to .xo for <EMU_TYPE> (parallel)
• linkkernel – link all .xo into workload-<EMU_TYPE>.xclbin
• run – build and run the testcase suite for <EMU_TYPE>
• hw_reports – copy HLS synth reports into FPGArpt/ (only used for EMU_TYPE=hw)
• clean – remove only build/<EMU_TYPE>
• clean-all – remove the entire build/

Tip: pass -j for parallel builds. Example: make EMU_TYPE=hw_emu compilekernel -j.

Direct CMake usage

You can work directly with CMake/Make targets if you prefer:

cmake -S . -B build/<EMU_TYPE> -DEMU_TYPE=<EMU_TYPE>
cmake --build build/<EMU_TYPE> --target compilecl --parallel
cmake --build build/<EMU_TYPE> --target compilekernel --parallel
cmake --build build/<EMU_TYPE> --target linkkernel --parallel
cmake --build build/<EMU_TYPE> --target run --parallel

Generated artifacts (per EMU):

• build/<EMU_TYPE>/bin/test.<EMU_TYPE>.out: host binary
• build/<EMU_TYPE>/bin/workload-<EMU_TYPE>.xclbin: HLS kernel XCLBIN
• build/<EMU_TYPE>/result_<EMU_TYPE>.txt: run results

Running testcases and custom inputs

The run target executes the appropriate testcase script based on EMU_TYPE:

• sw_emu and hw_emu: runs testcases_sim.sh
• hw: runs testcases.sh on the board

You can also run the host manually from build/<EMU_TYPE>/bin on your own SAT instances:

# Emulation
XCL_EMULATION_MODE=<EMU_TYPE> ./test.<EMU_TYPE>.out workload-<EMU_TYPE>.xclbin ../../config/configuration.json <input DIMACS> <output results.txt> <0|1>

# Hardware
./test.hw.out workload-hw.xclbin ../../config/configuration.json <input DIMACS> <output results.txt> <0|1>

The last argument is the expected SAT result (1 for SAT, 0 for UNSAT).

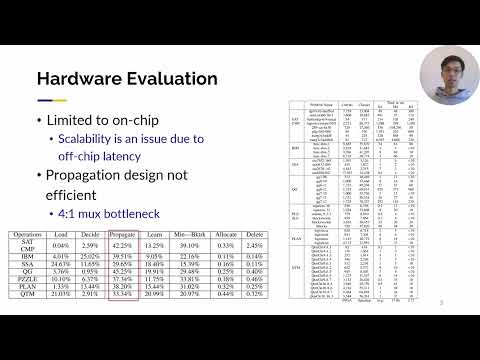

Notes

• Our solver may not be able to solve the instance due to running out of on-chip memory during the solving process. The maximum supported instance size is 32,768 variables and 131,072 clauses.
• design frequency target (FREQ_SC) is 235 MHz defined in CMakeLists.txt
