Live demo http://iamisti.github.io/mdDataTable/

Angular material table. Complete implementation of google material design based on angular material components. This component is optimized for speed, and it's faster then other similar implementations, since it generates a native html table, and browsers are optimized for tables.

Angular2 and Angular2 Material version of this plugin is under development. If you want to be notified for the first release, please star the project here: md-data-table2

Usage statistics

Install

bower install md-data-table or npm install md-data-table or download the source.
Make sure the mdDataTable (notice the camelCase typing) lib is loaded. It's served in three different files: md-data-table-style.css, md-data-table.js, md-data-table-templates.js
Add mdDataTable as a dependency of your app.

Load it from CDN (with example of version 1.8.0)

https://cdnjs.cloudflare.com/ajax/libs/md-data-table/1.8.0/md-data-table-templates.min.js

https://cdnjs.cloudflare.com/ajax/libs/md-data-table/1.8.0/md-data-table.min.js

https://cdnjs.cloudflare.com/ajax/libs/md-data-table/1.8.0/md-data-table-style.css

UI&UX driven by google data table

http://www.google.com/design/spec/components/data-tables.html

selectable-rows
virtual-repeat
delete-row-callback
selected-row-callback
animate-sort-icon
ripple-effect
! title-overflow-handler
table-card
paginated-rows
alternate-headers
mdt-row
mdt-row-paginator
mdt-row-paginator-error-message
mdt-row-paginator-no-results-message
mdt-trigger-request
mdt-translations
mdt-loading-indicator

Column attributes (mdt-column)

align-rule
column-definition
column-filter
exclude-from-column-selector
hide-column-by-default

Row attributes (mdt-row)

table-row-id

Cell attributes (mdt-cell)

! inline-menu
editable-field
html-content

Custom cell content (mdt-custom-cell)

column-key

Overview

In its simplest form, a data table contains a top row of column names, and rows for data.

Table attributes

Global attributes for the table

Available	Params	Type	Details

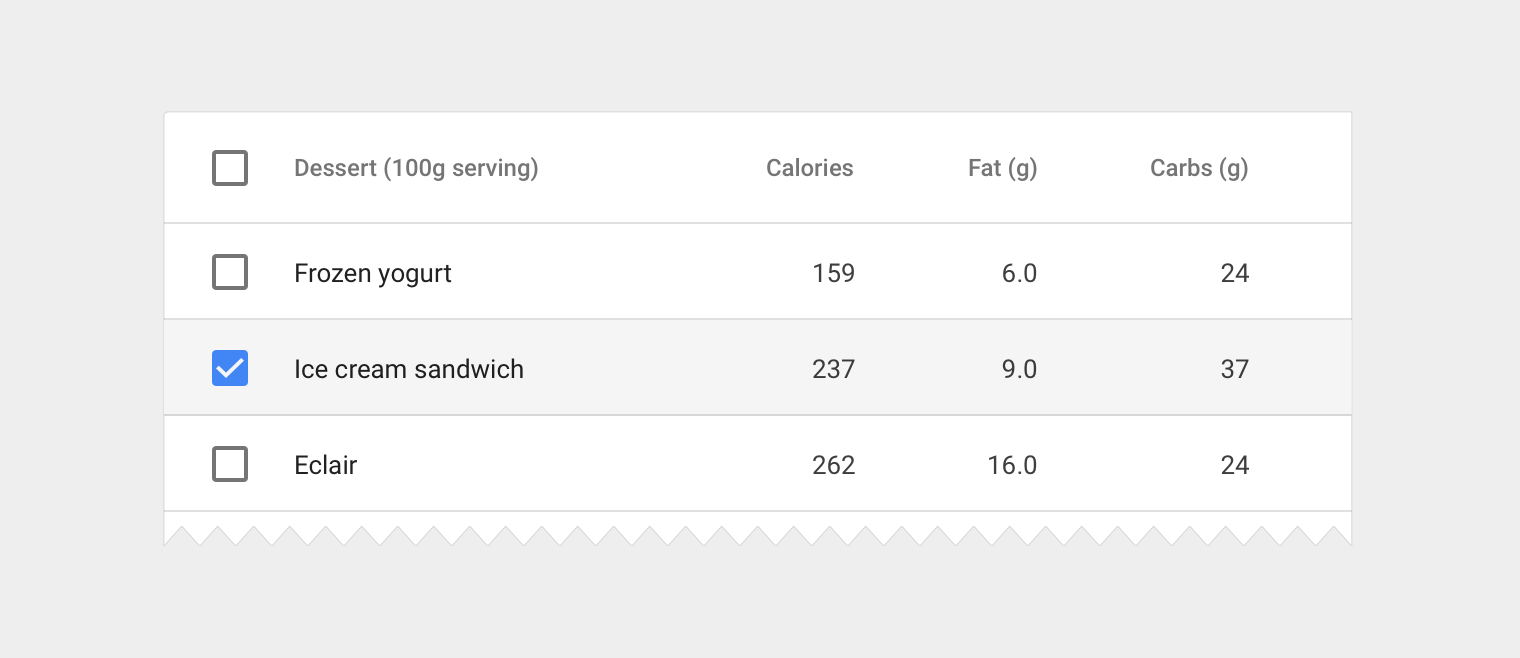

✅	selectable-rows	Boolean	optional, checkboxes accompany each row if need to select or manipulate data
✅	virtual-repeat	Boolean	optional, when set, virtual scrolling will be applied to the table. You must set a fixed height to the `.md-virtual-repeat-container` class in order to make it work properly. Since virtual scrolling is working with fixed height.
✅	delete-row-callback	Function	optional, callback function when deleting rows. The callback will be called with the array of the deleted row ids. Don't forget to specify `table-row-id` for `mdt-row`. If you do, it will return the deleted rows data.
✅	selected-row-callback	Function	optional, callback function when selecting rows. The callback will be called with the array of the selected row ids. Don't forget to specify `table-row-id` for `mdt-row`. If you do, it will return the selected rows data.

Available	Params	Type	Details
✅	animate-sort-icon	Boolean	optional, if enabled, sort icon will be animated on change
✅	ripple-effect	Boolean	optional, if enabled, ripple effect will be applied on the column names when clicked

Available	Params	ChildParams	Type	Details
❌	title-overflow-handler		String	optional, Sometimes, column names don’t fit in a container in between columns. There are two options to handle this
❌		(default) truncateColumnNames	-	Shorten the column name and display it in full on hover
❌		useHorizontalScrollingOnTable	-	Display the full column name and enable horizontal scrolling in the table container

Available	Params	ChildParams	Type	Details
✅	table-card		Object	optional, tables can be embedded within a card, with table navigation and data manipulation tools available at the top and bottom.
✅		title	String	The title of the table card
❌		actionIcons	Boolean	Card action icons (header and footer)
✅		visible	Boolean	The visibility of the table card
✅		columnSelector	Boolean	enables the column selection for the table (you can disable certain columns from the list selection, using `exclude-from-column-selector`, see the related docs)

Available	Params	ChildParams	Type	Details
✅	paginated-rows		Object	optional, if set, then basic pagination will applied to the bottom of the table.
✅		isEnabled	Boolean	Optional, if provided then basic pagination will applied to the bottom of the table
✅		rowsPerPageValues	Array	Optional, if provided then it will apply the rows per page values from the given arguments. Example: [5,10,20]

Available	Params	ChildParams	Type	Details
✅	alternate-headers		String	optional, some table cards may require headers with actions instead of titles. Two possible approaches to this are to display persistent actions, or a contextual header that activates when items are selected
❌		persistentActions	-	Shows persistent action buttons in header
✅		contextual	-	Shows contextual content depending on what has been selected

Available	Params	ChildParams	Type	Details
✅	mdt-row		Object	optional, makes possible to provide row data by passing the information through this attribute. Makes it possible to listen on data changes.
✅		data	Array	required, The input data
✅		table-row-id-key	String	Integer
✅		table-row-class-name	Function	optional, callback that defines the classname of a row.
✅		column-keys	Array	required, property names of the passed data array. Makes it possible to configure which property should go in which column.
✅	mdt-translations		Object	optional, makes it possible to provide a custom translated texts in the table.
✅		rowsPerPage	String	When you need to select the amount of rows visible on the page, this label appears next to the dropdown
✅		largeEditDialog.saveButtonLabel	String	When edit mode is on, in the modal you can click on a button which has the 'Save' label.
✅		largeEditDialog.cancelButtonLabel	String	When edit mode is on, in the modal you can click on a button which has the : 'Cancel' label.
✅	mdt-loading-indicator		Object	optional, if set then loading indicator can be customised.
✅		color	String	Passing a css compatible format as a color will set the color for the loading indicator (e.g.: 'red' or '#008bd2', '#000')
Html support is available for `mdt-row`, see more: Custom cell content (`mdt-custom-cell`)

Example usage for `mdt-row` attribute:

<mdt-table
    selectable-rows="true"
    table-card="{title: Nutrition, actionIcons: true}"
    mdt-row="{
        'data': filteredItems,
        'table-row-id-key': 'id',
        'column-keys': ['name', 'calories', 'fat', 'carbs', 'protein', 'sodium', 'calcium', 'iron']
    }">

    <mdt-header-row>
        <mdt-column>Dessert (100g serving)</mdt-column>
        <mdt-column>Type</mdt-column>
        <mdt-column>Calories</mdt-column>
        <mdt-column sortable-rows-default>Fat (g)</mdt-column>
        <mdt-column>Carbs (g)</mdt-column>
        <mdt-column>Protein (g)</mdt-column>
    </mdt-header-row>

    <!-- notice we didn't provide mdt-row here -->
</mdt-table>

Available	Params	Type	Details
✅	mdt-row-paginator	Function	optional, makes possible to provide a callback function which returns a promise, providing the data for the table. Has two parameters: `page` and `pageSize` (an optional parameter is `options` as a third parameter, which can have `columnFilter` property when `column-filter` is used or `columnSort` when you turn on column sorting feature
✅	mdt-row-paginator-error-message	String	optional, overrides default error mesasge when promise gets rejected by the paginator function.
✅	mdt-row-paginator-no-results-message	String	optional, overrides default 'no results' message when there are no results in the table.
✅	mdt-trigger-request	function(loadPageCallback)	optional, if `mdt-row-paginator` set, provides a callback function for manually triggering an ajax request. Can be useful when you want to populate the results in the table manually. (e.g.: having a search field in your page which then can trigger a new request in the table to show the results based on that filter.

Example usage for `mdt-row-paginator` attribute:

<mdt-table
    paginated-rows="{isEnabled: true, rowsPerPageValues: [5,10,20,100]}"
    mdt-row-paginator="paginatorCallback(page, pageSize, options)"
    mdt-row-paginator-error-message="Error happened during loading nutritions."
    mdt-row="{
        'table-row-id-key': 'fields.item_id',
        'column-keys': [
            'fields.item_name',
            'fields.nf_calories',
            'fields.nf_total_fat',
            'fields.nf_total_carbohydrate',
            'fields.nf_protein',
            'fields.nf_sodium',
            'fields.nf_calcium_dv',
            'fields.nf_iron_dv'
        ],
    }">

    <mdt-header-row>
        <mdt-column align-rule="left">Dessert (100g serving)</mdt-column>
        <mdt-column align-rule="right">Calories</mdt-column>
        <mdt-column align-rule="right">Fat (g)</mdt-column>
        <mdt-column align-rule="right">Carbs (g)</mdt-column>
        <mdt-column align-rule="right">Protein (g)</mdt-column>
        <mdt-column align-rule="right">Sodium (mg)</mdt-column>
        <mdt-column align-rule="right">Calcium (%)</mdt-column>
        <mdt-column align-rule="right">Iron (%)</mdt-column>
    </mdt-header-row>
</mdt-table>

Column attributes

mdt-column attributes

Available	Params	ChildPArams	Type	Details
✅	align-rule		String	if provided, align the text to the needed direction for the entire column (note, that it aligns the data that belongs to the column)
✅		(default) left		left-align content
✅		right		right-align content

Available	Params	Type	Details
✅	column-definition	String	if provided, display a tooltip on hover. If sorting is enabled, display a light sort icon upon hover, which indicates that the column is sortable.

Available	Params	ChildPArams	Type	Details
❌	sortable-rows-default	-		When column-sort is applied to the table, it marks the column as the default sorting column
✅	column-sort		Boolean	Object
✅	column-sort	true	false
✅	column-sort	comparator		in case of object, specifying a 'comparator' property which is a function for sorting the column data's. As every compare function, it gets two parameters and return with the compared result (-1,1,0)

Available	Params	ChildPArams	Type	Details
✅	column-filter		Object	if provided, user can activate column filter feature on the selected column.
✅		valuesProviderCallback	Function	required, function which provides the values into the column filter. It must return with a promise which resolves an array of strings/objects.
✅		valuesTransformerCallback	Function	optional, function which transforms the provided objects into strings to be able to show it visually in the column filter.
✅		placeholderText	Text	optional, placeholder which will show up as a default text (available only for `chips` and `dropdown` filter types
✅		filterType	Text	optional, defines the type of the filter you want to use. Available options are: `chips`, `checkbox`, `dropdown`. If you don't specify it, the default will be `chips`
✅	exclude-from-column-selector		Boolean	optional, excludes the column from the column selection feature
✅	hide-column-by-default		Boolean	optional, make column unselected by default in the column selection panel

When filters are applied to the columns, a third parameter will be applied to the mdt-row-paginator callback function.

Data-Row attributes

mdt-row attributes

Available	Params	Type	Details
✅	table-row-id	String	Integer

Custom cell content

mdt-custom-cell attributes

If you are using mdt-row attribute to load your data (which is only way of you are dealing with ajax contents), you can now have custom content for each cells you defined. Important information:

You can still access your scope variables/functions with accessing clientScope within the mdt-custom-cell directive. The value of the cell can be accessed by accessing value inside the directive. Accessing rowId also possible if you specified it with table-row-id-key.

Available	Params	ChildParams	Type	Details
✅	column-key		String	required, specifies the column in the rows.
There is only one scope variable that you can use in your template, and it's called `value`. Check the example.

Example usage for `mdt-custom-cell`:

<mdt-table>
    <mdt-table mdt-row="{'data': filteredItems,
                      'table-row-id-key': 'id',
                      'column-keys': ['name', 'calories', 'fat', 'carbs', 'protein', 'sodium', 'calcium', 'iron']}">
        <mdt-header-row>
            <mdt-column align-rule="left">Dessert (100g serving)</mdt-column>
            <mdt-column align-rule="right">Calories</mdt-column>
            <mdt-column align-rule="right">Fat (g)</mdt-column>
            <mdt-column align-rule="right">Carbs (g)</mdt-column>
            <mdt-column align-rule="right">Protein (g)</mdt-column>
            <mdt-column align-rule="right">Sodium (mg)</mdt-column>
            <mdt-column align-rule="right">Calcium (%)</mdt-column>
            <mdt-column align-rule="right">Iron (%)</mdt-column>
        </mdt-header-row>

        <!-- here you have your own, customised cell for every 'protein' column -->
        <mdt-custom-cell column-key="protein">
            <span ng-class="{'red': value > 5, 'green': value <= 5}">{{value}}</span>
            <span ng-click="clientScope.myMethodToExecute()">click here</span>

            <span>This is the row id for this column: {{rowId}}</span>
        </mdt-custom-cell>
    </mdt-table>
</mdt-table>

Data-Cell attributes

mdt-cell attributes

Available	Params	Type	Details
❌	inline-menu	Array	if provided, users can select from a predefined list of options. In this scenario, a menu component directly embedded in the table

Available	Params	ChildParams	Type	Details
✅	editable-field		String	if provided, provides basic text editing. Include editable fields within a table and denote them using placeholder text(if empty). You can use a simple edit dialog with just a text field, or display a full dialog component on click.
✅		smallEditDialog	-	A simple, one-field edit dialog on click
✅		largeEditDialog	-	A complex, flexible edit edit dialog on click
✅	editable-field-title		String	If set, then it sets the title of the dialog. (only for `largeEditDialog`)
✅	editable-field-max-length		Number	if set, then it sets the maximum length of the field.

Available	Params	ChildParams	Type	Details
✅	html-content		Boolean	When the cell content is not a simple value (html content)

Example usage:

<mdt-table
    selectable-rows="true"
    table-card="{title: Nutrition, actionIcons: true}">

    <mdt-header-row>
        <!-- defining column descriptions, align content to the left -->
        <mdt-column
            align-rule="left"
            column-definition="The total amount of food energy in the given serving size.">
            Dessert (100g serving)
        </mdt-column>

        <!-- in case of inline menu (INLINE-MENU FEATURE DOES NOT EXIST YET) -->
        <mdt-column inline-menu="[ {iceCream: 'Ice Cream', pastry: 'Pastry', other: 'Other'} ]">Type</mdt-column>

        <!-- inline text editing (EDITABLE-FIELDS FEATURE DOES NOT EXIST YET) -->
        <mdt-column editable-field="textInput">
            Calories
        </mdt-column>

        <!-- in case of sortable columns, we can set the defaultly sortable column -->
        <mdt-column sortable-rows-default>
            Fat (g)
        </mdt-column>
        <mdt-column>Carbs (g)</mdt-column>
        <mdt-column>Protein (g)</mdt-column>
    </mdt-header-row>

    <mdt-row ng-repeat="nutrition in nutritionList">
        <mdt-cell>Frozen Joghurt</mdt-cell>
        <mdt-cell>159</mdt-cell>
        <mdt-cell>6</mdt-cell>
        <mdt-cell>24</mdt-cell>
        <mdt-cell>4</mdt-cell>
        <mdt-cell>87</mdt-cell>
    </mdt-row>

</mdt-table>

Name		Name	Last commit message	Last commit date
Latest commit History 544 Commits
app		app
demo		demo
dist		dist
docs		docs
gulp-tasks		gulp-tasks
test		test
.bowerrc		.bowerrc
.codeclimate.yml		.codeclimate.yml
.csslintrc		.csslintrc
.eslintignore		.eslintignore
.eslintrc		.eslintrc
.gitignore		.gitignore
.jshintrc		.jshintrc
.travis.yml		.travis.yml
LICENSE		LICENSE
README.md		README.md
bower.json		bower.json
gulpfile.js		gulpfile.js
index.js		index.js
jsdocConf.json		jsdocConf.json
package.json		package.json
wallaby.js		wallaby.js

Provide feedback

Saved searches

Use saved searches to filter your results more quickly

Repository files navigation

Usage statistics

Install

Load it from CDN (with example of version 1.8.0)

UI&UX driven by google data table

Table of contents

Overview

Table attributes

Example usage for `mdt-row` attribute:

Example usage for `mdt-row-paginator` attribute:

Column attributes

Data-Row attributes

Custom cell content

Example usage for `mdt-custom-cell`:

Data-Cell attributes

Example usage:

About

Releases

Packages

Languages

License

amitinvy/mdDataTable

Folders and files

Latest commit

History

Repository files navigation

Usage statistics

Install

Load it from CDN (with example of version 1.8.0)

UI&UX driven by google data table

Table of contents

Overview

Table attributes

Example usage for mdt-row attribute:

Example usage for mdt-row-paginator attribute:

Column attributes

Data-Row attributes

Custom cell content

Example usage for mdt-custom-cell:

Data-Cell attributes

Example usage:

About

Resources

License

Stars

Watchers

Forks

Releases

Packages 0

Languages

Example usage for `mdt-row` attribute:

Example usage for `mdt-row-paginator` attribute:

Example usage for `mdt-custom-cell`:

Packages
