Add ESP32-C6 MCU

[jue89]

• package: generic QFN-40
• symbol, unit, entity: ESP32-C6
• part: ESP32-C6

[jue89]

Bot!

[github-actions]

This review is brought to you by the Horizon EDA Poolbot commit 33131f8.

Items in this PR

State	Type	Name	Checks	Version	Filename
New	Entity	ESP32-C6	✔️ Pass	0 ✔️	entities/ic/mcu/esp/ESP32-C6.json
New	Package	QFN-40 (5x5mm EP3.3x3.3mm)	✔️ Pass	0 ✔️	packages/ic/qfn/qfn-40/package.json
New	Padstack	EP	Not run	0 ✔️	packages/ic/qfn/qfn-40/padstacks/pad.json
New	Part	ESP32-C6	✔️ Pass	0 ✔️	parts/ic/mcu/esp/ESP32-C6.json
New	Symbol	ESP32-C6 Flash Interface	✔️ Pass	0 ✔️	symbols/ic/mcu/esp/ESP32-C6-FLASH.json
New	Symbol	ESP32-C6 GPIO Bank	✔️ Pass	0 ✔️	symbols/ic/mcu/esp/ESP32-C6-GPIO.json
New	Symbol	ESP32-C6 Base	✔️ Pass	0 ✔️	symbols/ic/mcu/esp/ESP32-C6.json
New	Unit	ESP32-C6 Flash Interface	✔️ Pass	1 ❌ (>0)	units/ic/mcu/esp/ESP32-C6-FLASH.json
New	Unit	ESP32-C6 GPIO Bank	✔️ Pass	1 ❌ (>0)	units/ic/mcu/esp/ESP32-C6-GPIO.json
New	Unit	ESP32-C6 Base	✔️ Pass	0 ✔️	units/ic/mcu/esp/ESP32-C6.json

Parts overview (excluding derived)

Bold items are from this PR

• Part ESP32-C6
  • Package QFN-40 (5x5mm EP3.3x3.3mm)
    • Padstack SMD rectangular with rounded corners
    • Padstack EP
  • Entity ESP32-C6
    • Unit ESP32-C6 Flash Interface
      • Symbol ESP32-C6 Flash Interface
    • Unit ESP32-C6 GPIO Bank
      • Symbol ESP32-C6 GPIO Bank
    • Unit ESP32-C6 Base
      • Symbol ESP32-C6 Base

Details

Parts

ESP32-C6

✔️ Checks passed

Attribute	Value
MPN	ESP32-C6
Value
Manufacturer	Espressif (1 other parts)
Datasheet	https://www.espressif.com/sites/default/files/documentation/esp32-c6_datasheet_en.pdf
Description	RISC-V single-core MCU, 512kB RAM, Radio: WiFi6 + BLE5 + IEE802.15.4
Tags	esp ic mcu

Pad	Gate	Pin
1	Base	ANT
2	Base	VDDA3P3
3	Base	VDDA3P3
4	Base	CHIP_PU
5	Base	VDDPST1
6	GPIO Bank	GPIO0
7	GPIO Bank	GPIO1
8	GPIO Bank	GPIO2
9	GPIO Bank	GPIO3
10	GPIO Bank	MTMS
11	GPIO Bank	MTDI
12	GPIO Bank	MTCK
13	GPIO Bank	MTDO
14	GPIO Bank	GPIO8
15	GPIO Bank	GPIO9
16	GPIO Bank	GPIO10
17	GPIO Bank	GPIO11
18	GPIO Bank	USB_D-
19	GPIO Bank	USB_D+
20	Flash Interface	SPICS0
21	Flash Interface	SPIQ
22	Flash Interface	GPIO26
23	Flash Interface	VDD_SPI
24	Flash Interface	GPIO28
25	Flash Interface	SPICLK
26	Flash Interface	SPID
27	GPIO Bank	GPIO15
28	Base	VDDPST2
29	GPIO Bank	U0TXD
30	GPIO Bank	U0RXD
31	GPIO Bank	SDIO_CMD
32	GPIO Bank	SDIO_CLK
33	GPIO Bank	SDIO_DATA0
34	GPIO Bank	SDIO_DATA1
35	GPIO Bank	SDIO_DATA2
36	GPIO Bank	SDIO_DATA3
37	Base	VDDA1
38	Base	XTAL_N
39	Base	XTAL_P
40	Base	VDDA2
PAD	Base	GND

Entities

ESP32-C6

✔️ Checks passed

Attribute	Value
Manufacturer	Espressif (1 other parts)
Prefix	U
Tags	esp ic mcu

Gate	Suffix	Swap group	Unit
Base	A	0	ESP32-C6 Base
Flash Interface	C	0	ESP32-C6 Flash Interface
GPIO Bank	B	0	ESP32-C6 GPIO Bank

Units

ESP32-C6 Flash Interface

✔️ Checks passed

Attribute	Value
Manufacturer	Espressif (1 other parts)

Pin	Direction	Alternate names
GPIO26	Bidirectional	SPIWP (BiDi)
GPIO28	Bidirectional	SPIHD (BiDi)
SPICLK	Output	GPIO29 (BiDi)
SPICS0	Output	GPIO24 (BiDi)
SPID	Bidirectional	GPIO30 (BiDi)
SPIQ	Bidirectional	GPIO25 (BiDi)
VDD_SPI	Power Output	GPIO27 (BiDi)

Symbol: ESP32-C6 Flash Interface

✔️ Checks passed

• Is box symbol

ESP32-C6 GPIO Bank

✔️ Checks passed

Attribute	Value
Manufacturer	Espressif (1 other parts)

Pin	Direction	Alternate names
GPIO0	Bidirectional	LP_UART_DTRN (Out), LP_GPIO0 (BiDi), ADC1_CH0 (Passive), XTAL_32K_P (Passive)
GPIO1	Bidirectional	ADC1_CH1 (Passive), XTAL_32K_N (Passive), LP_UART_DSRN (In), LP_GPIO1 (BiDi)
GPIO2	Bidirectional	ADC1_CH2 (Passive), FSPIQ (BiDi), LP_GPIO2 (BiDi), LP_UART_RTSN (Out)
GPIO3	Bidirectional	LP_UART_CTSN (In), ADC1_CH3 (Passive), LP_GPIO3 (BiDi)
GPIO8	Bidirectional
GPIO9	Bidirectional
GPIO10	Bidirectional
GPIO11	Bidirectional
GPIO15	Bidirectional
MTCK	Input	FSPICLK (BiDi), ADC1_CH6 (Passive), GPIO6 (BiDi), LP_I2C_SDA (BiDi), LP_GPIO6 (BiDi)
MTDI	Input	GPIO5 (BiDi), FSPIWP (BiDi), LP_GPIO5 (BiDi), LP_UART_TXD (Out), ADC1_CH5 (Passive)
MTDO	Output	LP_I2C_SCL (BiDi), FSPID (BiDi), GPIO7 (BiDi), LP_GPIO7 (BiDi)
MTMS	Input	LP_GPIO4 (BiDi), LP_UART_RXD (In), GPIO4 (BiDi), ADC1_CH4 (Passive), FSPIHD (BiDi)
SDIO_CLK	Bidirectional	FSPICS3 (Out), GPIO19 (In)
SDIO_CMD	Bidirectional	FSPICS2 (Out), GPIO18 (BiDi)
SDIO_DATA0	Bidirectional	FSPICS4 (Out), GPIO20 (In)
SDIO_DATA1	Bidirectional	GPIO21 (BiDi), FSPICS5 (Out)
SDIO_DATA2	Bidirectional	GPIO22 (BiDi)
SDIO_DATA3	Bidirectional	GPIO23 (BiDi)
U0RXD	Bidirectional	FSPICS1 (Out), GPIO17 (BiDi)
U0TXD	Bidirectional	GPIO16 (BiDi), FSPICS0 (BiDi)
USB_D+	Bidirectional	GPIO14 (BiDi)
USB_D-	Bidirectional	GPIO13 (BiDi)

Symbol: ESP32-C6 GPIO Bank

Is expandable

✔️ Checks passed

• Is box symbol

Expanded by 5

ESP32-C6 Base

✔️ Checks passed

Attribute	Value
Manufacturer	Espressif (1 other parts)

Pin	Direction
ANT	Passive
CHIP_PU	Input
GND	Passive
VDDA1	Power Input
VDDA2	Power Input
VDDA3P3	Power Input
VDDPST1	Power Input
VDDPST2	Power Input
XTAL_N	Passive
XTAL_P	Passive

Symbol: ESP32-C6 Base

✔️ Checks passed

• Is box symbol

Packages

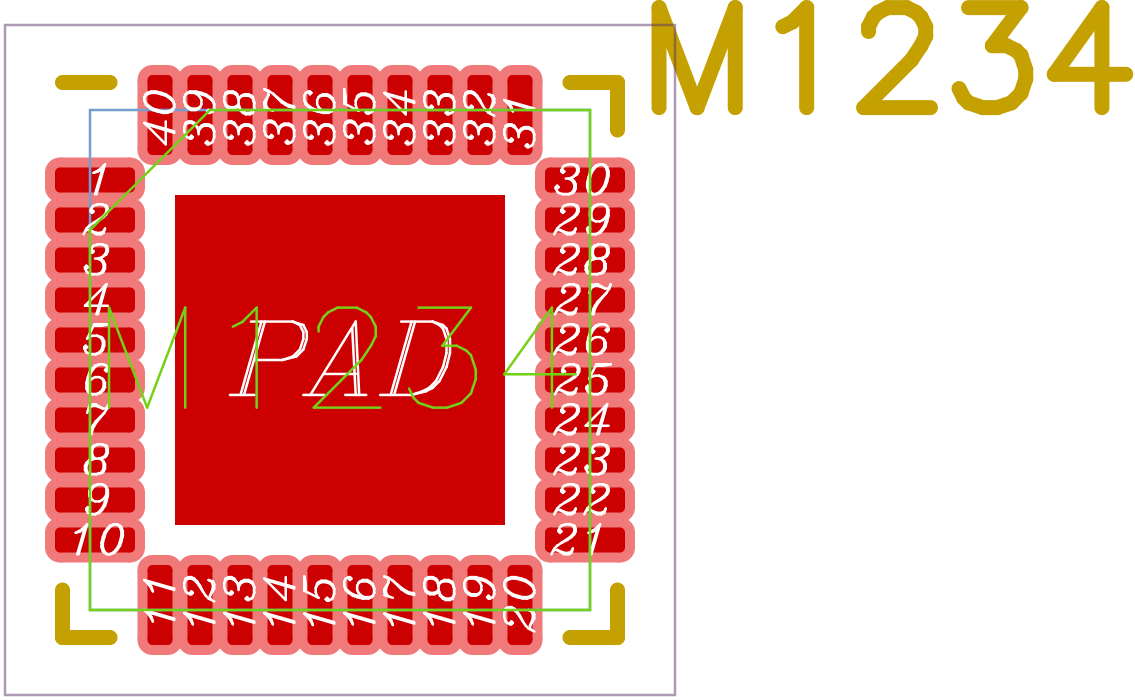

QFN-40 (5x5mm EP3.3x3.3mm)

Attribute	Value
Manufacturer	(125 other parts)
Tags	generic ic qfn smd

✔️ Package checks passed

✔️ Clearance checks passed

Parameters

Parameter	Value
Courtyard expansion	000.250 mm

6.200mm 6.200mm
get-parameter [ courtyard_expansion ]
2 * +xy
set-polygon [ courtyard rectangle 0.000mm 0.000mm ]

Pads

Pad	Padstack	Pad width	Pad height	Corner radius
1	SMD rectangular with rounded corners	000.250 mm	000.800 mm	000.050 mm
2	SMD rectangular with rounded corners	000.250 mm	000.800 mm	000.050 mm
3	SMD rectangular with rounded corners	000.250 mm	000.800 mm	000.050 mm
4	SMD rectangular with rounded corners	000.250 mm	000.800 mm	000.050 mm
5	SMD rectangular with rounded corners	000.250 mm	000.800 mm	000.050 mm
6	SMD rectangular with rounded corners	000.250 mm	000.800 mm	000.050 mm
7	SMD rectangular with rounded corners	000.250 mm	000.800 mm	000.050 mm
8	SMD rectangular with rounded corners	000.250 mm	000.800 mm	000.050 mm
9	SMD rectangular with rounded corners	000.250 mm	000.800 mm	000.050 mm
10	SMD rectangular with rounded corners	000.250 mm	000.800 mm	000.050 mm
11	SMD rectangular with rounded corners	000.250 mm	000.800 mm	000.050 mm
12	SMD rectangular with rounded corners	000.250 mm	000.800 mm	000.050 mm
13	SMD rectangular with rounded corners	000.250 mm	000.800 mm	000.050 mm
14	SMD rectangular with rounded corners	000.250 mm	000.800 mm	000.050 mm
15	SMD rectangular with rounded corners	000.250 mm	000.800 mm	000.050 mm
16	SMD rectangular with rounded corners	000.250 mm	000.800 mm	000.050 mm
17	SMD rectangular with rounded corners	000.250 mm	000.800 mm	000.050 mm
18	SMD rectangular with rounded corners	000.250 mm	000.800 mm	000.050 mm
19	SMD rectangular with rounded corners	000.250 mm	000.800 mm	000.050 mm
20	SMD rectangular with rounded corners	000.250 mm	000.800 mm	000.050 mm
21	SMD rectangular with rounded corners	000.250 mm	000.800 mm	000.050 mm
22	SMD rectangular with rounded corners	000.250 mm	000.800 mm	000.050 mm
23	SMD rectangular with rounded corners	000.250 mm	000.800 mm	000.050 mm
24	SMD rectangular with rounded corners	000.250 mm	000.800 mm	000.050 mm
25	SMD rectangular with rounded corners	000.250 mm	000.800 mm	000.050 mm
26	SMD rectangular with rounded corners	000.250 mm	000.800 mm	000.050 mm
27	SMD rectangular with rounded corners	000.250 mm	000.800 mm	000.050 mm
28	SMD rectangular with rounded corners	000.250 mm	000.800 mm	000.050 mm
29	SMD rectangular with rounded corners	000.250 mm	000.800 mm	000.050 mm
30	SMD rectangular with rounded corners	000.250 mm	000.800 mm	000.050 mm
31	SMD rectangular with rounded corners	000.250 mm	000.800 mm	000.050 mm
32	SMD rectangular with rounded corners	000.250 mm	000.800 mm	000.050 mm
33	SMD rectangular with rounded corners	000.250 mm	000.800 mm	000.050 mm
34	SMD rectangular with rounded corners	000.250 mm	000.800 mm	000.050 mm
35	SMD rectangular with rounded corners	000.250 mm	000.800 mm	000.050 mm
36	SMD rectangular with rounded corners	000.250 mm	000.800 mm	000.050 mm
37	SMD rectangular with rounded corners	000.250 mm	000.800 mm	000.050 mm
38	SMD rectangular with rounded corners	000.250 mm	000.800 mm	000.050 mm
39	SMD rectangular with rounded corners	000.250 mm	000.800 mm	000.050 mm
40	SMD rectangular with rounded corners	000.250 mm	000.800 mm	000.050 mm
PAD	EP	-	-	-

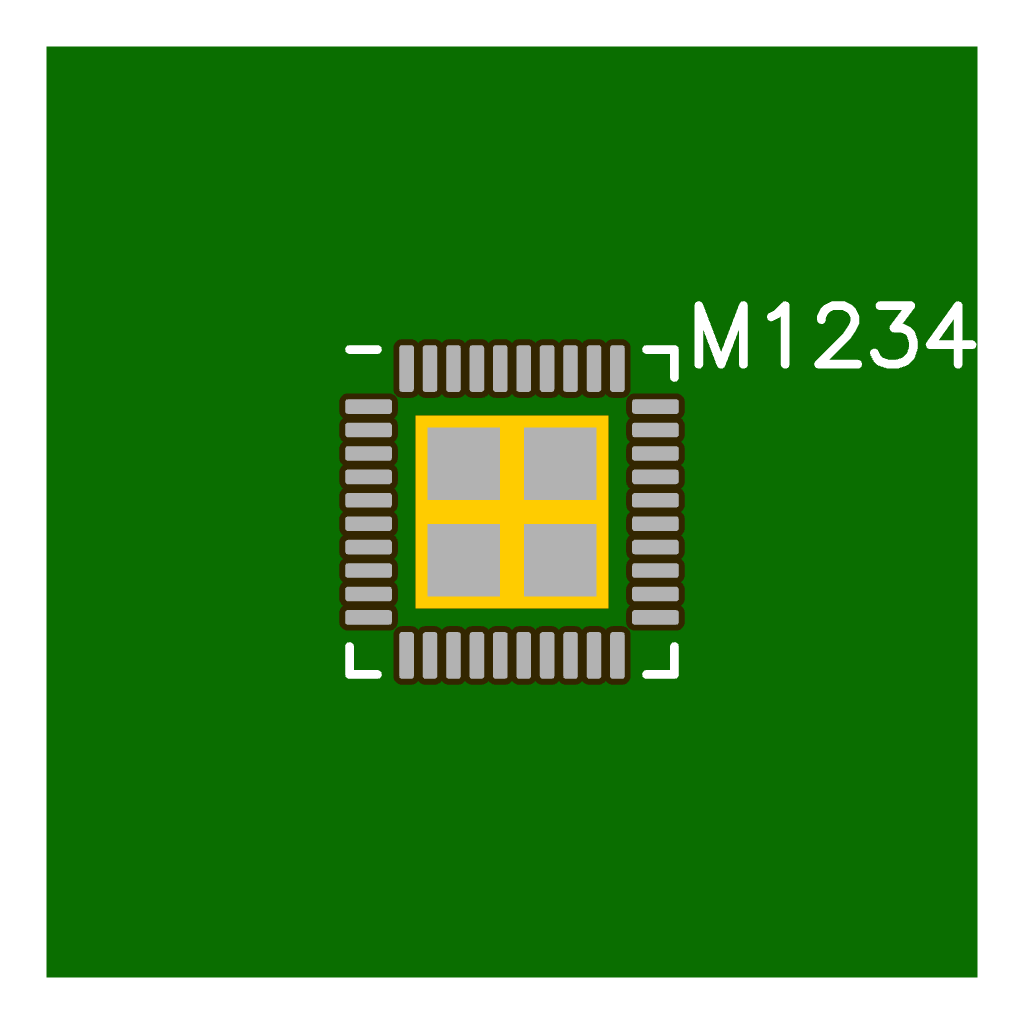

3D views (no models)

Without model

Top	Bottom

Pitch analysis

X	Y	Count
000.000 mm	000.400 mm	18
000.400 mm	000.000 mm	18
000.650 mm	000.650 mm	3
001.800 mm	002.450 mm	1
002.450 mm	001.800 mm	1

[RX14]

Thanks for the contribution! Usually for chips this small we don't split them into separate units. Especially here where there's an io mux that lets you reassign the pins anyway. USB_D+ and USB_D- also seem to have their GPIO numbers wrong in the alternate functions, might be worth double-checking the mapping since I didn't check them all.

[jue89]

Thanks for your feedback :) I'll address it during the days.
