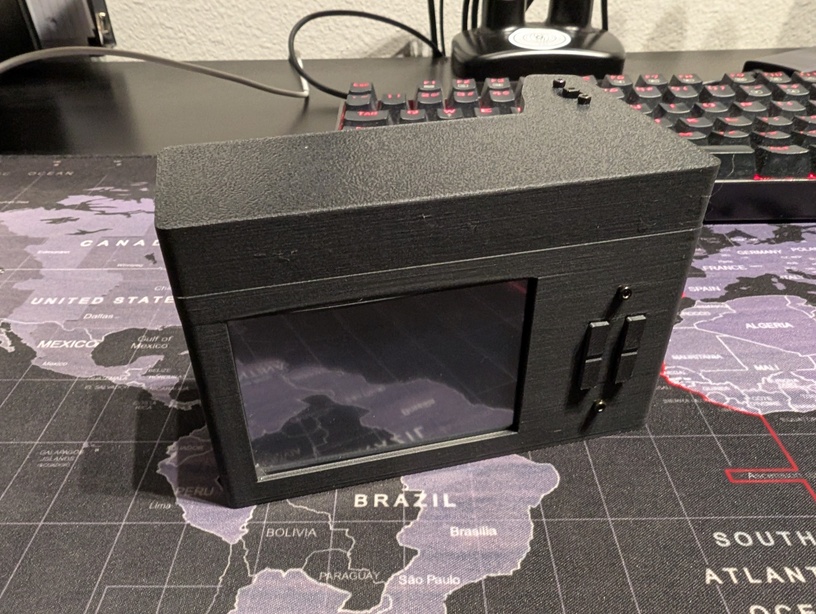

DIY Pi Camera

Sample Camera Images

Features:

Manual Camera Settings:

ISO and Shutter Speed can be changed using the dedicated buttons to cycle through the default values.

ISO Range : 100 - 2100
Shutter Speed : 1/8000 - 3 Secs

Gallery:

Gallery interface to view and download the images using an interactive webapp when connected to same WiFi.

python3 app.py

Adding CV/ML Features:

Focus Peaking and Face detection using Haar cascade.

Add your own CV module and styling in the image_processer.py

def yourcustom_cv_function(image):
    #add your CV processing here
    pass

Run

python3 run_picam.py

Parts and Assembly

Parts

• RPi 4B.
• Display module LCD.
• Battery - Pisugar S plus.
• Buttons and fasteners.

With little bit of soldering and 3D modelling, assembling all parts together.

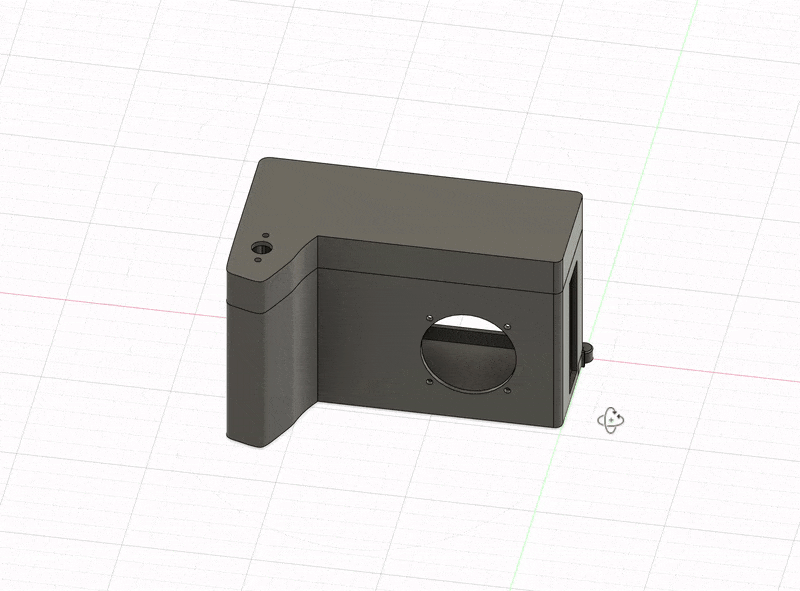

Used Fusion-360 to give a simple design. Here: STL files or here.

Please raise a PR for any file/ parts request if I missed anything, I can add it here.
