Sqlite Viewer

A lightweight offline web application for browsing and inspecting SQLite databases right in your browser. Built using modern React, sql.js, and fully installable as a Progressive Web App (PWA).

Features

• Load and explore .db files directly in the browser.

• Visualize relationships between tables.

• Build and run custom SQL queries using a visual interface or raw SQL.

• Export data as CSV.

• Offline support via IndexedDB.

• Installable as a PWA. (Add to Home Screen)

Toolset for Working with Databases

The application provides three powerful tools to interact with SQLite databases:

1. Tables View

• Explore and interact with your database tables

• Filter, sort, pin, reorder, and resize columns

• Pagination support for large datasets

• Column headers display:

  • Primary key icons
  • Foreign key indicators
  • Data type icons (if mapped)

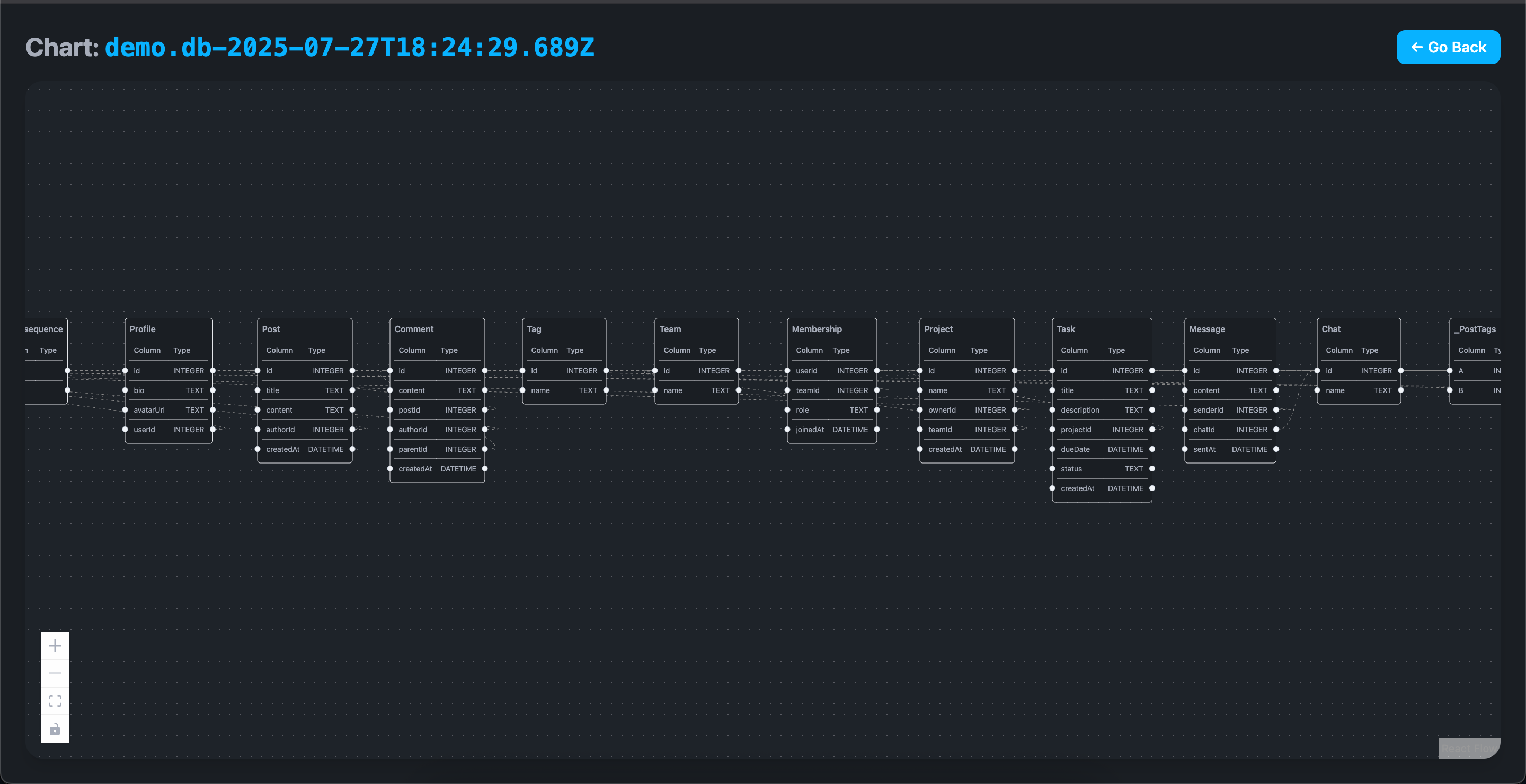

2. Charts View

• Visualize table structure and relationships.

• Built with @xyflow/react

• Tables are rendered as draggable nodes on a canvas

• Foreign key relationships are automatically detected and visualized

• Columns display associated data types

3. Query Builder

• Build and run custom SQL queries using an interactive UI

• Visual query builder with intuitive components

• Query history panel tracks previously created queries

• Optional raw SQL editor using CodeMirror

• Validate and execute queries

• View query results in the Tables view

Tech Stack

• Frontend: React 19

• Styling: TailwindCSS

• SQLite Engine: sql.js

• IndexedDB: idb

• Editor: CodeMirror 6

• Charts: @xyflow/react

• Table UI: @tanstack/react-table

• Routing: react-router-dom

• CSV Export: react-csv

Getting Started

Prerequisites Node.js ≥ 18

npm or yarn

Installation

git clone https://github.com/your-username/sqlite-viewer.git
cd sqlite-viewer
npm install

Run the app locally

npm run dev

Build for production

npm run build

PWA Support

• This app can be installed on desktop or mobile as a Progressive Web App:

• Works offline using service workers

• "Add to Home Screen" prompt available on supported browsers

• Optimized for mobile and touch interfaces

Roadmap

Project Setup & Core Functionality

• Create initial project structure and setup
• Ensure .db files can be uploaded and handled
• Load databases from IndexedDB
• Implement context for interactive CRUD operations with IndexedDB
• Add support to remove databases from IndexedDB
• Setup testing environment with Vitest
• Write and run tests for context and custom hooks
• PWA and Meta Data.

UI & Layout

• Design nested database layout and routing
• Add sidebar navigation for tables and main content area
• Redirect home route to Tables page
• Create user databases page with .db listing
• Skeleton loaders for async content
• Wrap all major components/routes in error boundaries
• Add a dedicated support/help page

Tables View

• Display all tables from the selected database
• Add pagination for large datasets
• Enable column resizing, sorting, and pinning
• Add multi-filtering and custom search
• Display column data types in headers
• Show primary and foreign key icons in headers
• Style and finalize table components
• Export table data as CSV
• Add tests for table components
• Add/remove filters dynamically

Charts View (Database Diagram)

• Visualize tables as nodes using React Flow
• Display foreign key relationships as edges
• Show column data types within each table node
• Allow canvas interaction (drag, zoom, pan)

Query Builder

• Create a visual query builder with interactive components
• Maintain query history in a side panel
• Integrate CodeMirror editor for raw SQL input
• Execute and validate queries
• Redirect to Tables view to display query results

Planned Features

The following enhancements are planned and currently under development:

• Support for mutations (INSERT, UPDATE, DELETE) directly within the Query Builder / Playground.

• better builder table with more features.

• Improved UX for writing and debugging raw SQL.

• More advanced visual query composition with join suggestions.

Creator

Priyang Patel

License

MIT License
