Integrating the RAPTOR foundation policy #26082

jonas-eschmann · 2025-12-11T01:30:33Z

As requested by @mrpollo here I moved the Raptor implementation from an out-of-tree module into a proper in-tree module. It uses the external mode registration.

Raptor is an end-to-end foundation policy that takes position, orientation, linear velocity and angular velocity as inputs and outputs motor commands (actuator_motors). The policy is adaptive and can control virtually any quadrotor, zero-shot. We tested it on 10 different real quadrotors (from 30g to 2.4kg). More info can be found here: https://raptor.rl.tools/.

The goal of this integration is to provide a baseline for reinforcement learning-based quadrotor control research. This module is a robust baseline as well as a starting point for researchers and practitioners to train and deploy their own end-to-end control policies.

A highlight feature of this new implementation is that the neural network weights can be loaded from the SD card and (unlike the nn_mc_control module) do not need to be compiled into the firmware. This drastically reduces the flash usage and allows testing new neural networks without re-flashing the flight controller and remotely by transferring the checkpoint via Mavlink FTP.

The policy is trained for position control (controlling the position error to zero) but as we show in the paper also performs well for trajectory tracking (by offsetting position and linear velocity with the desired values from the trajectory). Hence, this module supports receiving trajectory_setpoint. The problem is that the forwarding of the trajectory setpoint from Mavlink is hardcoded to require the offboard mode in mavlink_receiver.cpp. Because of this we propose to add a request_offboard_setpoints into the mode registration request. In combination with minimal adjustments in the commander and mode management, this allows to forward the setpoint in a configurable way.

The neural networks are trained and run using RLtools, a pure C++, dependency-free, header-only library. It was created with a major focus on stability and is maintained by me. Compared to e.g. Tensorflow Lite I expect it to cause less issues going forward due to its simplicity.

We tested the previous implementation (OOT module) extensively on three different real platforms. This implementation shares major parts of the code with that but has not been tested on a real platform, yet (I will hopefully be able to test it next week). But I tested it in the SITL and SIH. These are the steps I use to run it:

SITL

Standalone Usage (Without External Trajectory Setpoint)

Build PX4 SITL with Raptor, disable QGC requirement, and adjust the IMU_GYRO_RATEMAX to match the simulation IMU rate

make px4_sitl_raptor gz_x500
param set NAV_DLL_ACT 0
param set COM_DISARM_LAND -1 # When taking off in offboard the landing detector can cause mid-air disarms
param set IMU_GYRO_RATEMAX 250 # Just for SITL. Tested with IMU_GYRO_RATEMAX=400 on real FCUs
param set MC_RAPTOR_ENABLE 1
param set MC_RAPTOR_OFFB 0

Upload the RAPTOR checkpoint to the "SD card": Separate terminal

mavproxy.py --master udp:127.0.0.1:14540
ftp mkdir /raptor # for the real FMU use: /fs/microsd/raptor
ftp put src/modules/mc_raptor/blob/policy.tar /raptor/policy.tar

restart (ctrl+c)

make px4_sitl_raptor gz_x500
commander takeoff
commander status

Note the external mode ID of RAPTOR in the status report

commander mode ext{RAPTOR_MODE_ID}

Usage with External Trajectory Setpoint

Send Lissajous setpoints via Mavlink:

pip install px4
px4 udp:localhost:14540 track lissajous --A 2.0 --B 1.0 --duration 10 --ramp-duration 5 --takeoff 10.0 --iterations 2

SIH

make px4_fmu-v6c_raptor upload

In QGroundControl:

Airframes => SIH Quadrotor X
Settings => Comm Links => Disable Pixhawk (disable automatic USB serial connection)

mavproxy.py --master /dev/serial/by-id/usb-Auterion_PX4_FMU_v6C.x_0-if00 --out udp:localhost:14550 --out udp:localhost:13337 --out udp:localhost:13338

New terminal (optional):

./Tools/mavlink_shell.py udp:localhost:13338

param set SIH_IXX 0.005
param set SIH_IYY 0.005
param set SIH_IZZ 0.010
param set IMU_GYRO_RATEMAX 400
param save
reboot

New terminal:

./Tools/simulation/jmavsim/jmavsim_run.sh -u -p 13337 -o

bump compiles and raptor mode appears hovering with RAPTOR seems to work Using Raptor to execute offboard commands works (using multirobot f03825a5795a77c5a095f799eeb8e0b646fe7176 to feed the trajectory_setpoint). Requires more testing simplified rotmat runtime inference frequency multiple arming request response reflects actual readiness adjusting to fit IMU gyro ratemax relaxing control timing warning thresholds for SITL Using mode registration to signal if offboard commands should be forwarded to trajectory_setpoint instead of just hardcoding vehicle_status.nav_state == vehicle_status_s::NAVIGATION_STATE_OFFBOARD adopting new "request_offboard_setpoint" in raptor module replace offboard seems good mc_raptor: overwrite offboard parameter separate raptor config addendum Raptor off by default RAPTOR readme Loading raptor checkpoint from tar works. check if load was successful refactoring: cutting out the pure C interface to allow direct testing of the policy input/output behavior from the file, without fully loading it into memory first adapter not needed anymore ripping out test observation mode (not used in a long time) fixing warnings bump RLtools to fix the remaining warnings Loading RAPTOR checkpoint from sdcard seems to work on FMU-6C embedding Raptor policy into flash works again also printing checkpoint name when using the embedded policy cleaner handling of the checkpoint name back to reading from file ripping out visual odometry checks cleaner more debug but no success bump rlt bump pre next rebase we can publish the no angvel update because we latch onto it with the scheduled work item anyways this kind of runs on the 6c still bad SIH almost flying saving stale traj setpoint yaw new error. timestamp not the problem anymore bump rlt; SIH works with executor shaping up bumping blob (include tar checkpoint) cleaning up fixing formatting update readme

bump compiles and raptor mode appears hovering with RAPTOR seems to work Using Raptor to execute offboard commands works (using multirobot f03825a5795a77c5a095f799eeb8e0b646fe7176 to feed the trajectory_setpoint). Requires more testing simplified rotmat runtime inference frequency multiple arming request response reflects actual readiness adjusting to fit IMU gyro ratemax relaxing control timing warning thresholds for SITL Using mode registration to signal if offboard commands should be forwarded to trajectory_setpoint instead of just hardcoding vehicle_status.nav_state == vehicle_status_s::NAVIGATION_STATE_OFFBOARD adopting new "request_offboard_setpoint" in raptor module replace offboard seems good mc_raptor: overwrite offboard parameter separate raptor config addendum Raptor off by default RAPTOR readme Loading raptor checkpoint from tar works. check if load was successful refactoring: cutting out the pure C interface to allow direct testing of the policy input/output behavior from the file, without fully loading it into memory first adapter not needed anymore ripping out test observation mode (not used in a long time) fixing warnings bump RLtools to fix the remaining warnings Loading RAPTOR checkpoint from sdcard seems to work on FMU-6C embedding Raptor policy into flash works again also printing checkpoint name when using the embedded policy cleaner handling of the checkpoint name back to reading from file ripping out visual odometry checks cleaner more debug but no success bump rlt bump pre next rebase we can publish the no angvel update because we latch onto it with the scheduled work item anyways this kind of runs on the 6c still bad SIH almost flying saving stale traj setpoint yaw new error. timestamp not the problem anymore bump rlt; SIH works with executor shaping up bumping blob (include tar checkpoint) cleaning up fixing formatting update readme updating gitignore

hamishwillee · 2025-12-17T05:53:15Z

src/modules/mavlink/mavlink_receiver.cpp


-			if (vehicle_status.nav_state == vehicle_status_s::NAVIGATION_STATE_OFFBOARD) {
-				// only publish setpoint once in OFFBOARD
+			if (vehicle_status.accepts_offboard_setpoints) {


So your raptor is implemented an external mode like offboard and you still want to publish trajectory setpoints? As long as this still works for offboard this is OK.

I don't understand what Raptor is - foundation policy sounds like some kind of corporate or academic doublespeak. Can you please explain it in little words (I'm a tech writer).

What does it do, who would want to use it, how can they enable it.

This also needs docs enough to answer that.

Yes exactly, it uses the mode registration to register a new mode. I think this is the cleanest way to separate it from the other parts of the control stack and it was also requested by @AlexKlimaj here .

We chose the term "foundation policy" because the way it is trained and the way it works resembles foundation models. "Policy" is the standard term in the reinforcement learning community, it is equivalent to "controller" in the robotics community.

What does it do:
The idea is to have an adaptive policy, that can quickly adapt to any quadrotor by observing its response and adapting its control behavior. The goal is to get rid of the requirement for PID tuning and to be more robust wrt. disturbances or other changes in the dynamics. It is an end-to-end policy, meaning it takes state information (position, orientation, linear velocity, angular velocity) as input and directly outputs motor commands (actuator motors). Please refer to this video: https://www.youtube.com/watch?v=hVzdWRFTX3k and for more details to the paper: https://arxiv.org/abs/2509.11481

Who would want to use it:
Mainly academic use at this point (which is only the beginning), e.g. as a baseline for alternative control methods, but possibly also some commercial use-cases, where, e.g. the hardware (or payload) is changed often and the cost for tuning the controllers is prohibitive.

How can they enable it:
Please refer to the instructions: #26082 (comment). But I also plan to make a short video that shows how to use it step-by-step on a Holybro x500 v2 for the documentation.

I hope I find time to work on the docs in the next days. I'm conducting real-world flight tests for this PR right now

Thanks very much. So this sounds a bit like https://docs.px4.io/main/en/advanced/neural_networks to me. That's just an observation, but it does mean we need to think about positioning this, and if they have overlap, grouping them.

Sorry for the late response but I wanted to do some more thorough real-world testing. I have added documentation in docs/en/advanced/raptor.md, including an interactive playground to test the RAPTOR policy in simulation as well as a trajectory parameter generator app. Please let me know what you think

hamishwillee · 2025-12-17T05:54:22Z

msg/versioned/RaptorInput.msg

@@ -0,0 +1,10 @@
+# TOPICS raptor_input


All of these uorb topics need documentation to the current standard. That is still a work in progress - see #25878

Thanks for letting me know! I have added documentation, please let me know if it meets the current standard

Thanks very much. You followed the rules pretty well, but some of them changed in the last week and I haven't updated the PR. Example see https://github.com/PX4/PX4-Autopilot/pull/26082/files#r2629315765

Thank you! I have updated the RaptorStatus.msg to follow the same formatting conventions that you proposed for RaptorInput.msg

…etpoint (use the position and yaw at activation time as reference instead)

msg/versioned/RaptorInput.msg

hamishwillee · 2025-12-18T02:58:16Z

src/modules/mc_raptor/README.md

@@ -0,0 +1,72 @@
+# RAPTOR


FWIW this is the sort of stuff you'd have in the docs, then link to the docs from here if you need a readme.

Added docs in docs/en/advanced/raptor.md

Jaeyoung-Lim · 2025-12-18T05:50:07Z

@SindreMHegre Could you have a look?

SindreMHegre · 2025-12-18T10:59:01Z

@SindreMHegre Could you have a look?

@Jaeyoung-Lim I think I have time for this tomorrow, will take a look then. But this sounds really promising, adding SD card storage of the network and sending setpoints over Mavlink are huge upgrades over my work! I tried a bit on the setpoints but weren't able to within the time limit of my work.

…s); reverting accidental .gitignore modification

SindreMHegre

I did not have time to look into the details of the actual mc_raptor.cpp and hpp files. But it looks a lot like my module. I think it's really nice to have both options so I think its best to merge the documentation somewhat in the top script and then divide into to sub files for module specific information. If you have any specific questions @jonas-eschmann don't hesitate to ask, and it looks like you've already looked at the mc_nn_module, but if you need the full history you can find it here. It would be really cool to get the possibility to send mavlink setpoints to the mc_nn_module as well, but I can try to ping the lab at NTNU if it's not a quick fix possible to integrate into this PR. The same goes for storing the networks on the SD card, super usefull upgrade that would be great for the mc_nn_control. I still thinks mc_nn_control still has a place in PX4, as it supports using different frameworks and could still be used for other things than control! Really nice to see the possibilities for NNs in PX4 expand and improve!!!!

SindreMHegre · 2025-12-18T11:40:32Z

boards/px4/fmu-v6c/raptor.px4board

+CONFIG_SYSTEMCMDS_VER=y
+CONFIG_SYSTEMCMDS_WORK_QUEUE=y
+CONFIG_LIB_RL_TOOLS=y
+CONFIG_MODULES_MC_RAPTOR=y


Alphabetically sorted?

Good point! I wasn't aware they should be sorted. I sorted ./boards/sitl/raptor.px4board and boards/px4/fmu-v6c/raptor.px4board

SindreMHegre · 2025-12-18T11:41:40Z

boards/px4/sitl/raptor.px4board

+CONFIG_LIB_RL_TOOLS=y
+CONFIG_MODULES_MC_RAPTOR=y


alphabetically sorted?

Sorted in e4ad0a

SindreMHegre · 2025-12-18T11:44:01Z

msg/versioned/VehicleStatus.msg


 uint8 executor_in_charge                        # Current mode executor in charge (0=Autopilot)

+bool accepts_offboard_setpoints                 # True if the current mode accepts offboard trajectory setpoints via MAVLink


shouldn't message version be bumped here as well?

Thanks a lot for the hint! I bumped the version and archived the old one

SindreMHegre · 2025-12-19T09:17:52Z

Also, if this can be used on Ubuntu versions prior to 24, then it should be clear in the docs, as the mc_nn_control module does not, so for those on older versions it would be great with a plug and play neural module

…er Mavlink is too noisy). Quite agile trajectory tracking, good performance

Jaeyoung-Lim · 2025-12-19T18:29:26Z

@SindreMHegre Wouldn't it be better to make the Aerial gym training work with the dynamic loading of neural networks?

For me I think it might be a good opportunity to get rid of the tfmicro dependency, and the convoluted CMake hacks we had to go through if we can make them share the neural network infrastructure.

Co-authored-by: Hamish Willee <[email protected]>

…equest v2

github-actions · 2025-12-30T21:30:00Z

No flaws found

jonas-eschmann · 2025-12-30T21:55:37Z

@SindreMHegre Thanks a lot for the review! Your implementation, particularly using the external mode registration, was very useful as a guide! We have had an out-of-tree module solution (one-line modification to PX4 to use actuator_motors from our module's topic + out-of-tree modules that handle trajectory generation, inference etc.) for two years now but for upstreaming using the external mode registration is much cleaner!

Also, if this can be used on Ubuntu versions prior to 24, then it should be clear in the docs, as the mc_nn_control module does not, so for those on older versions it would be great with a plug and play neural module

This should work on any OS/version, as long as the C++ compiler supports C++17 (GCC/Clang/MSVC releases from 2017/2018 onwards).

In the meantime, I have also conducted extensive outdoor flying tests using mc_raptor for control (up to 17 m/s) and it is very reliable. I experienced zero hiccups and no crashes and think it is really stable and easy to use at this point.

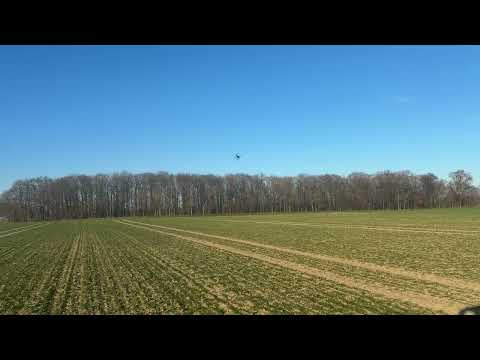

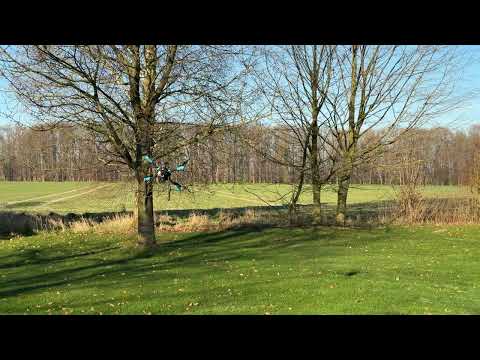

Videos (links to YouTube):

I have also added relatively extensive documentation in docs/en/advanced/raptor.md

@Jaeyoung-Lim Please let me know how to proceed

jonas-eschmann added 2 commits December 10, 2025 16:48

mrpollo requested review from MaEtUgR, bkueng, dagar and dakejahl December 11, 2025 01:54

jonas-eschmann added 2 commits December 10, 2025 18:24

fixing format and declaring submodules as cmake dependencies

d4cd8fc

fixing format and declaring submodules as cmake dependencies

1fe0683

mrpollo requested a review from hamishwillee December 12, 2025 02:25

hamishwillee reviewed Dec 17, 2025

View reviewed changes

jonas-eschmann added 4 commits December 17, 2025 09:08

adding uORB message documentation

c66849e

fixing comment alignment

9d9c161

Adding option to restrict mc_raptor to not listen to the trajectory_s…

5b7e61e

…etpoint (use the position and yaw at activation time as reference instead)

bump RLtools; relax timing thresholds and adding real world readme

5d346df

hamishwillee reviewed Dec 18, 2025

View reviewed changes

msg/versioned/RaptorInput.msg Show resolved Hide resolved

hamishwillee reviewed Dec 18, 2025

View reviewed changes

jonas-eschmann added 2 commits December 19, 2025 08:49

smooth traj tracking performance

6120cc6

Measuring trajectory_setpoint timing (providing stats in raptor_statu…

f0a740f

…s); reverting accidental .gitignore modification

SindreMHegre reviewed Dec 19, 2025

View reviewed changes

jonas-eschmann added 4 commits December 19, 2025 11:08

More ideomatic way of setting the path to the policy checkpoint

7b89fa1

Reset trajectory_setpoint on raptor mode activation

4579f7f

Adding internal trajectory generation (feeding trajectory_setpoint ov…

f159d9a

…er Mavlink is too noisy). Quite agile trajectory tracking, good performance

stable flight

e0902d5

jonas-eschmann and others added 2 commits December 22, 2025 14:30

Update msg/versioned/RaptorInput.msg

d2f6622

Co-authored-by: Hamish Willee <[email protected]>

adopting message formatting conventions

7f7775f

jonas-eschmann added 8 commits December 22, 2025 14:50

sort raptor.px4board

e4ad0ad

Archiving RegisterExtComponentRequestV1.msg

e906ea3

Add message versioning for VehicleStatus v2 and RegisterExtComponentR…

3a0b2c4

…equest v2

fixing formatting

7e35f55

making internal reference configurable via command

d26f620

RAPTOR docs wip

ee140d6

raptor internal reference documentation

37750b4

Finishing RAPTOR docs first draft

a9fdd1d

github-actions bot added the Documentation 📑 label Dec 30, 2025

jonas-eschmann added 3 commits December 30, 2025 21:58

adding logging instructions

ab3be79

Fixing missing command documentation test error

a5f2866

fixing format

74a1f89

adding motor layout warning

5cfd439


		uint8 executor_in_charge # Current mode executor in charge (0=Autopilot)

		bool accepts_offboard_setpoints # True if the current mode accepts offboard trajectory setpoints via MAVLink
