Grid Brush

The grid brush generates a grid pattern with configurable thickness and spacing.

• Parameters
  • Thickness
• Axis Modes
• Examples
• Download

Parameters

Parameter	Description
Color A	Color index of the lines
Color B	Color index of the boxes in between the lines
Thickness	Line thickness
Size X	Spacing between lines on the X-axis
Size Y	Spacing between lines on the Y-axis
Size Z	Spacing between lines on the Z-axis

Setting Color A to 0 will result in gaps, instead of lines. Similarly, setting Color B to 0 will only produce lines (with no boxes in between).

Thickness

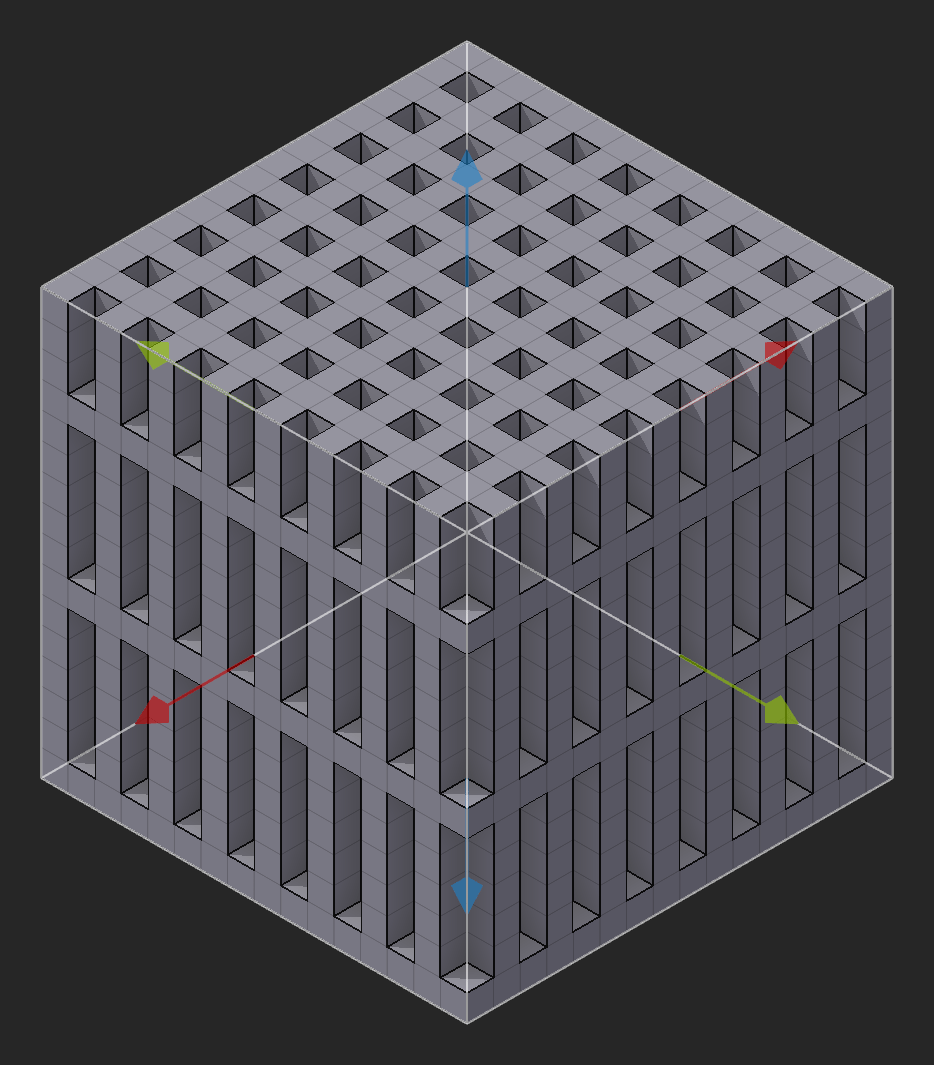

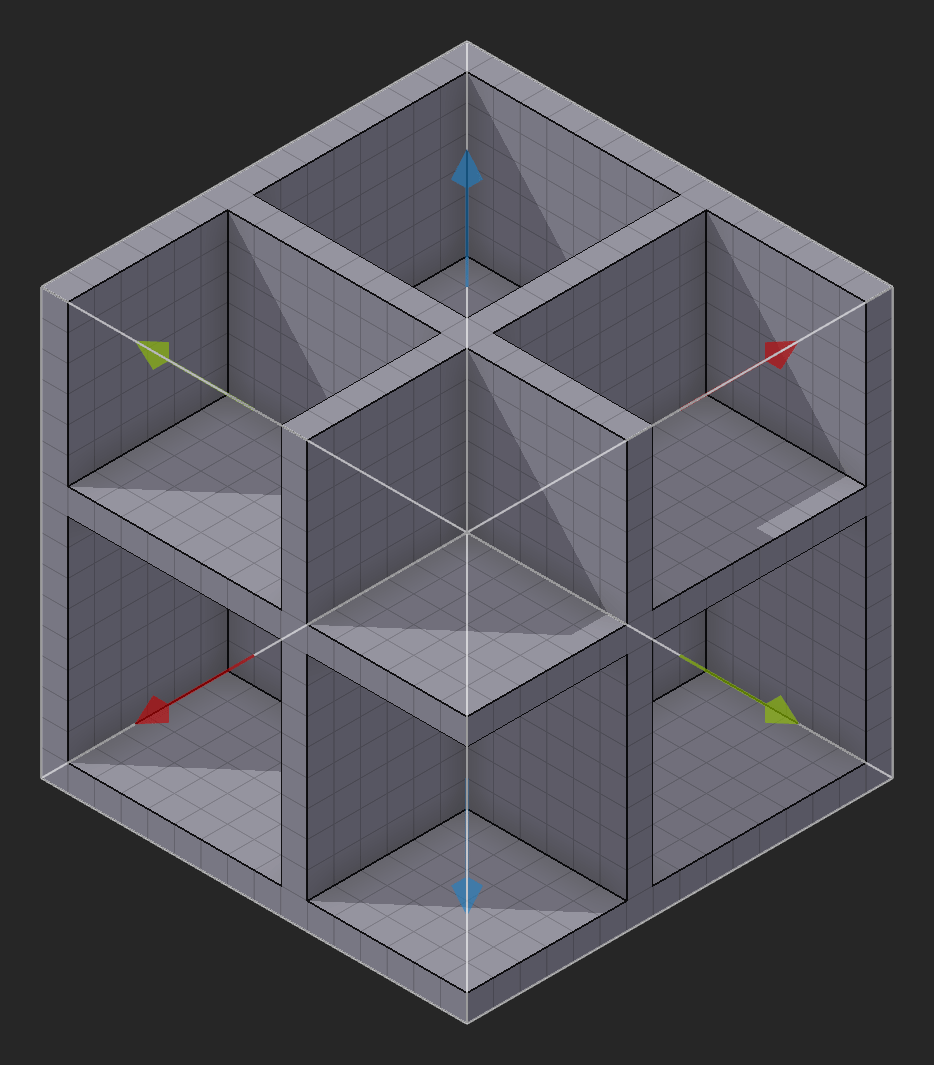

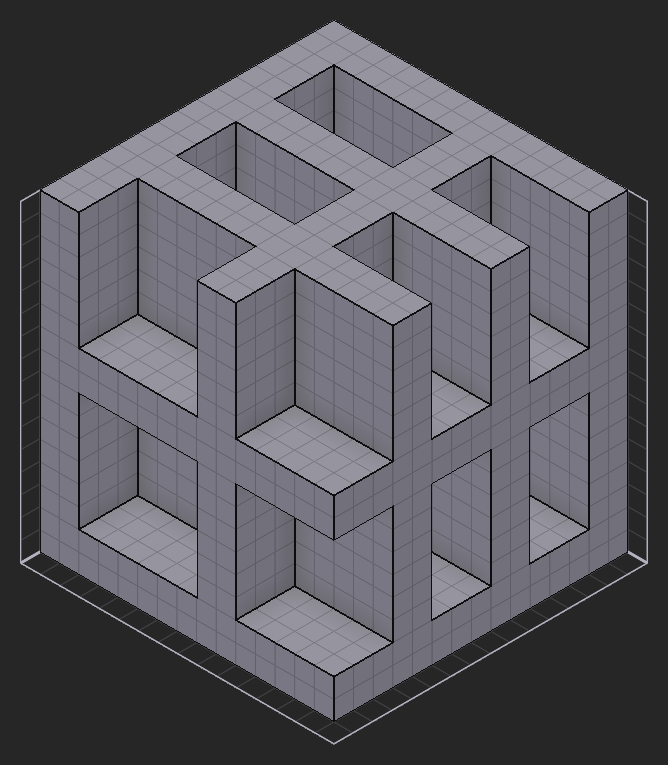

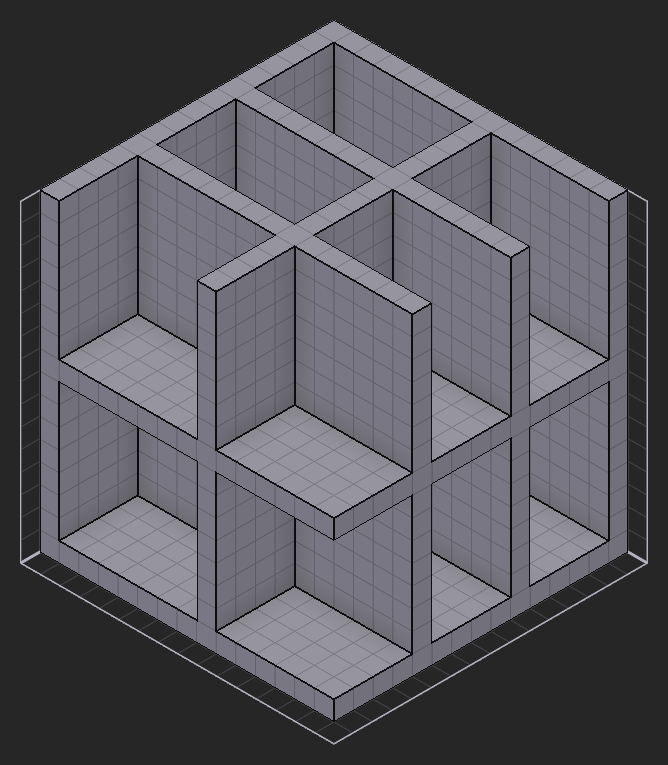

Thickness: 1	Thickness: 2

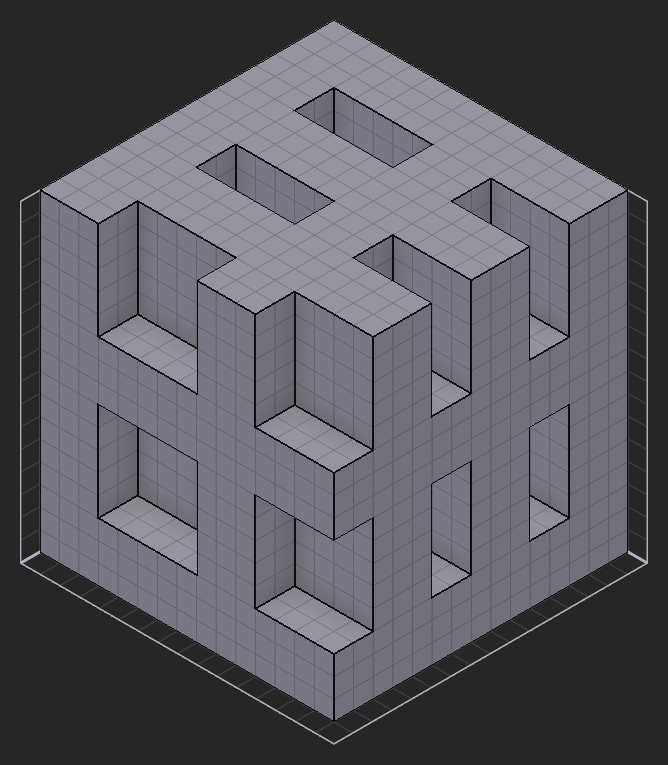

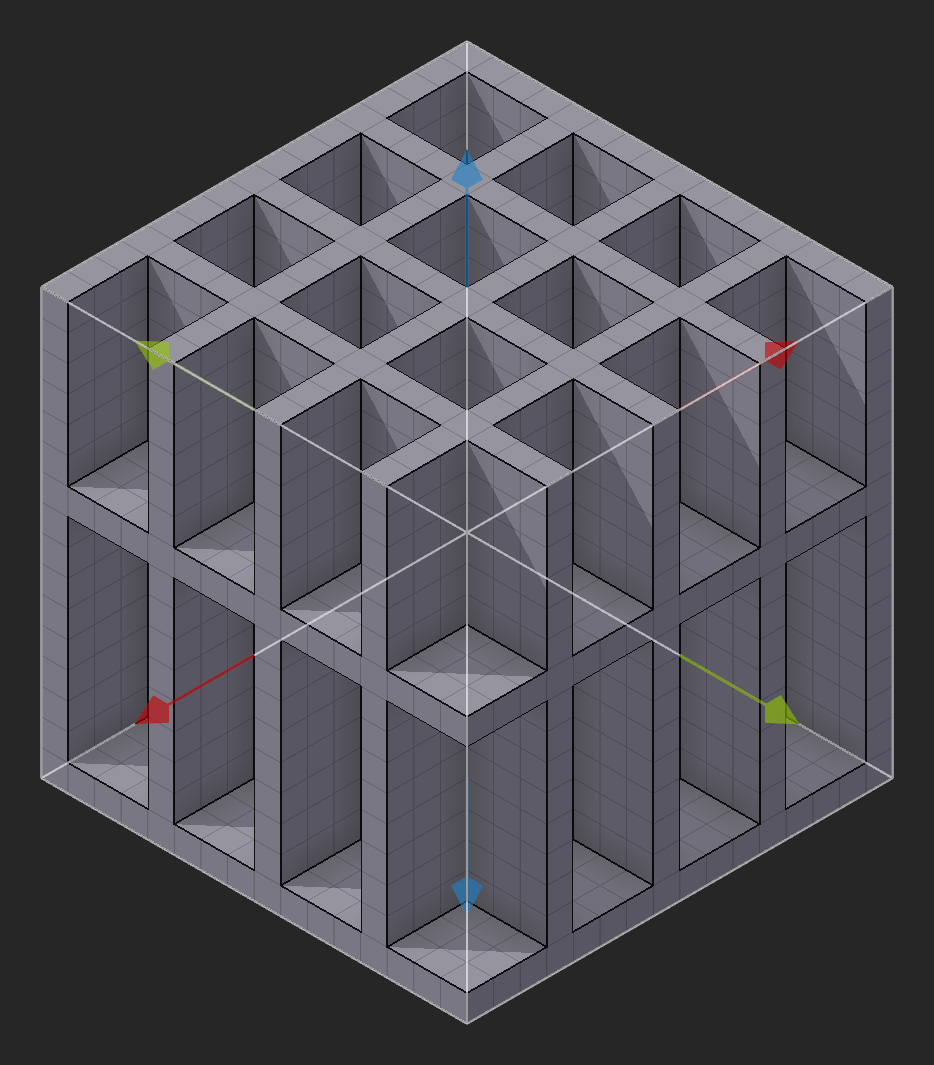

Thickness: 3	Thickness: 4

Axis Modes

Axis Modes can be used to ensure voxels are only generated on certain axes:

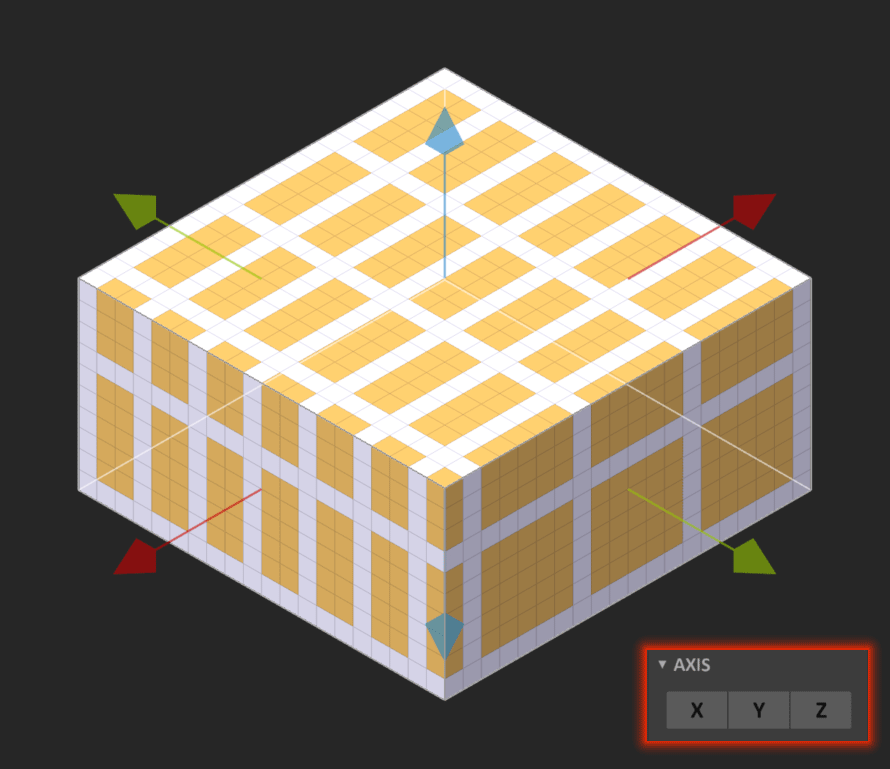

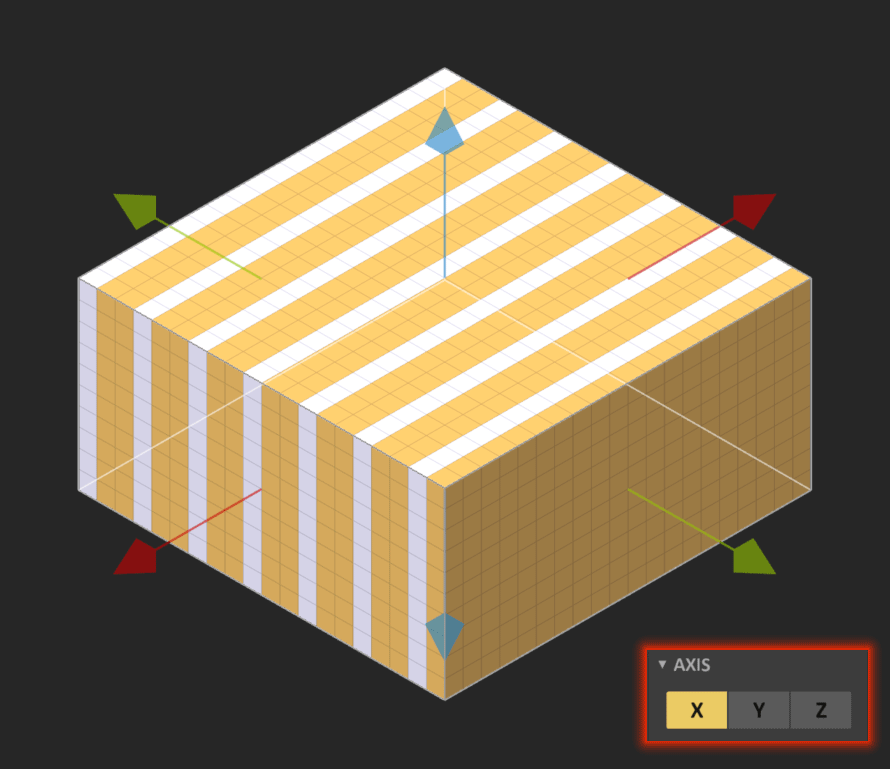

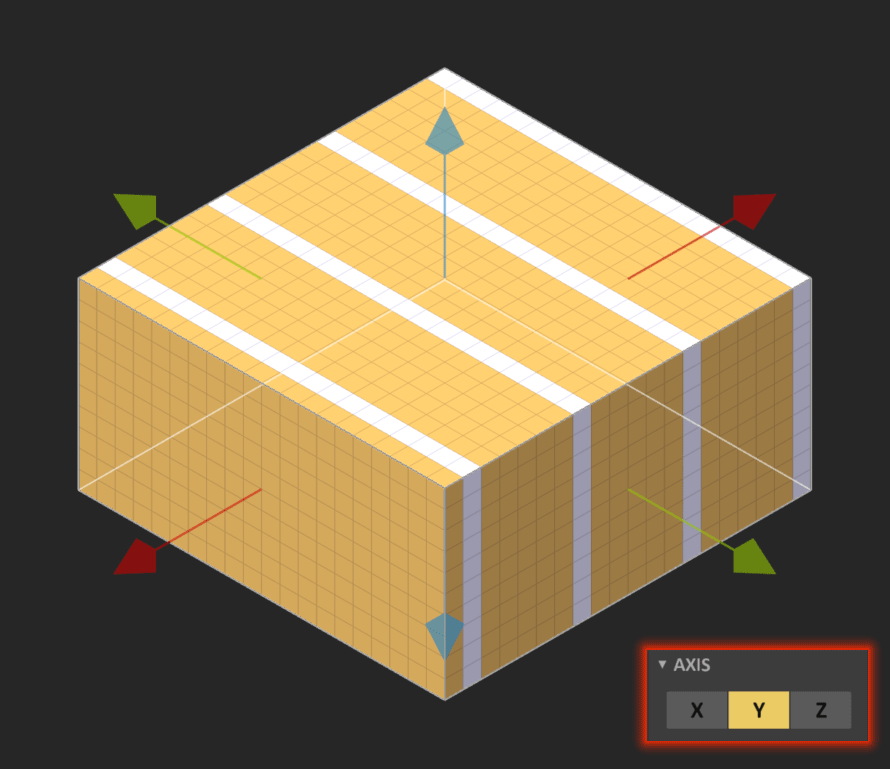

No set axis mode	X-axis mode	Y-axis mode

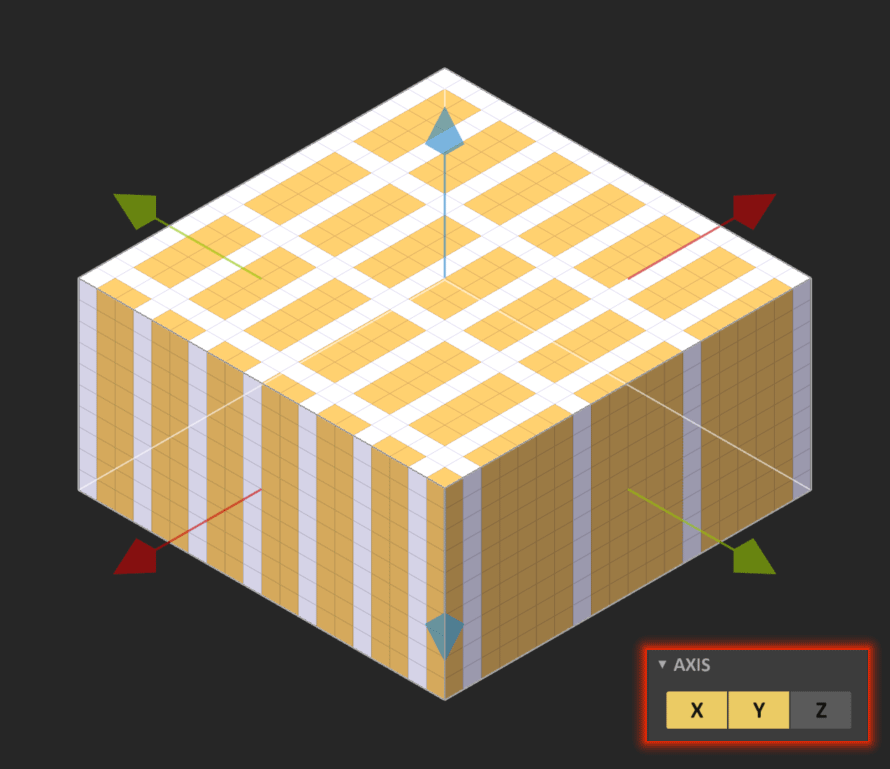

X & Y-axis mode	Z-axis mode

Examples

Download

View the shaders below or download the latest release:

• brush/grid
