Moisture

The moisture shader updates nearby voxels to a target colour, creating the effect of downward-streaks (such as moss or water damage) or upward-streaks (such as burn marks or surface dirt.)

• Parameters
  • Direction & Flip
  • Scale
  • Min & Max Length
  • Jitter

Parameters

Parameter	Description
Target Color	Color where streaks should appear (will be replaced)
Direction	0 for downward streaks, 1 for upward streaks
Min Length	Minimum streak length
Max Length	Maximum streak length
Scale	Scale of the noise pattern
Flip	Reverse the palette order
Jitter	Additional color noise
Seed	Global seed

Direction & Flip

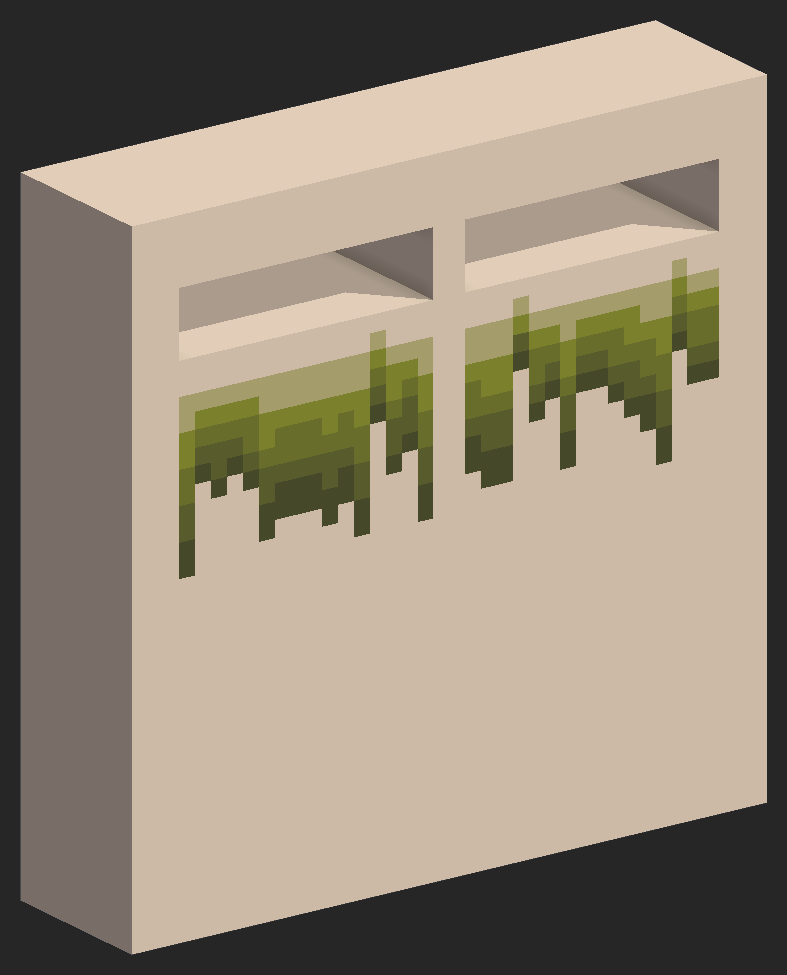

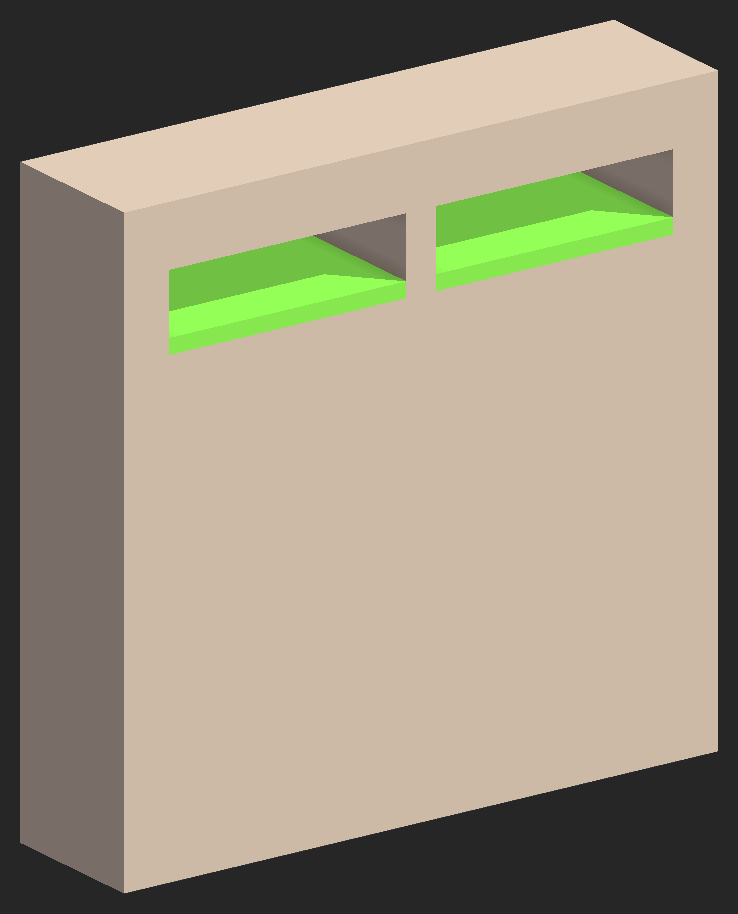

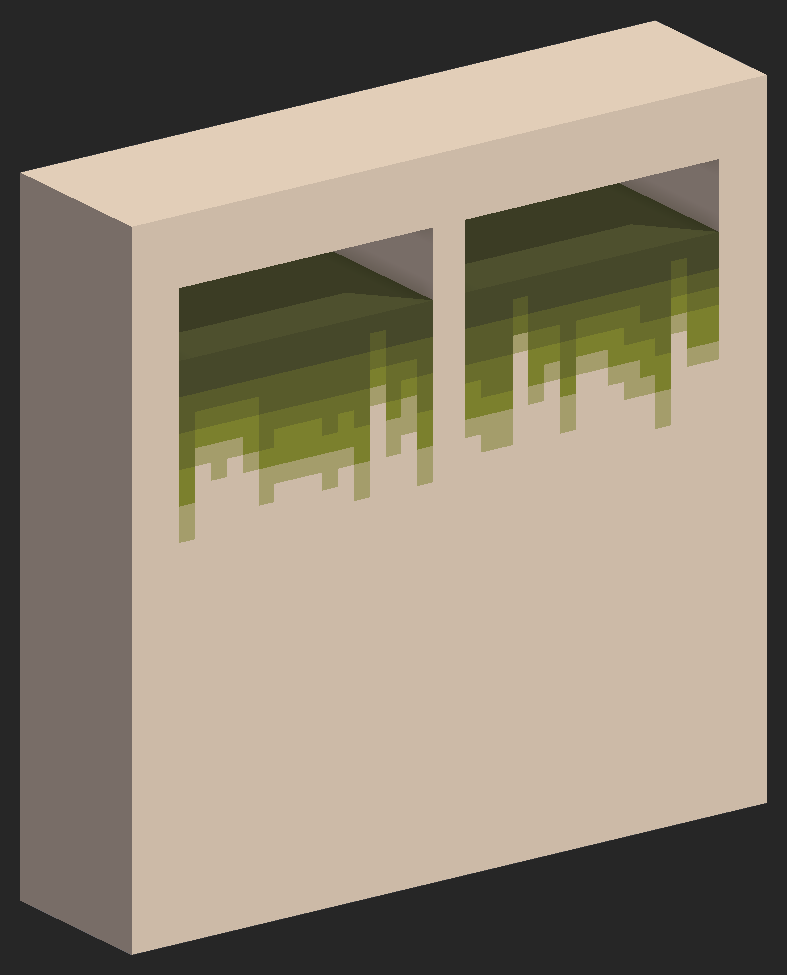

Input	Direction 0 Flip 0	Direction 0 Flip 1

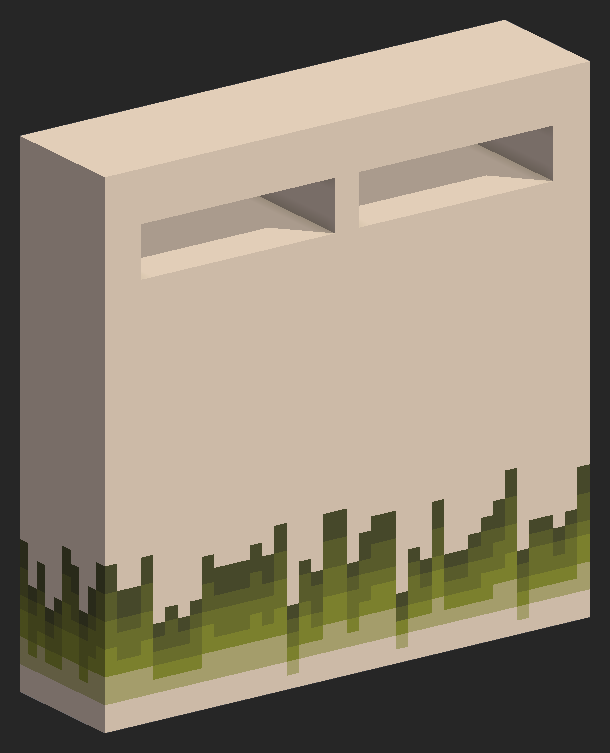

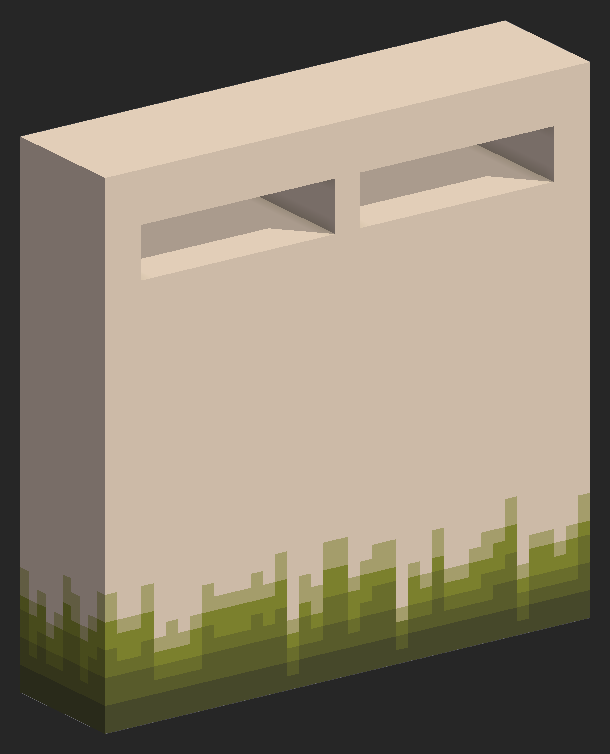

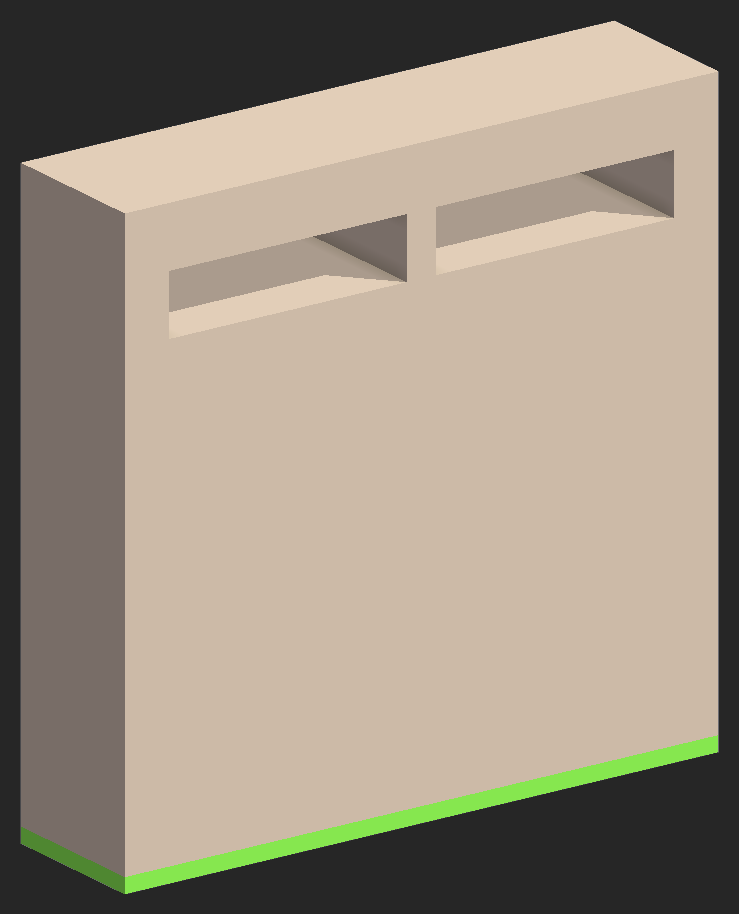

Input	Direction 1 Flip 0	Direction 1 Flip 1

Scale

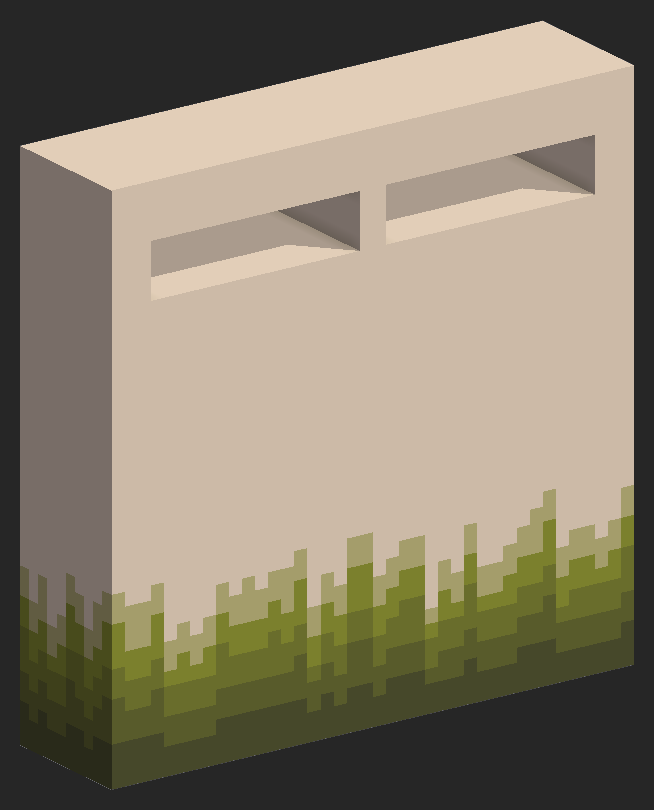

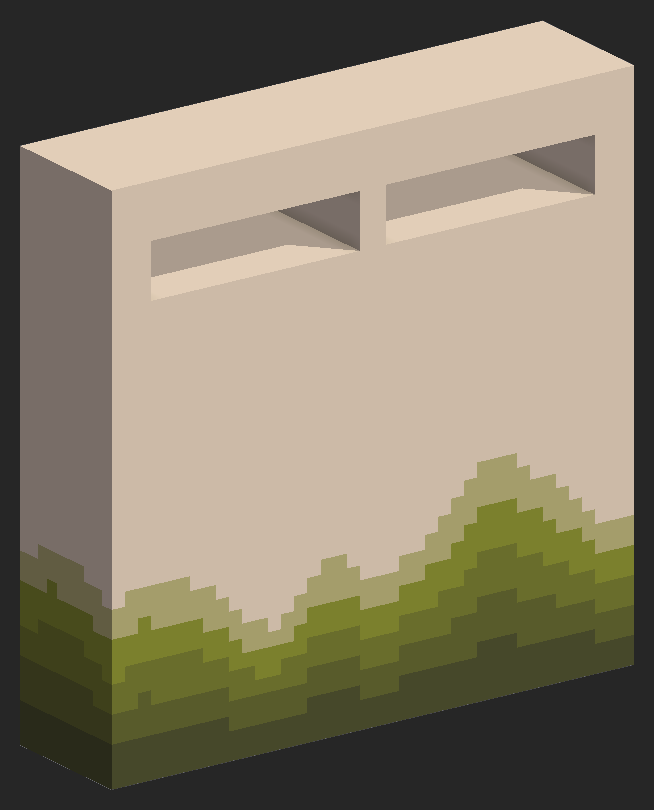

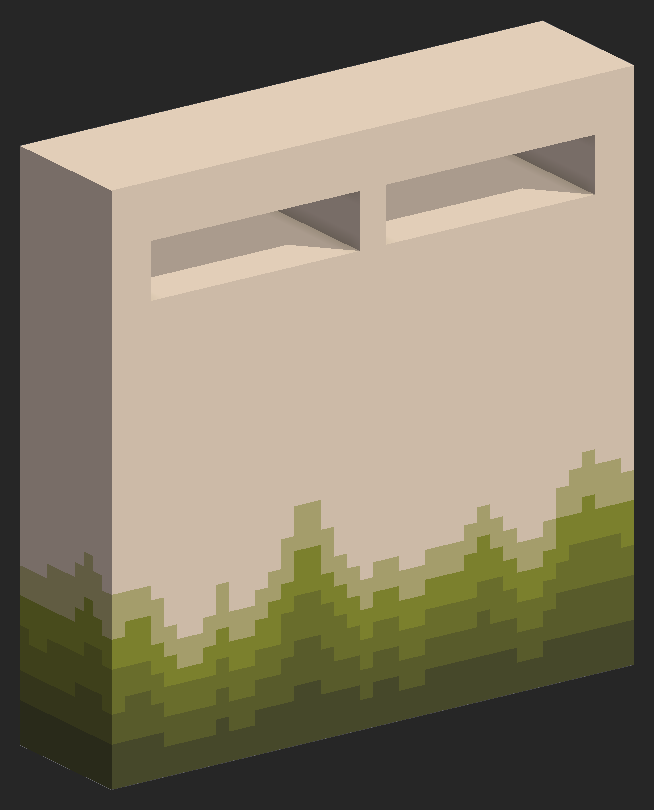

Scale: 1	Scale: 5	Scale: 10

Min & Max Length

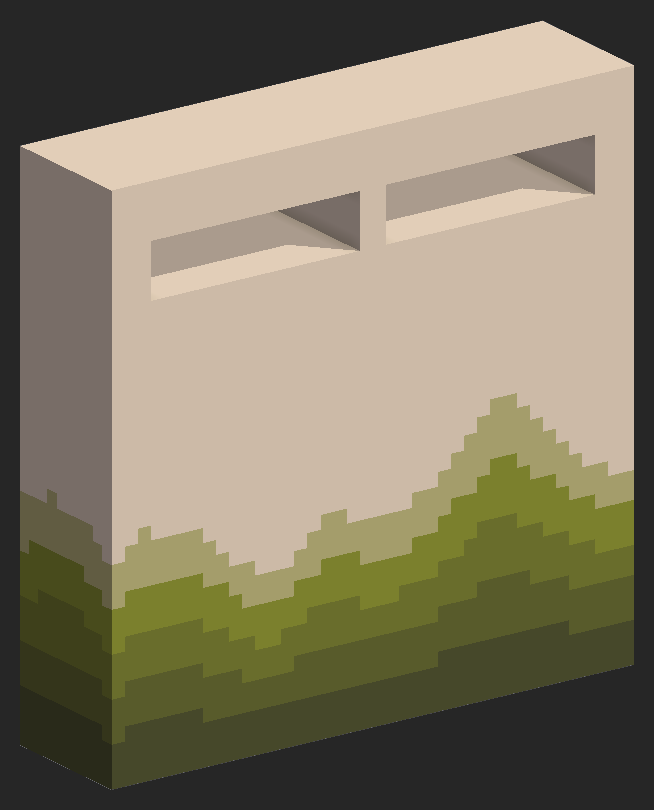

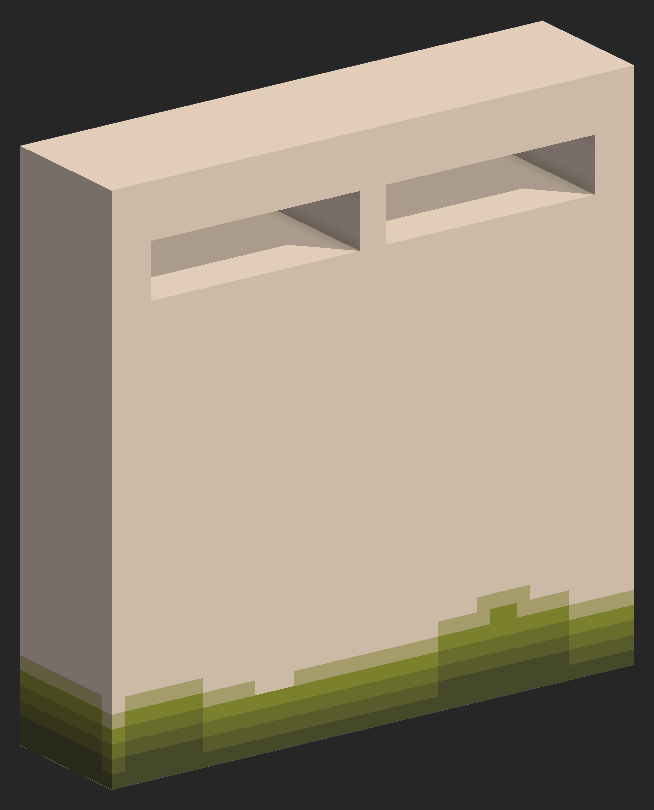

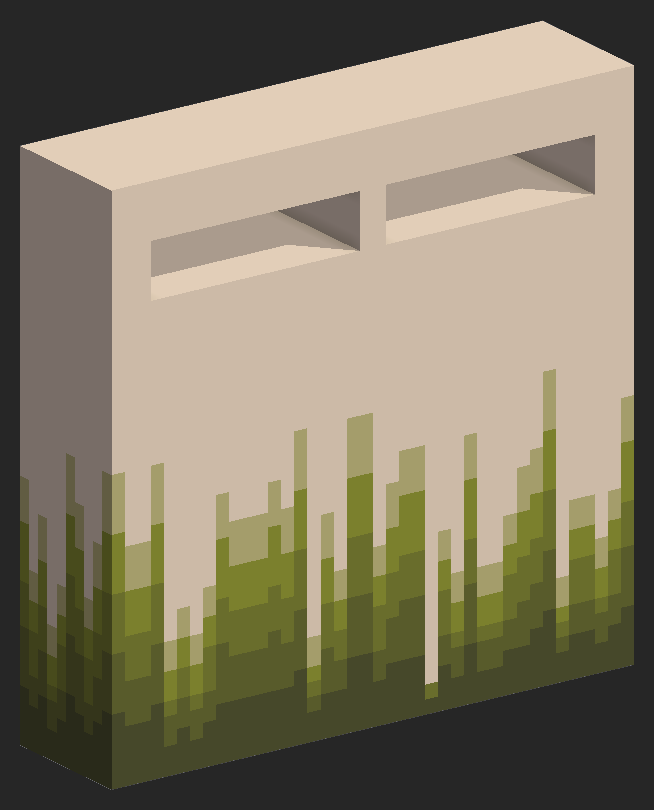

Min Length 4 Max Length 8	Min Length 12 Max Length 24	Min Length 2 Max Length 40

Jitter

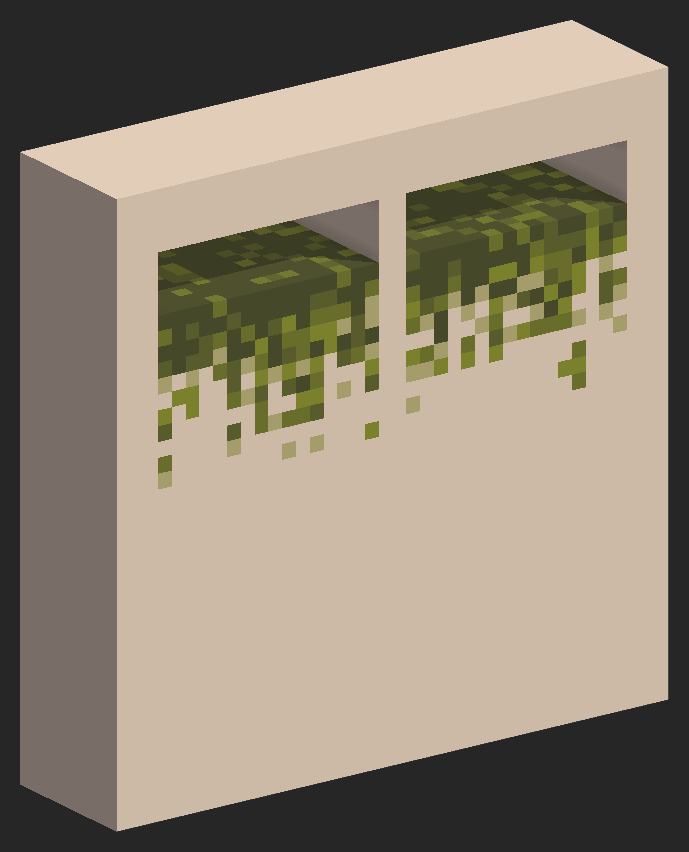

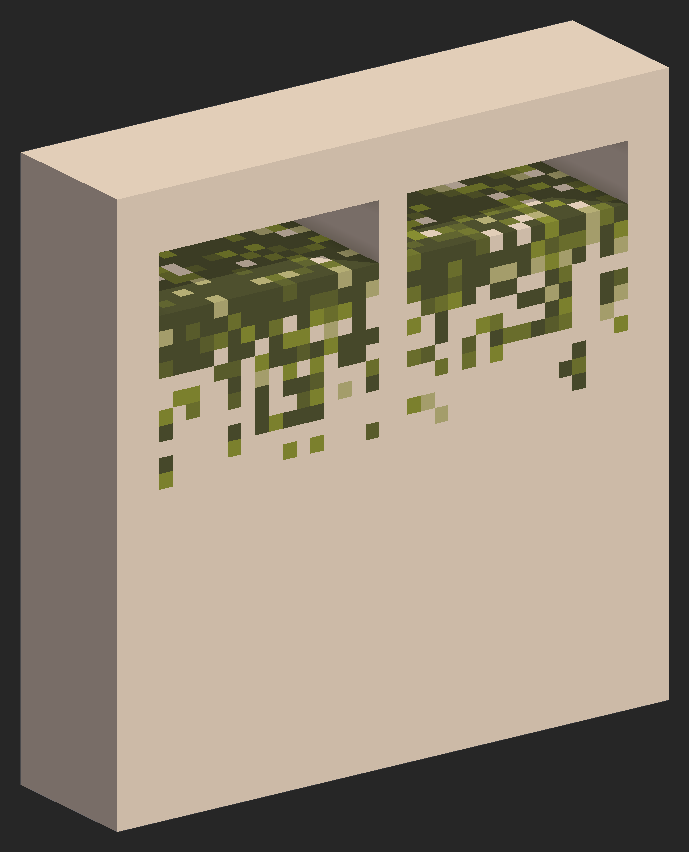

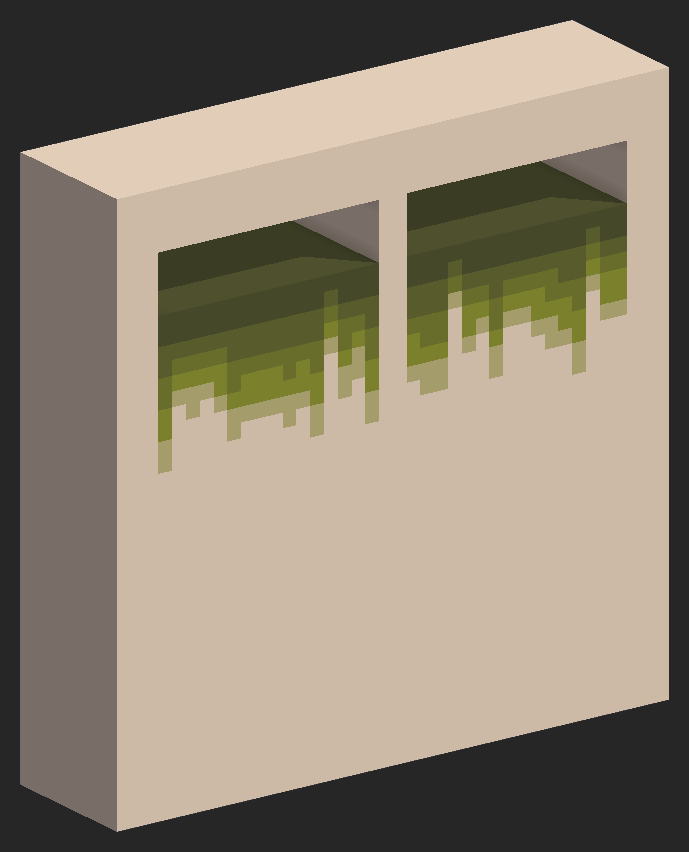

Jitter: 0	Jitter: 5	Jitter: 10
