ProSnippets Renderer
Language: C#
Subject: Renderer
Contributor: ArcGIS Pro SDK Team <[email protected]>
Organization: Esri, http://www.esri.com
Date: 11/7/2025
ArcGIS Pro: 3.6
Visual Studio: 2022
Renders a feature layer using Pie chart symbols to represent data
//Check feature layer name
//Code works with the USDemographics feature layer available with the ArcGIS Pro SDK Sample data
var featureLayer = MapView.Active.Map.GetLayersAsFlattenedList().OfType<FeatureLayer>().FirstOrDefault(f => f.Name == "USDemographics");
if (featureLayer == null)
{
MessageBox.Show("This renderer works with the USDemographics feature layer available with the ArcGIS Pro SDK Sample data", "Data missing");
}
//Note: Run within a QueuedTask
//Fields to use for the pie chart slices
var chartFields = new List<string>
{
"WHITE10",
"BLACK10",
"AMERIND10",
"ASIAN10",
"HISPPOP10",
"HAMERIND10",
"HWHITE10",
"HASIAN10",
"HPACIFIC10",
"HBLACK10",
"HOTHRACE10"
};
PieChartRendererDefinition pieChartRendererDefn = new PieChartRendererDefinition()
{
ChartFields = chartFields,
ColorRamp = colorRamp,
SizeOption = PieChartSizeOptions.Field,
FieldName = "BLACK10",
FixedSize = 36.89,
DisplayIn3D = true,
ShowOutline = true,
Orientation = PieChartOrientation.CounterClockwise,
};
//Creates a "Renderer"
var pieChartRenderer = featureLayer.CreateRenderer(pieChartRendererDefn);
//Sets the renderer to the feature layer
featureLayer.SetRenderer(pieChartRenderer);Renders a feature layer using Bar chart symbols to represent data
//Check feature layer name
//Code works with the USDemographics feature layer available with the ArcGIS Pro SDK Sample data
var featureLayer = MapView.Active.Map.GetLayersAsFlattenedList().OfType<FeatureLayer>().FirstOrDefault(f => f.Name == "USDemographics");
if (featureLayer == null)
{
MessageBox.Show("This renderer works with the USDemographics feature layer available with the ArcGIS Pro SDK Sample data", "Data missing");
}
var chartFields = new List<string>
{
"WHITE10",
"BLACK10",
"AMERIND10",
"ASIAN10",
"HISPPOP10",
"HAMERIND10",
"HWHITE10",
"HASIAN10",
"HPACIFIC10",
"HBLACK10",
"HOTHRACE10"
};
//Note: Run within QueuedTask
BarChartRendererDefinition barChartRendererDefn = new BarChartRendererDefinition()
{
ChartFields = chartFields,
BarWidth = 12,
BarSpacing = 1,
MaximumBarLength = 65,
Orientation = ChartOrientation.Vertical,
DisplayIn3D = true,
ShowAxes = true,
ColorRamp = colorRamp
};
//Creates a "Renderer"
var barChartChartRenderer = featureLayer.CreateRenderer(barChartRendererDefn);
//Sets the renderer to the feature layer
featureLayer.SetRenderer(barChartChartRenderer);Renders a feature layer using stacked bar chart symbols to represent data
//Check feature layer name
//Code works with the USDemographics feature layer available with the ArcGIS Pro SDK Sample data
var featureLayer = MapView.Active.Map.GetLayersAsFlattenedList().OfType<FeatureLayer>().FirstOrDefault(f => f.Name == "USDemographics");
if (featureLayer == null)
{
MessageBox.Show("This renderer works with the USDemographics feature layer available with the ArcGIS Pro SDK Sample data", "Data missing");
}
var chartFields = new List<string>
{
"WHITE10",
"BLACK10",
"AMERIND10",
"ASIAN10",
"HISPPOP10",
"HAMERIND10",
"HWHITE10",
"HASIAN10",
"HPACIFIC10",
"HBLACK10",
"HOTHRACE10"
};
StackedChartRendererDefinition barChartpieChartRendererDefn = new StackedChartRendererDefinition()
{
ChartFields = chartFields,
SizeOption = StackChartSizeOptions.SumSelectedFields,
Orientation = ChartOrientation.Horizontal,
ShowOutline = true,
DisplayIn3D = true,
StackWidth = 8,
StackLength = 25.87,
ColorRamp = colorRamp
};
//Note: Run within QueuedTask
//Creates a "Renderer"
var stackedBarChartChartRenderer = featureLayer.CreateRenderer(barChartpieChartRendererDefn);
//Sets the renderer to the feature layer
featureLayer.SetRenderer(stackedBarChartChartRenderer);Renders a feature layer using graduated colors to draw quantities.
//Check feature layer name
//Code works with the USDemographics feature layer available with the ArcGIS Pro SDK Sample data
var featureLayer = MapView.Active.Map.GetLayersAsFlattenedList().OfType<FeatureLayer>().FirstOrDefault(f => f.Name == "USDemographics");
if (featureLayer == null)
{
MessageBox.Show("This renderer works with the USDemographics feature layer available with the ArcGIS Pro SDK Sample data", "Data missing");
}
GraduatedColorsRendererDefinition gcDef = new GraduatedColorsRendererDefinition()
{
ClassificationField = "NumericFieldInFeatureLayer",
ClassificationMethod = ClassificationMethod.NaturalBreaks,
BreakCount = 5,
ColorRamp = colorRamp,
};
//Note: Run within QueuedTask
CIMClassBreaksRenderer renderer = (CIMClassBreaksRenderer)featureLayer.CreateRenderer(gcDef);
featureLayer?.SetRenderer(renderer);Renders a feature layer using graduated colors to draw quantities. The outline width is varied based on attributes.
//Check feature layer name
//Code works with the USDemographics feature layer available with the ArcGIS Pro SDK Sample data
var featureLayer = MapView.Active.Map.GetLayersAsFlattenedList().OfType<FeatureLayer>().FirstOrDefault(f => f.Name == "USDemographics");
if (featureLayer == null)
{
MessageBox.Show("This renderer works with the USDemographics feature layer available with the ArcGIS Pro SDK Sample data", "Data missing");
}
//Gets the first numeric field of the feature layer
var firstNumericFieldOfFeatureLayer = "NumericFieldInFeatureLayer";
//Gets the min and max value of the field
var minMax = GetFieldMinMax(featureLayer, firstNumericFieldOfFeatureLayer);
GraduatedColorsRendererDefinition gcDef = new GraduatedColorsRendererDefinition()
{
ClassificationField = "NumericFieldInFeatureLayer",
ClassificationMethod = ClassificationMethod.NaturalBreaks,
BreakCount = 5,
ColorRamp = colorRamp
};
CIMClassBreaksRenderer renderer = (CIMClassBreaksRenderer)featureLayer.CreateRenderer(gcDef);
//Create array of CIMVisualVariables to hold the outline information.
var visualVariables = new CIMVisualVariable[] {
new CIMSizeVisualVariable
{
ValueExpressionInfo = new CIMExpressionInfo
{
Title = "Custom",
Expression = "$feature.AREA",
ReturnType = ExpressionReturnType.Default
},
AuthoringInfo = new CIMVisualVariableAuthoringInfo
{
MinSliderValue = Convert.ToDouble(minMax.Item1),
MaxSliderValue = Convert.ToDouble(minMax.Item2),
ShowLegend = false,
Heading = firstNumericFieldOfFeatureLayer
},
VariableType = SizeVisualVariableType.Graduated,
Target = "outline",
MinSize = 1,
MaxSize = 13,
MinValue = Convert.ToDouble(minMax.Item1),
MaxValue = Convert.ToDouble(minMax.Item2)
},
};
renderer.VisualVariables = visualVariables;
//Note: Run within QueuedTask

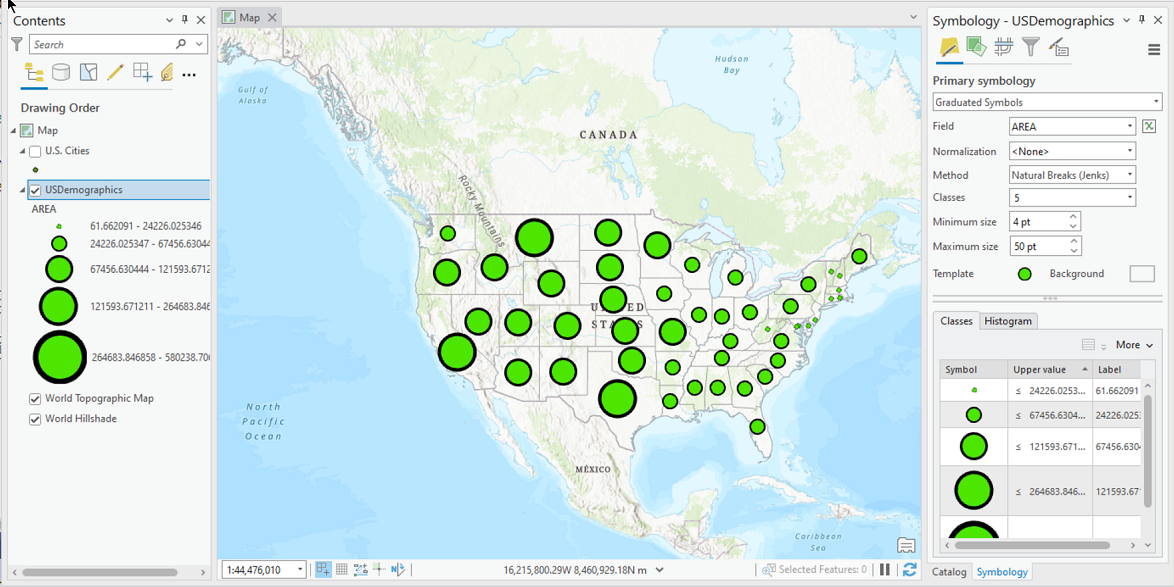

featureLayer?.SetRenderer(renderer);Renders a feature layer using graduated symbols and natural breaks to draw quantities.
//Check feature layer name
//Code works with the USDemographics feature layer available with the ArcGIS Pro SDK Sample data
var featureLayer = MapView.Active.Map.GetLayersAsFlattenedList().OfType<FeatureLayer>().FirstOrDefault(f => f.Name == "USDemographics");
if (featureLayer == null)
{
MessageBox.Show("This renderer works with the USDemographics feature layer available with the ArcGIS Pro SDK Sample data", "Data missing");
}
GraduatedSymbolsRendererDefinition gsDef = new GraduatedSymbolsRendererDefinition()
{
ClassificationField = "NumericFieldInFeatureLayer", //getting the first numeric field
ClassificationMethod = ClassificationMethod.NaturalBreaks,
SymbolTemplate = SymbolFactory.Instance.ConstructPointSymbol(CIMColor.CreateRGBColor(76, 230, 0)).MakeSymbolReference(),
MinimumSymbolSize = 4,
MaximumSymbolSize = 50,
BreakCount = 5,
ColorRamp = colorRamp, //getting a color ramp
};
//Note: Run within QueuedTask
CIMClassBreaksRenderer renderer = (CIMClassBreaksRenderer)featureLayer.CreateRenderer(gsDef);
featureLayer?.SetRenderer(renderer);Renders a feature layer using an unclassed color gradient.
//Check feature layer name
//Code works with the USDemographics feature layer available with the ArcGIS Pro SDK Sample data
var featureLayer = MapView.Active.Map.GetLayersAsFlattenedList().OfType<FeatureLayer>().FirstOrDefault(f => f.Name == "U.S. National Transportation Atlas Interstate Highways");
if (featureLayer == null)
{
MessageBox.Show("This renderer works with the U.S. National Transportation Atlas Interstate Highways feature layer available with the ArcGIS Pro SDK Sample data", "Data missing");
}
//Gets the first numeric field of the feature layer
var firstNumericFieldOfFeatureLayer = "NumericFieldInFeatureLayer";
//Gets the min and max value of the field
//Refer to the GetFieldMinMax function below
var labels = GetFieldMinMax(featureLayer, firstNumericFieldOfFeatureLayer);
UnclassedColorsRendererDefinition ucDef = new UnclassedColorsRendererDefinition()
{
Field = firstNumericFieldOfFeatureLayer,
ColorRamp = colorRamp,
LowerColorStop = Convert.ToDouble(labels.Item1),
UpperColorStop = Convert.ToDouble(labels.Item2),
UpperLabel = labels.Item2,
LowerLabel = labels.Item1,
};
//Note: Run within QueuedTask
CIMClassBreaksRenderer renderer = (CIMClassBreaksRenderer)featureLayer.CreateRenderer(ucDef);
featureLayer?.SetRenderer(renderer);Renders a feature layer using graduated colors and manual intervals to draw quantities.
//Check feature layer name
//Code works with the USDemographics feature layer available with the ArcGIS Pro SDK Sample data
var featureLayer = MapView.Active.Map.GetLayersAsFlattenedList().OfType<FeatureLayer>().FirstOrDefault(f => f.Name == "USDemographics");
if (featureLayer == null)
{
MessageBox.Show("This renderer works with the USDemographics feature layer available with the ArcGIS Pro SDK Sample data", "Data missing");
}
//Change these class breaks to be appropriate for your data. These class breaks defined below apply to the US States feature class
List<CIMClassBreak> listClassBreaks = new List<CIMClassBreak>
{
new CIMClassBreak
{
Symbol = SymbolFactory.Instance.ConstructPolygonSymbol(ColorFactory.Instance.RedRGB).MakeSymbolReference(),
UpperBound = 24228
},
new CIMClassBreak
{
Symbol = SymbolFactory.Instance.ConstructPolygonSymbol(ColorFactory.Instance.GreenRGB).MakeSymbolReference(),
UpperBound = 67290
},
new CIMClassBreak
{
Symbol = SymbolFactory.Instance.ConstructPolygonSymbol(ColorFactory.Instance.BlueRGB).MakeSymbolReference(),
UpperBound = 121757
},
new CIMClassBreak
{
Symbol = SymbolFactory.Instance.ConstructPolygonSymbol(ColorFactory.Instance.GreyRGB).MakeSymbolReference(),
UpperBound = 264435
},
new CIMClassBreak
{
Symbol = SymbolFactory.Instance.ConstructPolygonSymbol(ColorFactory.Instance.WhiteRGB).MakeSymbolReference(),
UpperBound = 576594
}
};
CIMClassBreaksRenderer cimClassBreakRenderer = new CIMClassBreaksRenderer
{
ClassBreakType = ClassBreakType.GraduatedColor,
ClassificationMethod = ClassificationMethod.Manual,
Field = "NumericFieldInLayer",
//Important to add the Minimum break for your data to be classified correctly.
//This is vital especially if you have data with negative values.
//MinimumBreak =
Breaks = listClassBreaks.ToArray()
};
//Note: Run within QueuedTask
featureLayer?.SetRenderer(cimClassBreakRenderer);Renders a polygon feature layer with Dot Density symbols to represent quantities.
//Check feature layer name
//Code works with the USDemographics feature layer available with the ArcGIS Pro SDK Sample data
var featureLayer = MapView.Active.Map.GetLayersAsFlattenedList().OfType<FeatureLayer>().FirstOrDefault(f => f.Name == "USDemographics");
if (featureLayer == null)
{
MessageBox.Show("This renderer works with the USDemographics feature layer available with the ArcGIS Pro SDK Sample data", "Data missing");
}
//Define size of the dot to use for the renderer
int dotSize = 3;
//Check if the TOTPOP10 field exists
int idxField = -1;
using (var table = featureLayer.GetTable())
{
var def = table.GetDefinition();
idxField = def.FindField("TOTPOP10");
}
// "TOTPOP10" field was not found
if (idxField == -1)
return;
//array of fields to be represented in the renderer
var valueFields = new List<string> { "TOTPOP10" };
//Note: Run within QueuedTask
//Create the DotDensityRendererDefinition object
var dotDensityDef = new DotDensityRendererDefinition(valueFields, colorRamp,
dotSize, 30000, "Dot", "people");
//Create the renderer using the DotDensityRendererDefinition
CIMDotDensityRenderer dotDensityRndr = (CIMDotDensityRenderer)featureLayer.CreateRenderer(dotDensityDef);
//if you want to customize the dot symbol for the renderer, create a "DotDensitySymbol" which is an
//Amalgamation of 3 symbol layers: CIMVectorMarker, CIMSolidFill and CIMSolidStroke
//Define CIMVectorMarker layer
var cimMarker = SymbolFactory.Instance.ConstructMarker(ColorFactory.Instance.RedRGB, dotSize);
var dotDensityMarker = cimMarker as CIMVectorMarker;
//Define the placement
CIMMarkerPlacementInsidePolygon markerPlacement = new CIMMarkerPlacementInsidePolygon { Randomness = 100, GridType = PlacementGridType.RandomFixedQuantity, Clipping = PlacementClip.RemoveIfCenterOutsideBoundary };
dotDensityMarker.MarkerPlacement = markerPlacement;
//Define CIMSolidFill layer
CIMSolidFill solidFill = new CIMSolidFill { Color = new CIMRGBColor { R = 249, G = 232, B = 189, Alpha = 50 } };
//Define CIMSolidStroke
CIMSolidStroke solidStroke = new CIMSolidStroke { Color = ColorFactory.Instance.GreyRGB, Width = .5 };
//Create the amalgamated CIMPolygonSymbol that includes the 3 layers
var dotDensitySymbol = new CIMPolygonSymbol
{
SymbolLayers = new CIMSymbolLayer[] { dotDensityMarker, solidFill, solidStroke }
};
//Apply the dotDensitySymbol to the CIMDotDenstityRenderer's DotDensitySymbol property.
dotDensityRndr.DotDensitySymbol = dotDensitySymbol.MakeSymbolReference();
//Apply the renderer to the polygon Feature Layer.

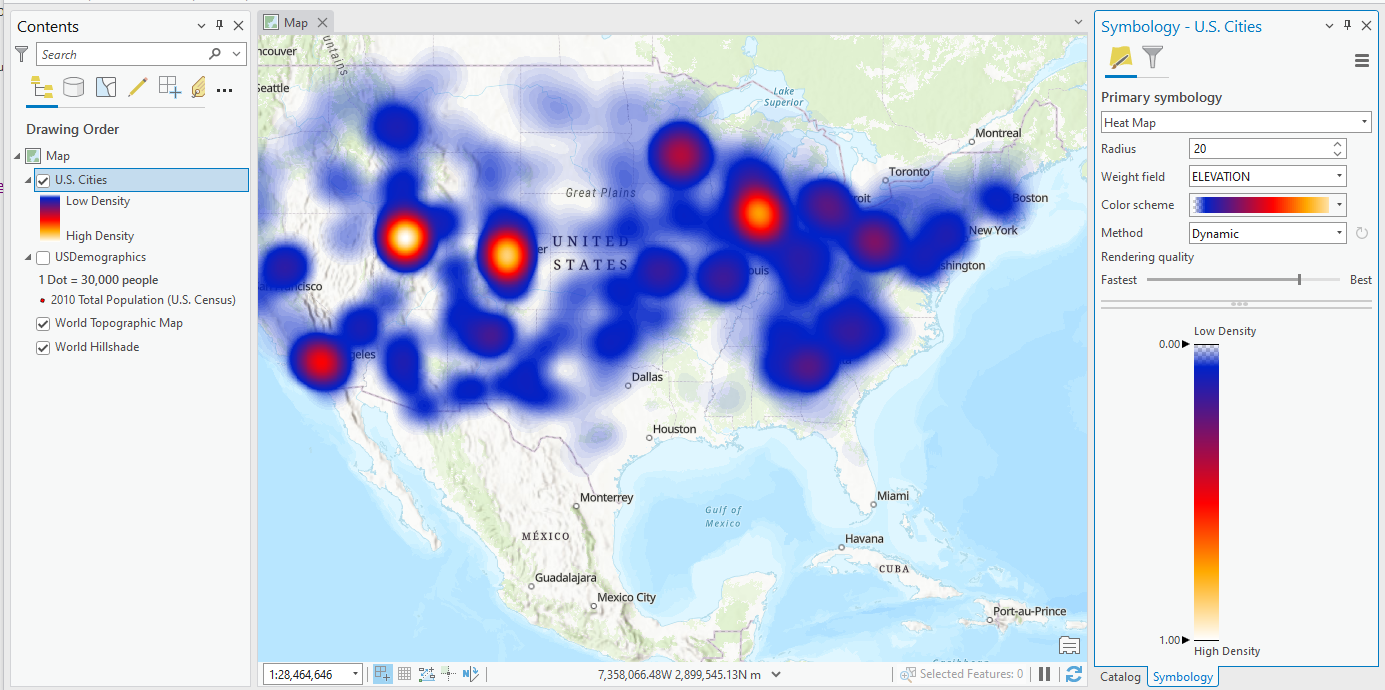

featureLayer.SetRenderer(dotDensityRndr);Renders a point feature layer using a continuous color gradient to represent density of points.
//Check feature layer name
//Code works with the U.S. Cities feature layer available with the ArcGIS Pro SDK Sample data
var featureLayer = MapView.Active.Map.GetLayersAsFlattenedList().OfType<FeatureLayer>().FirstOrDefault(f => f.Name == "U.S. Cities");
if (featureLayer == null)
{
MessageBox.Show("This renderer works with the U.S. Cities feature layer available with the ArcGIS Pro SDK Sample data", "Data missing");
}
//defining a heatmap renderer that uses values from Population field as the weights
HeatMapRendererDefinition heatMapDef = new HeatMapRendererDefinition()
{
Radius = 20,
WeightField = "NumericField",
ColorRamp = colorRamp,
RendereringQuality = 8,
UpperLabel = "High Density",
LowerLabel = "Low Density"
};
//Note: Run within QueuedTask
CIMHeatMapRenderer heatMapRndr = (CIMHeatMapRenderer)featureLayer.CreateRenderer(heatMapDef);
featureLayer.SetRenderer(heatMapRndr);Renders a feature layer using proportional symbols to draw quantities.
//Check feature layer name
//Code works with the USDemographics feature layer available with the ArcGIS Pro SDK Sample data
var featureLayer = MapView.Active.Map.GetLayersAsFlattenedList().OfType<FeatureLayer>().FirstOrDefault(f => f.Name == "USDemographics");
if (featureLayer == null)
{
MessageBox.Show("This renderer works with the USDemographics feature layer available with the ArcGIS Pro SDK Sample data", "Data missing");
}
//Gets the first numeric field of the feature layer
var firstNumericFieldOfFeatureLayer = "NumericFieldInLayer";
//Gets the min and max value of the field
var sizes = GetFieldMinMax(featureLayer, firstNumericFieldOfFeatureLayer);
ProportionalRendererDefinition prDef = new ProportionalRendererDefinition()
{
Field = firstNumericFieldOfFeatureLayer,
MinimumSymbolSize = 4,
MaximumSymbolSize = 50,
LowerSizeStop = Convert.ToDouble(sizes.Item1),
UpperSizeStop = Convert.ToDouble(sizes.Item2)
};
//Note: Run within QueuedTask
CIMProportionalRenderer propRndr = (CIMProportionalRenderer)featureLayer.CreateRenderer(prDef);
featureLayer.SetRenderer(propRndr);Renders a Polygon feature layer using a single symbol.
//Check feature layer name
//Code works with the USDemographics feature layer available with the ArcGIS Pro SDK Sample data
var featureLayer = MapView.Active.Map.GetLayersAsFlattenedList().OfType<FeatureLayer>().FirstOrDefault(f => f.Name == "USDemographics");
if (featureLayer == null)
{
MessageBox.Show("This renderer works with the USDemographics feature layer available with the ArcGIS Pro SDK Sample data", "Data missing");
}
//Creating a polygon with a red fill and blue outline.
CIMStroke outline = SymbolFactory.Instance.ConstructStroke(
ColorFactory.Instance.BlueRGB, 2.0, SimpleLineStyle.Solid);
CIMPolygonSymbol fillWithOutline = SymbolFactory.Instance.ConstructPolygonSymbol(
ColorFactory.Instance.CreateRGBColor(255, 190, 190), SimpleFillStyle.Solid, outline);
//Get the layer's current renderer
//Note: Run within QueuedTask
CIMSimpleRenderer renderer = featureLayer.GetRenderer() as CIMSimpleRenderer;
//Update the symbol of the current simple renderer
renderer.Symbol = fillWithOutline.MakeSymbolReference();
//Update the feature layer renderer

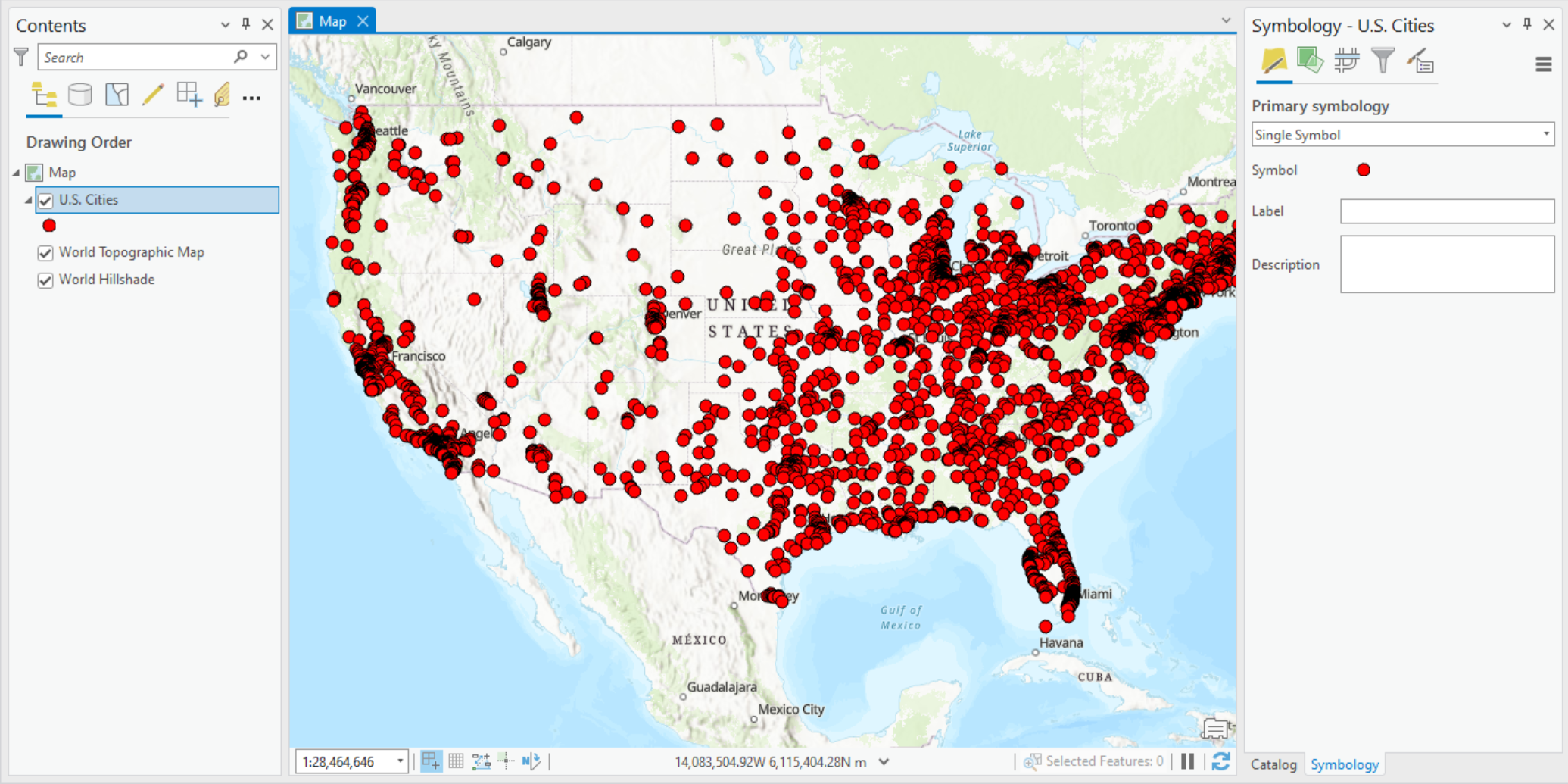

featureLayer.SetRenderer(renderer);Renders a Point feature layer using a single symbol.
//Check feature layer name
//Code works with the USDemographics feature layer available with the ArcGIS Pro SDK Sample data
var featureLayer = MapView.Active.Map.GetLayersAsFlattenedList().OfType<FeatureLayer>().FirstOrDefault(f => f.ShapeType == esriGeometryType.esriGeometryPoint);
if (featureLayer == null)
{
MessageBox.Show("This renderer works with a point feature layer", "Data missing");
}
//Create a circle marker
var pointSymbol = SymbolFactory.Instance.ConstructPointSymbol(ColorFactory.Instance.RedRGB, 8, SimpleMarkerStyle.Circle);
//Get the layer's current renderer
//Note: Run within QueuedTask
CIMSimpleRenderer renderer = featureLayer.GetRenderer() as CIMSimpleRenderer;
//Update the symbol of the current simple renderer
renderer.Symbol = pointSymbol.MakeSymbolReference();
//Update the feature layer renderer

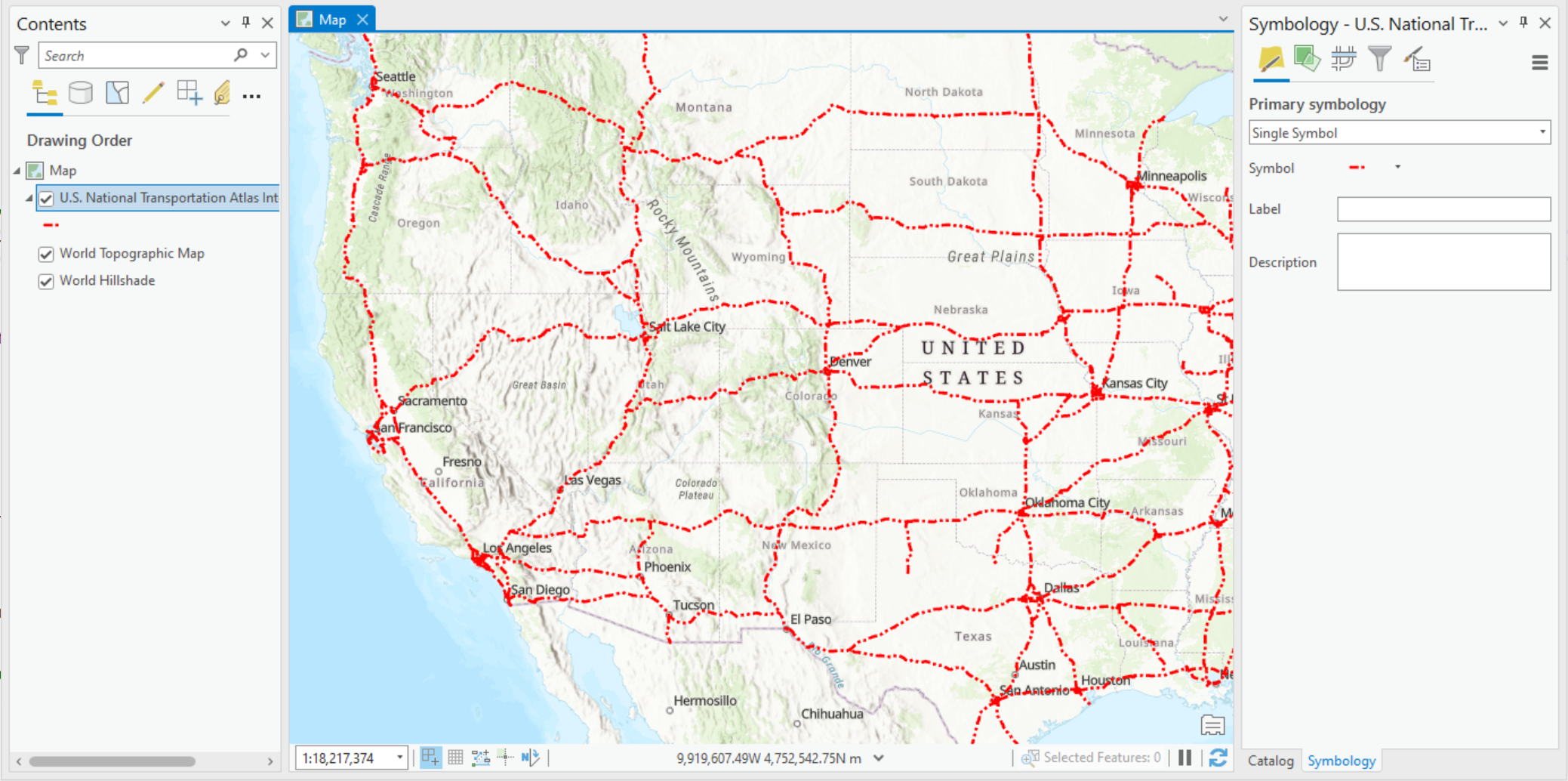

featureLayer.SetRenderer(renderer);Renders a Line feature layer using a single symbol.
//Check feature layer name
//Code works with the USDemographics feature layer available with the ArcGIS Pro SDK Sample data
var featureLayer = MapView.Active.Map.GetLayersAsFlattenedList().OfType<FeatureLayer>().FirstOrDefault(f => f.Name == "U.S. National Transportation Atlas Interstate Highways");
if (featureLayer == null)
{
MessageBox.Show("This renderer works with the U.S. National Transportation Atlas Interstate Highways feature layer available with the ArcGIS Pro SDK Sample data", "Data missing");
}
//Create a circle marker
var lineSymbol = SymbolFactory.Instance.ConstructLineSymbol(ColorFactory.Instance.RedRGB, 2, SimpleLineStyle.DashDotDot);
//Get the layer's current renderer
//Note: Run within QueuedTask
CIMSimpleRenderer renderer = featureLayer.GetRenderer() as CIMSimpleRenderer;
//Update the symbol of the current simple renderer
renderer.Symbol = lineSymbol.MakeSymbolReference();
//Update the feature layer renderer

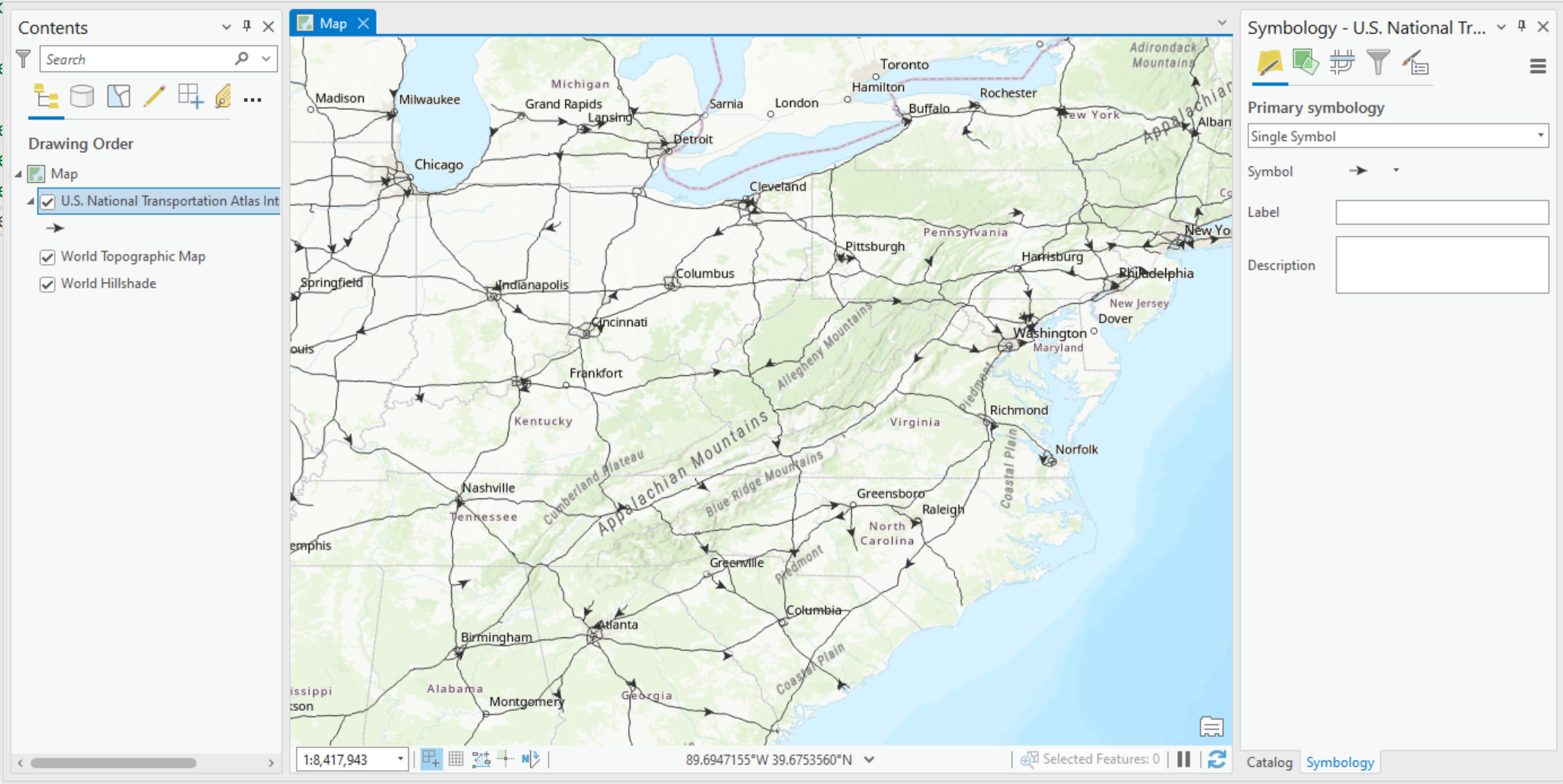

featureLayer.SetRenderer(renderer);Renders a Line feature layer using a style from a StyleProjectItem.
//Check feature layer name
//Code works with the USDemographics feature layer available with the ArcGIS Pro SDK Sample data
var featureLayer = MapView.Active.Map.GetLayersAsFlattenedList().OfType<FeatureLayer>().FirstOrDefault(f => f.Name == "U.S. National Transportation Atlas Interstate Highways");
if (featureLayer == null)
{
MessageBox.Show("This renderer works with the U.S. National Transportation Atlas Interstate Highways feature layer available with the ArcGIS Pro SDK Sample data", "Data missing");
}
//Get all styles in the project
var styleProjectItem2D = Project.Current.GetItems<StyleProjectItem>().FirstOrDefault(s => s.Name == "ArcGIS 2D");
//Get a specific style in the project by name
var arrowLineSymbol = styleProjectItem2D.SearchSymbols(StyleItemType.LineSymbol, "Arrow Line 2 (Mid)")[0];
if (arrowLineSymbol == null) return;
//Note: Run within QueuedTask
//Get the layer's current renderer
var renderer = featureLayer?.GetRenderer() as CIMSimpleRenderer;
//Update the symbol of the current simple renderer
renderer.Symbol = arrowLineSymbol.Symbol.MakeSymbolReference();
//Update the feature layer renderer

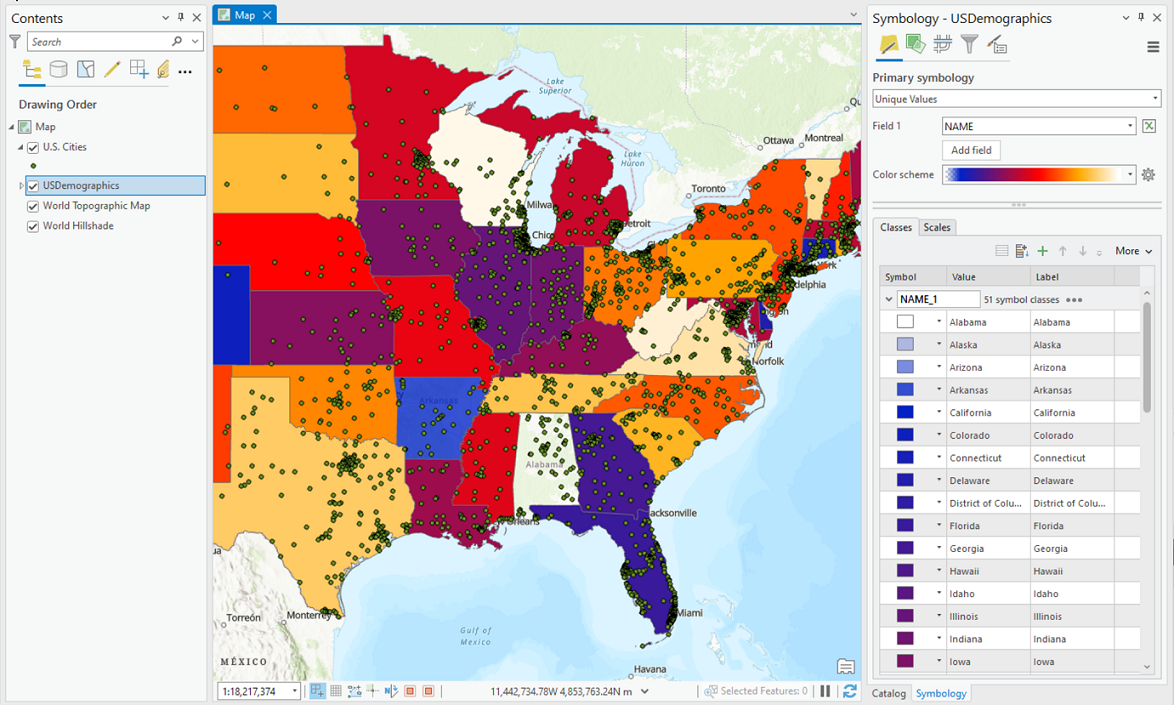

featureLayer.SetRenderer(renderer);Renders a feature layer using unique values from one or multiple fields
//Check feature layer name
//Code works with the USDemographics feature layer available with the ArcGIS Pro SDK Sample data
var featureLayer = MapView.Active.Map.GetLayersAsFlattenedList().OfType<FeatureLayer>().FirstOrDefault(f => f.Name == "USDemographics");
if (featureLayer == null)
{
MessageBox.Show("This renderer works with the USDemographics feature layer available with the ArcGIS Pro SDK Sample data", "Data missing");
}
//construct unique value renderer definition
UniqueValueRendererDefinition uvr = new
UniqueValueRendererDefinition()
{
//Refer to the function below to get a display field of the feature layer
ValueFields = new List<string> { GetDisplayField(featureLayer) }, //multiple fields in the array if needed.
ColorRamp = colorRamp, //Specify color ramp
};
//Creates a "Renderer"
var cimRenderer = featureLayer.CreateRenderer(uvr);
//Sets the renderer to the feature layer
featureLayer.SetRenderer(cimRenderer);
//Function to get the display field of a feature layer
static string GetDisplayField(FeatureLayer featureLayer)
{
// get the CIM definition from the layer
var cimFeatureDefinition = featureLayer.GetDefinition() as ArcGIS.Core.CIM.CIMBasicFeatureLayer;
// get the view of the source table underlying the layer
var cimDisplayTable = cimFeatureDefinition.FeatureTable;
// this field is used as the 'label' to represent the row
return cimDisplayTable.DisplayField;
}//Function to get the min and max value of a field in a feature layer
static Tuple<string, string> GetFieldMinMax(FeatureLayer featureLayer, string fieldName)
{
//Get the file gdb from the feature layer
var tableDef = featureLayer.GetTable().GetDefinition();
var fields = tableDef.GetFields();
//var fieldName = fields[2].Name;
//var field = tableDef.GetFields().First(f => f.Name == "FID_1");
QueryFilter queryFilter = new QueryFilter()
{
WhereClause = "1 = 1",
};
using (var rowCursor = featureLayer.Search(queryFilter))
{
long iMin = -1;
long iMax = -1;
while (rowCursor.MoveNext())
{
using (Row currentRow = rowCursor.Current)
{
var iVal = Convert.ToInt64(currentRow[fieldName]);
if ((iMin > iVal) || (iMin == -1))
iMin = iVal;
if ((iMax < iVal) || (iMax == -1))
iMax = iVal;
}
}
return new Tuple<string, string>(iMin.ToString(), iMax.ToString());
}
}
